Hello Michael, I just followed your advice and these are my observations: Without understanding the details under the hood I noticed that the 2nd argument reads in both cases

{s, r}

Wouldn't you expect that it is {s,r} in one case and {r,s} in the other case if no lexigraphical ordering is involved? r and s are just lables for slots, so why is the slot sequence being changed?

@ Michael Rodgers: "Changing the variables changes the columns in the matrix" is only true if the algorithm that the solver is using relies at some point on the lexicalgraphical order of the variable names. Otherwise ist is just names.

Changing the variables changes the columns in the matrix, causing different rounding error in the LU decomposition. In the "successful" code, the matrix is computed to be singular, which Solve then handles. In the unsuccessful way, the rounding produces an inconsistent system (hence no solution).

With an overdetermined system with approximate coefficients, it is best to use LinearSolve or LeastSquares and check the residual.

{b, mat} = CoefficientArrays[{
    59.5` + 0.1845` s == 60 + 0.18125` r,
    -100 + 1.44` s == -100 + 1.45` r,
    50 - 0.36` s == 50 - 0.3625` r}, {s, r}];

LinearSolve[Normal@mat, -b]
(*  {111.1111111111137, 110.3448275862095}  *)

    LUDecomposition[Transpose@Append[Transpose@mat, b]]

LUDecomposition::luc: Result for LUDecomposition of badly conditioned matrix {{0.1845,-0.18125,-0.5},{1.44,-1.45,0.},{-0.36,0.3625,0.}} may contain significant numerical errors.

(*
  {{{1.44, -1.45, 0.}, {0.128125, 0.004531249999999987, -0.5},
   {-0.25, 1.225073682345004*10^-14, 6.125368411725019*10^-15}}, {2, 1, 3},
   6.552893832811133*10^16}
*)

Switching the order of the variables {r, s} in the second argument is equivalent to switching the variables in the equations.

{b, mat} = CoefficientArrays[{
    59.5` + 0.1845` s ==  60 + 0.18125` r,
    -100 + 1.44` s == -100 + 1.45` r,
    50 - 0.36` s == 50 - 0.3625` r}, {r, s}];

LinearSolve[Normal@mat, -b]
(*  {110.3448275862012, 111.1111111111053}  *)

LUDecomposition[Transpose@Append[Transpose@mat, b]]

LUDecomposition::sing: Matrix {{-0.18125,0.1845,-0.5},{-1.45,1.44,0.},{0.3625,-0.36,0.}} is singular.

(*  {{{-1.45, 1.44, 0.}, {0.125, 0.004500000000000004, -0.5}, {-0.25, 0.,  0.}}, {2, 1, 3}, ?}  *)

The upshot is that Solve is principally a symbolic solver, although it has been extended in recent versions to be more reliable on approximate-numeric problems. One would think NSolve would be the next thing to try, but it has the same problem. (Perhaps Solve calls NSolve. However on numerical linear systems, LinearSolve is a robust tool to use.

Note: Solve[sys // Rationalize] works, too, in this case.

Thanks for the reply and the explanation of NSolve. Some coincidence though. If I hadn't been logged out by the system while I was writing up the answer, I would have posted ten minutes earlier. :)

It has to do with the fact that the system is overdetermined, combined with vagaries of variable ordering and its effect on the underlying linear algebra. The code and commentary below will outline what has happened, with one caveat: it seems that Solve internals might be reordering, because what Solve does is opposite to what we will see from linear algebra based on corresponding variable orderings.

So here is the basic setup.

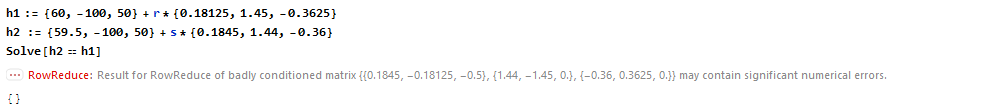

h1 = {60, -100, 50} + r*{0.18125, 1.45, -0.3625};
h2 = {59.5, -100, 50} + s*{0.1845, 1.44, -0.36};
Solve[h1 - h2 == 0, {r, s}]
Solve[h1 - h2 == 0, {s, r}]

(* During evaluation of In[57]:= RowReduce::luc: Result for RowReduce of badly conditioned matrix {{-0.1845,0.18125,0.5},{-1.44,1.45,0.},{0.36,-0.3625,0.}} may contain significant numerical errors. >>

Out[59]= {}

Out[60]= {{s -> 111.111, r -> 110.345}} *)

Now we capture corresponding matrices and use LUDecomposition to see what row reduction will have to say about them.

{rhs, mat} = Normal[CoefficientArrays[h1 - h2, {r, s}]]
newmat = Join[mat, Map[List, -rhs], 2]
LUDecomposition[newmat]

(* Out[51]= {{0.5, 0.,
  0.}, {{0.18125, -0.1845}, {1.45, -1.44}, {-0.3625, 0.36}}}

Out[52]= {{0.18125, -0.1845, -0.5}, {1.45, -1.44, 0.}, {-0.3625, 0.36,
   0.}}

During evaluation of In[51]:= LUDecomposition::sing: Matrix {{0.18125,-0.1845,-0.5},{1.45,-1.44,0.},{-0.3625,0.36,0.}} is singular. >>

Out[53]= {{{1.45, -1.44, 0.}, {0.125, -0.0045, -0.5}, {-0.25, 0.,
   0.}}, {2, 1, 3}, \[Infinity]} *)

The claim that it is singular means augmenting the matrix with the (negated) right-hand-side vector row-reduced in a way that made the rhs vanish. So this case would be solved, even though we had three equations in but two unknowns, because augmenting does not change the rank (that is to say, the rhs is in the span of the first two columns).

In contrast, when we switch the variable ordering we are not quite so lucky. Or luckier, depending on one's point of view, in that we are informed of a numeric instability caused by an overdetermined system.

{rhs2, mat2} = Normal[CoefficientArrays[h1 - h2, {s, r}]]
newmat2 = Join[mat2, Map[List, -rhs2], 2]
LUDecomposition[newmat2]

(* Out[54]= {{0.5, 0.,
  0.}, {{-0.1845, 0.18125}, {-1.44, 1.45}, {0.36, -0.3625}}}

Out[55]= {{-0.1845, 0.18125, -0.5}, {-1.44, 1.45, 0.}, {0.36, -0.3625,
   0.}}

During evaluation of In[54]:= LUDecomposition::luc: Result for LUDecomposition of badly conditioned matrix {{-0.1845,0.18125,-0.5},{-1.44,1.45,0.},{0.36,-0.3625,0.}} may contain significant numerical errors. >>

Out[56]= {{{-1.44, 1.45, 0.}, {0.128125, -0.00453125, -0.5}, {-0.25,
   1.22507*10^-14, 6.12537*10^-15}}, {2, 1, 3}, 6.55289*10^16} *)

Here the matrix is deemed ill-conditioned but not singular, which means the linear algebra does not quite manage to zero out the augmented column. So the rhs is not seen to be in the span of the first two.

Is machine arithmetic linear algebra really hopeless here? Not at all. A function like RowReduce has but limited leeway; it does Gaussian elimination. LinearSolve, by contrast, can use rank-determining technology such as from a singular values decomposition, when handling an overdetermined system. Which is why both cases can be handled by LinearSolve without fuss.

LinearSolve[mat, rhs]

(* Out[64]= {-110.345, -111.111} *)

LinearSolve[mat2, rhs2]

(* Out[65]= {-111.111, -110.345} *)
