Solve a non-linear differential equations system?

GROUPS:

Hey guys, I have some problems with this system of non-linear differential equations. This system is from the Winfree model from his "The Geometry of Biological Time". I'm new with mathematica and I couldn't find a solution yet. Here I post the code I wrote it.

eqns = Table[θ[i]'[t] == RandomInteger[{0, 1}] - (0.65/10) (Cos[θ[i][t]]) (Sin[θ[i][t]]), {i,1, 10}]

NDSolve[{eqns, Table[θ[i][0] == RandomReal[{0, 2}], {i, 1, 10}]}, {t, 10}]

It shows me this message error : "NDSolve::argm: NDSolve called with 2 arguments; 3 or more arguments are expected." Thanks to anyone who will read and help me with it!

POSTED BY: Gabriele Cinci
Answer
4 months ago

Here's a simple example using NDSolve

In[3]:= NDSolve[{x'[t] == y[t], y'[t] == -x[t], x[0] == 0,
  y[0] == 1}, {x, y}, {t, 0, 1}]

Out[3]= {{x -> InterpolatingFunction[{{0., 1.}}, <>],
  y -> InterpolatingFunction[{{0., 1.}}, <>]}}
POSTED BY: Frank Kampas
Answer
4 months ago
eqns = Table[θ[i]'[t] ==  RandomInteger[{0, 1}] - (0.65/10) (Cos[θ[i][t]]) (Sin[θ[i][t]]), {i, 1, 10}];
sol = NDSolve[{eqns, Table[θ[i][0] == RandomReal[{0, 2}], {i, 1, 10}]}, Table[θ[i][t], {i, 1, 10}], {t, 0, 10}];

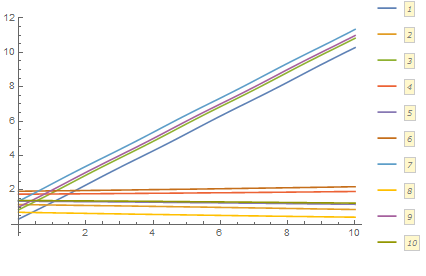

Plot[Evaluate[Table[\[Theta][i][t], {i, 1, 10}] /. sol], {t, 0, 10},PlotLegends -> "Placeholder"]

enter image description here

POSTED BY: Mariusz Iwaniuk
Answer
4 months ago

Thanks to Frank and mostly thanks to you Mariusz for helping me to find a solution. I have another question if you are so kind to listen to it. I would need that the independent variable of the cosine function and the subsequent respect to the variable of more of the same equation sine function, in essence:

Cos[theta[i+1][t]] * Sin[theta[i][t]] or equally Cos[theta[i][t]] * Sin[[i-1][t]]

The main problem in this is that in one case or in the other I will put an extra indipendent variable in the system and the function NDSolve it shows me : "NDSolve::underdet: There are more dependent variables, {[Theta][1][t],[Theta][2][t],[Theta][3][t],[Theta][4][t],[Theta][5][t],[Theta][6][t],[Theta][7][t],[Theta][8][t],[Theta][9][t],[Theta][10][t],[Theta][11][t]}, than equations, so the system is underdetermined."

How can I fix this issue? Thanks again for support!

POSTED BY: Gabriele Cinci
Answer
4 months ago

The code now is this one:

eqns = Table[\[Theta][i]'[t] == RandomInteger[{0,1}] - (0.65/10) (1 +Cos[\[Theta][i + 1][t]]) (Sin[\[Theta][i][t]]), {i, 1, 10}]
sol = NDSolve[{eqns,Table[\[Theta][i][0] == RandomReal[{0, 2}], {i, 1, 10}]}, Table[\[Theta][i][t], {i, 1, 10}], {t, 0, 500}]

Ande the messagge error is this one: "NDSolve::underdet: There are more dependent variables, {[Theta][1][t],[Theta][2][t],[Theta][3][t],[Theta][4][t],[Theta][5][t],[Theta][6][t],[Theta][7][t],[Theta][8][t],[Theta][9][t],[Theta][10][t],[Theta][11][t]}, than equations, so the system is underdetermined.".

That's why I think is probably fault of the last indipendent variable theta[11][t]. Anyway I hope someone will help me again!

POSTED BY: Gabriele Cinci
Answer
4 months ago

You have message error because does not include enough equations to specify a solution. Must add additional equation, for example:

θ[11][t] == 1(*e.g*)

eqns = Table[θ[i]'[t] ==  RandomInteger[{0, 1}] - (0.65/10) (1 + Cos[θ[i + 1][t]]) (Sin[θ[i][t]]), {i, 1, 10}]
sol = NDSolve[{eqns, θ[11][t] == 1, Table[θ[i][0] == RandomReal[{0, 2}], {i, 1, 10}]}, Table[θ[i][t], {i, 1, 10}], {t, 0, 500}]
POSTED BY: Mariusz Iwaniuk
Answer
4 months ago

Thanks again for your answer Mariusz, you were very kind!

At the moment I'm studying another way to implement the model, but I'm having some difficulties. I have to solve this sytem with boundaries conditions on Theta and Omega. For example conditions could be :

theta[i][0]== RandomReal[{0,2}]

omega[i][0]==1 .

The system is attached ad image because I wasn't sure how to type it in the best way possible! PS: k is constant between 0,11 and 0,78 and N is the number of the oscillators.

Thanks again on helping me!

Attachment

Attachments:
POSTED BY: Gabriele Cinci
Answer
4 months ago

I think that it should be, but I'm not sure....

 n = 10;
 m = 10;
 k = 0.65;
 eqns = Table[θ[i]'[t] ==  RandomInteger[{0, 1}] - (k/n) *Sum[(1 + Cos[θ[j][t]]) *Sin[θ[i][t]], {j, 1, n}], {i, 1, m}]
 sol = NDSolve[{eqns, Table[θ[i][0] == RandomReal[{0, 2}], {i, 1, m}]}, Table[θ[i][t], {i, 1, m}], {t, 0, 500}]

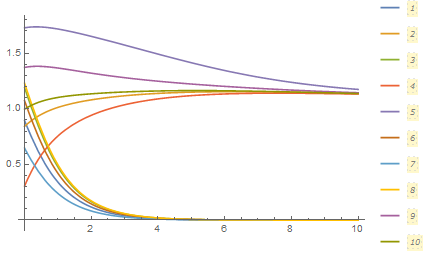

 Plot[Evaluate[Table[\[Theta][i][t], {i, 1, m}] /. sol], {t, 0, 10}, PlotLegends -> "Placeholder"]

enter image description here

POSTED BY: Mariusz Iwaniuk
Answer
4 months ago

Thanks again Mariusz! It works perfectly unitl m=n=200 . I should be test for m=n=1000 . It shows me severals error messages! Another tip if you are not bored of me : If I want to evalute for example all the thetas ( I mean theta[1], theta[2], theta[3], ... , theta[n] ) for a particular value of indipendent variable t , let's say 500, how can I do it? And for only one theta?

Thanks again, hope I'm not annoying you!

POSTED BY: Gabriele Cinci
Answer
4 months ago

@Gabriele Cinci, is it that hard to look up documentation on NDSolve and see how to get the values? First examples there show you need something like

θ[2][500]/. sol

You can even see it from Plot examples of helpful replies by Mariusz. So what are you doing to learn? It seems like you just keep asking questions without any effort to read though documentation.

Please look at the rules of the forum: http://wolfr.am/READ-1ST

Quoting:

Check Documentation for examples relevant to your issue. Do not bluntly solicit for help...

POSTED BY: Sam Carrettie
Answer
4 months ago

Method -> {"EquationSimplification" -> "Residual"} in NDSolve helps.

  n = 300;
  m = 300;
  k = 0.65;
  eqns = Table[θ[i]'[t] == RandomInteger[{0, 1}] - (k/n)*Sum[(1 + Cos[θ[j][t]])*Sin[θ[i][t]], {j, 1, n}], {i, 1, m}];
  sol = First@NDSolve[{eqns, Table[θ[i][0] == RandomReal[{0, 2}], {i, 1, m}]}, Table[θ[i][t], {i, 1, m}], {t, 0, 500},
  Method -> {"EquationSimplification" -> "Residual"}];

For example ,only one theta:

 {θ[299][t]} /. sol /. t -> 500

few theta's:

{θ[1][t], θ[2][t], θ[3][t]} /. sol /. t -> 500

all theta's (n=m=300):

Table[θ[w][t], {w, 1, n}] /. sol /. t -> 500

in Multicolumn format:

Multicolumn[Table[θ[w][t], {w, 1, n}] /. sol /. t -> 500, 10, Frame -> All, Spacings -> {1, 1},
Background -> {Automatic, {{LightOrange, White}}}, Frame -> All, FrameStyle -> White, Alignment -> Center]
POSTED BY: Mariusz Iwaniuk
