[WSC17] Blockchain Visualisation using the Wolfram Language

GROUPS:

Introduction

Hey there! I attended the Wolfram High School Summer Camp this year, where I chose to create a project on Blockchains. And thankfully, with the help of my mentor, Christian Pasquel, I succeeded. Following is a brief description of Blockchains and my project.

What are Blockchains?

In its most basic form, a blockchain is a type of a decentralised database that keeps records of digital transactions. Rather than having a central administrator, a blockchain has a network of identical databases (nodes), kept in sync courtesy of the internet in a peer-to-peer fashion and potentially visible to anyone within the specific network. Also, blockchains can be made to either be private or public, depending on the use. For example, the Bitcoin network is a public blockchain, and the one I present below, is a private one.

“A blockchain is a magic computer that anyone can upload programs to and leave the programs to self-execute, where the current and all previous states of every program are always publicly visible, and which carries a very strong crypto economically secured guarantee that programs running on the chain will continue to execute in exactly the way that the blockchain protocol specifies.”  ~  Vitalik Buterin

A blockchain network's decentralised, open & cryptographic nature allow people to trust each other and transact peer to peer, making the need for intermediaries obsolete. This also brings unprecedented security benefits. Hacking attacks that commonly impact large centralised intermediaries like banks would be very difficult or cost ineffective to pull off on the blockchain. For example  -  if someone wanted to modify a particular confirmed block in a blockchain, a hacker would not only need to attack that specific block, but all of the proceeding blocks going back the entire history and most nodes containing copies of the blockchain, which could be thousands, simultaneously. Not an easy task, by any means.

The Project

Mining

Usually, in blockchains, some nodes crunch data to solve seemingly pointless complicated cryptic problems. For example, in the Bitcoin Blockchain, the problem is to take the hash (using SHA-256) of the data supplied and the previous block' s hash along with a value, called the nonce, such that the new hash has 17 leading zeroes. This pointless problem, i.e. finding the correct nonce, is very taxing on the system used to compute it, and so the node which finds the hash first, earns bitcoins. This process is called Mining.

Now, the code for the Mining function is simple:

While[StringTake[IntegerString[Hash[prevHash<>ToString[data]<>ToString[nonce],"SHA256"],16,64],StringLength[patt]]=!=patt), nonce++;];

Keeping Copies

Now, a blockchain stores copies of the data as files in it's server, which is sent across all nodes. For now, let's stick to the saving part. For this simulation, I save it as a list, which can be easily read with the Wolfram Language. It consists of the number of the node which solved it, the current hash, the nonce, and the data in calculation. But, since we'll have to save many files like these, we need to differentiate them by Timestamp. Here's how we do it:

Save[FileNameJoin[{"/Users/Wolfram/Blockchain \Network/Nodes/1", ToString@UnixTime[]}], Flatten[List[blockNumber, currHash, nonce, data]];]

Importing them back can be done in a similar fashion:

block = ToExpression[Import[Last[FileNames["*", "/Users/Wolfram/Blockchain \Network/Nodes/1"]]]]

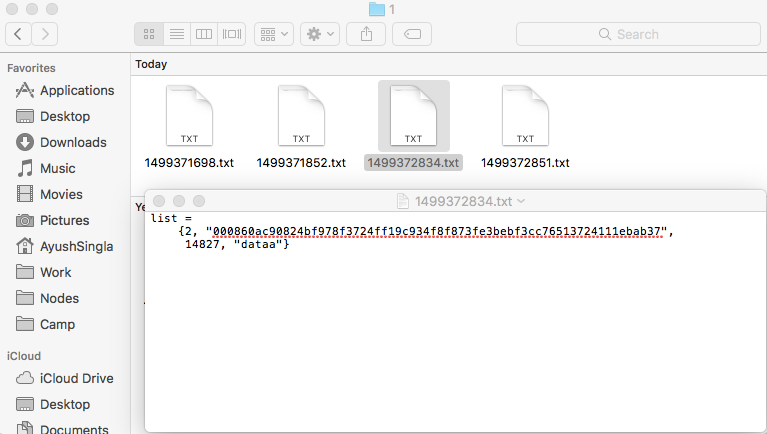

The final result:

File snap

But, while this is all well and good, the following problems rise: how do we make different nodes? How do we get them talk? Where do we get the data from?

Using Kernels

Mathematica provides a clean way to run code in isolated entities - using Kernels. It's easy to make some - Under Evaluation on the menu bar, go to Kernel Configuration Options, and add as many as your license allows! To switch the Notebook's Kernel, there's a Notebook's Kernel option under Evaluation - which does the trick.

Using Channels

Now, we have Kernels - but they still need to talk. Wolfram Language has a Channel Framework built - in, which makes such communications very simple. Using Channels, you can create a connection between the kernels, and also different computers, through which we can send and receive messages which remain in the Wolfram Language format. That means, we can easily send lists over intact, without converting them to and from strings, which makes inter - kernel node communication convenient.

Nodes and Channels in the project

In this project, I used 2 types of nodes, a Computational node and a Guest node. A computational node is the one which does the actual mining, while the Guest Node supplies data to the computational nodes once they're done. Now, we'd need three kinds of channels for the inter - kernel communication - one to send the data from the Guest Nodes to the computational nodes, another to tell the Guest Nodes to send the data, and one more for a computational nodes to tell the others when it's done. Once this was figured out, it was all a matter of compiling the ideas and converting them into code.

The End Result

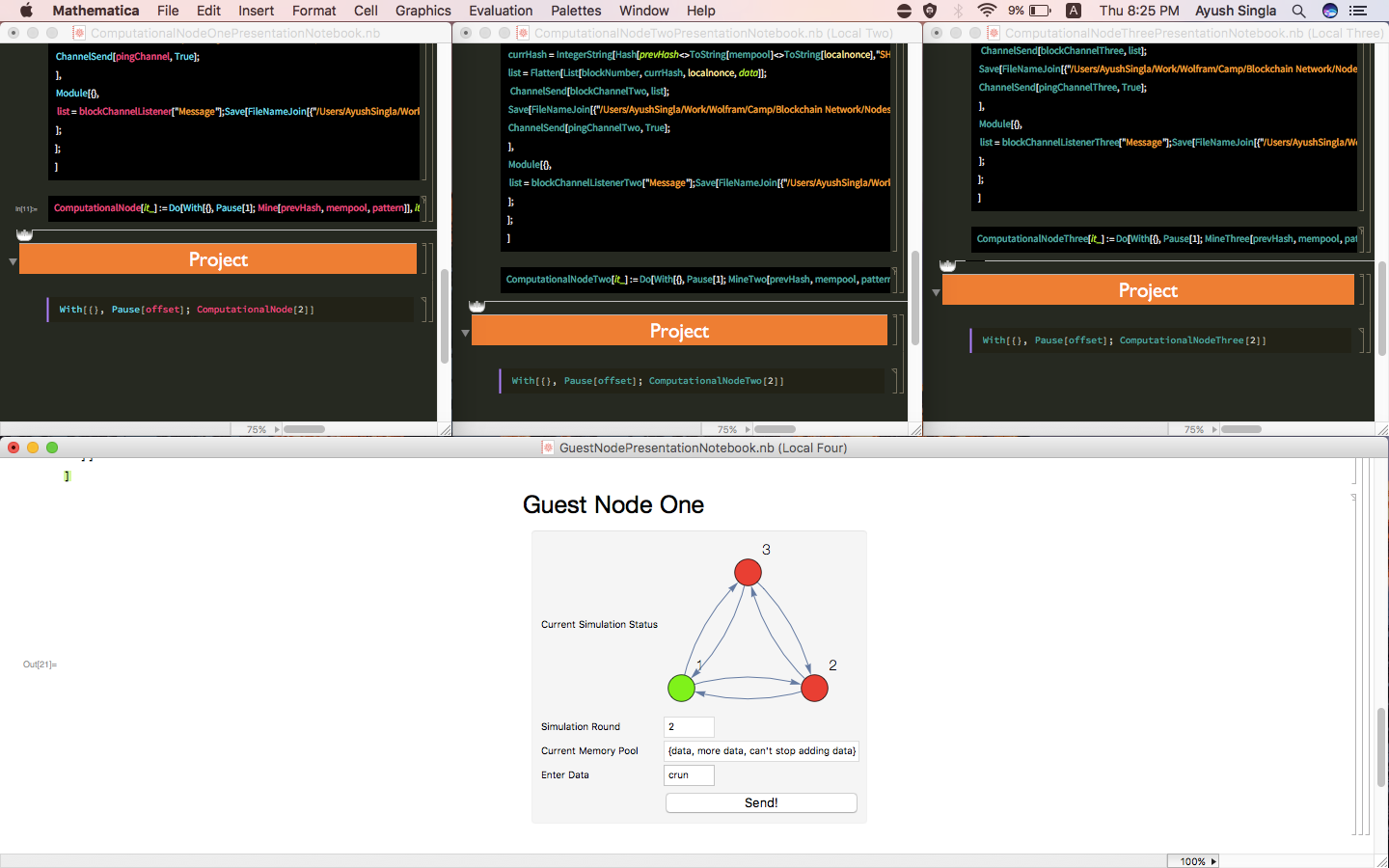

For testing purposes, I used 3 computational nodes and one guest node. Here's a shot of my setup: My Setup

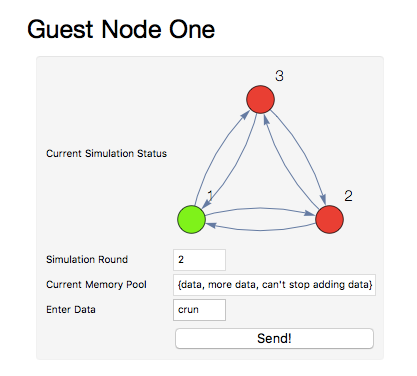

The screengrab below is of the Guest Node's GUI. The graph shows which node was the first to compute in green, and soon as that happens, the memory pool is released to the nodes, and they keep on working, forever.

The Guest Node GUI in Action

I've attached the files in this post, so you can download, clone and run them on your systems (Don't worry, they're full of comments). Try aborting one of the nodes while it's running, and see what happens to the others! (For the lazy, nothing happens. It's a blockchain, it remains intact.)

That's my project! I hope you learnt as much reading this as I did making this!

POSTED BY: Ayush Singla
Answer
5 months ago

I'm always surprised about how much our students can achieve in less than two weeks.

Ayush's project was not only a creative application of Wolfram technologies but also required learning and understanding some concepts from scratch, proving he's able to achieve good results under tight time constraints.

Nice work!

POSTED BY: Christian Pasquel
Answer
4 months ago

Sorry to be so late. I know the OP was 2 months ago.

I'm also fascinated with blockchain. This is a good writeup!

Thanks,

AJ

POSTED BY: A J Hardesty
Answer
3 months ago

enter image description here - Congratulations! This post is now a Staff Pick as distinguished on your profile! Thank you, keep it coming!

POSTED BY: Moderation Team
