[✓] Use InterpolationOrder 2 or higher in a Manipulate?

GROUPS:

Dear All,

InterpolationOrder in Manipulate are working in orders 0 and 1 but not in order 2 or higher, why?

Please can you help?

fakedata1 =
  {{{2006, 1, 1}, 27}, {{2006, 1, 2}, 25}, {{2006, 1, 3},
    86}, {{2006, 1, 4}, 72}, {{2006, 1, 5}, 66}, {{2006, 1, 6},
    18}, {{2006, 1, 7}, 13}, {{2006, 1, 8}, 7}, {{2006, 1, 9},
    84}, {{2006, 1, 10}, 0}, {{2006, 1, 11}, 19}, {{2006, 1, 12},
    50}, {{2006, 1, 13}, 12}, {{2006, 1, 14}, 41}, {{2006, 1, 15},
    21}, {{2006, 1, 16}, 46}, {{2006, 1, 17}, 82}, {{2006, 1, 18},
    0}, {{2006, 1, 19}, 74}, {{2006, 1, 20}, 21}};
fakedata2 =
  {{{2006, 1, 1}, 33}, {{2006, 1, 2}, 36}, {{2006, 1, 3},
    100}, {{2006, 1, 4}, 100}, {{2006, 1, 5}, 76}, {{2006, 1, 6},
    21}, {{2006, 1, 7}, 27}, {{2006, 1, 8}, 13}, {{2006, 1, 9},
    100}, {{2006, 1, 10}, 0}, {{2006, 1, 11}, 38}, {{2006, 1, 12},
    100}, {{2006, 1, 13}, 29}, {{2006, 1, 14}, 100}, {{2006, 1, 15},
    57}, {{2006, 1, 16}, 65}, {{2006, 1, 17}, 100}, {{2006, 1, 18},
    0}, {{2006, 1, 19}, 100}, {{2006, 1, 20}, 64}};
Manipulate[
 DateListPlot[
  {Sdata20[[1 ;; fakedata1]]
   , Hdata20[[1 ;; fakedata2]]}
  , Joined -> True
  , FrameTicks -> {{All, None}, {All, None}}
  , Filling -> Axis
  , FillingStyle -> Automatic
  , PlotRange -> Automatic
  , ImageSize -> 600
  , AspectRatio -> 1/4
  , InterpolationOrder -> 1 (*
  InterpolationOrder are not working in order 2 or higher *)
  ]
 , {fakedata1, 1, Length[Sdata20], 1}
 , {fakedata2, 1, Length[Hdata20], 1}
 ]

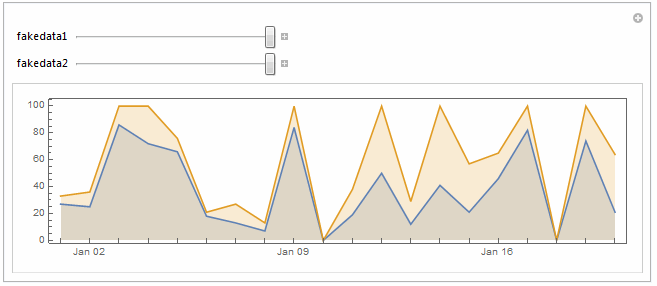

enter image description here

Best Regards,...Jos

POSTED BY: Jos Klaps
Answer
3 months ago

Works for me as long as the initial number of points for fakedata1 and fakedata2 is great enough to support the interpolation order. (E.g. need >= 3 points for InterpolationOrder -> 2, etc.)

POSTED BY: Michael Rogers
Answer
3 months ago
