Navigation keys for Mathematica slideshow presentation on Mac?

GROUPS:

With the new Mathematica 11.3 File > New > Presentation notebook, it's easy to create a slideshow quickly. But once you click the notebook's Start Presentation button, on a Mac I see no obvious keyboard-only way to navigate (without having included a navigation bar at the top of each page and without using either the obtrusive drop-down menu an obtrusive navigation palette).

The Presentation Controls pop-up, available while the notebook is still in Slideshow Working as Screen Environment, lists the default navigation keys, which Page Up and Page Down for previous and next slide, respectively; and Home and End for first and last slide, respectively. That's just fine on a Windows PC, where there are such keys. But a standard Mac does not have these keys!

It's easy to change the controls for previous and next page to left arrow and right arrow there. But what about first and last slide? Ordinarly on a Mac, Fn-left arrow and Fn-right arrow give the equivalent of Home and End. But this does not seem to work with a slideshow presentation.

Advice?

POSTED BY: Murray Eisenberg
Answer
2 months ago

I was able to get this to work after a fashion on my MacBook with Fn-Up arrow and Fn-Down arrow (previous and next slide), and command-up arrow (first slide) and command-down arrow (last slide). That's not exactly what should be happening – as you note, Fn-left and right arrows should work but don't (see https://support.apple.com/en-gb/HT201236).

In any case, the best thing for now may be to remap the keys from the provided list so that you're not dependant on such awkward key combinations.

POSTED BY: Arno Bosse
Answer
2 months ago

Those key combinations work for me, too. A good compromise would seem to be to leave Home and End as first slide and last slide, which on Mac will be Cmd-Up arrow and Cmd-Down arrow, respectively. And to change Previous slide and Next slide to left arrow and right arrow, respectively.

POSTED BY: Murray Eisenberg
Answer
2 months ago

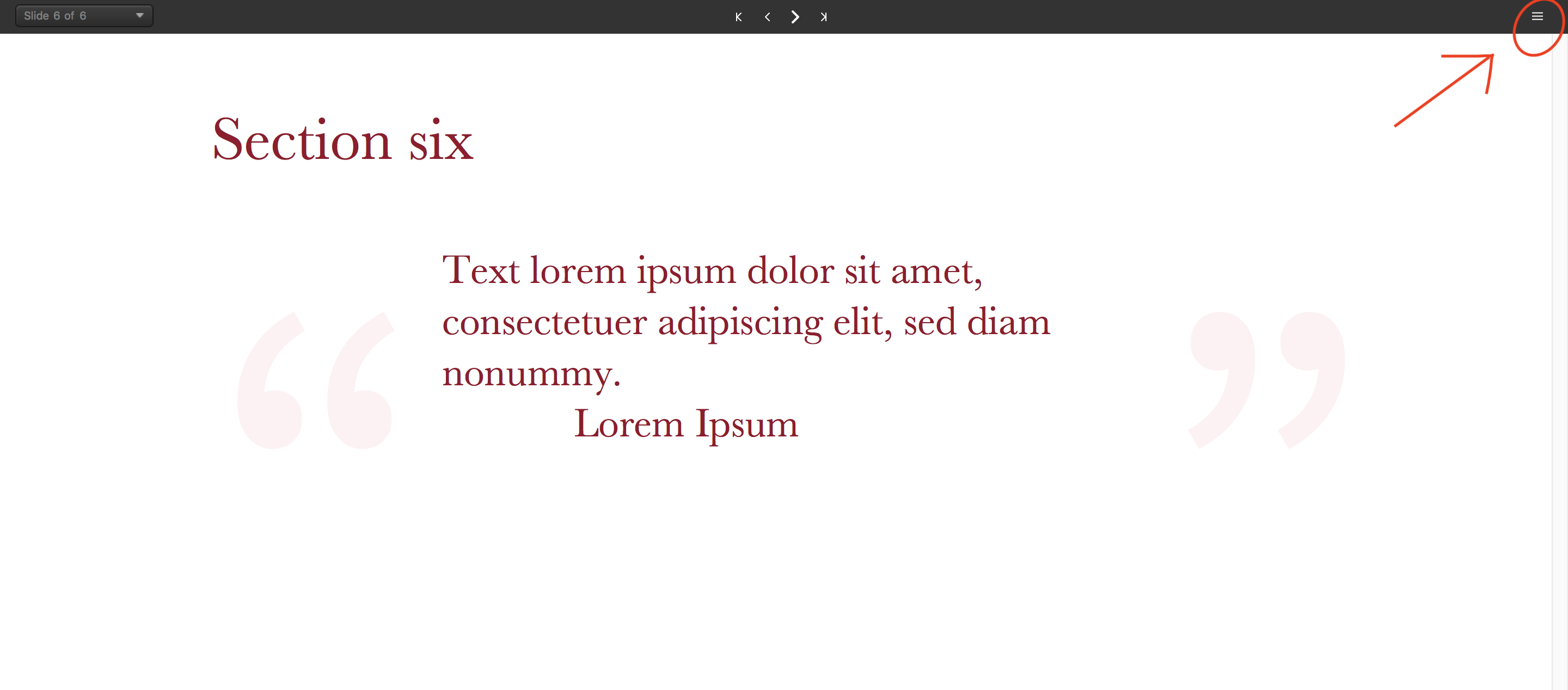

I am not sure if that helps, but I am on a Mac (HighSierra 10.13.3) and if I open a presentation under MMA 11.3 I have a little icon at the top right:

enter image description here

If I click on it I get

enter image description here

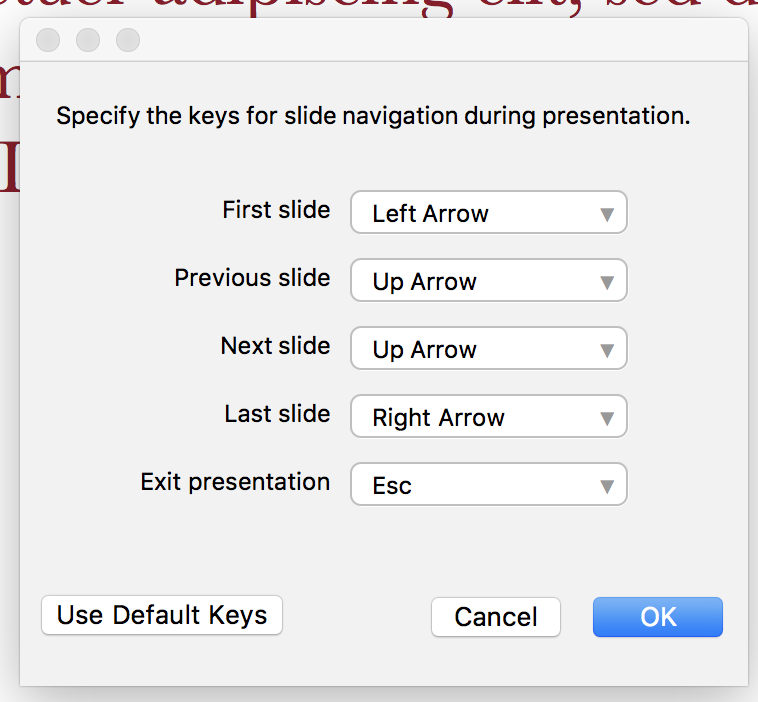

When I clicked on "Toggle Navigation Bar" I got the standard navigation elements at the top of the slides. In the same place under the "Presentation Controls" I used this

enter image description here

which allows me to navigate even without the navigation bar quite smoothly, including going to the first and last slide.

Best wishes from Aberdeen,

Marco

POSTED BY: Marco Thiel
Answer
2 months ago

Yes, I know about all that. The issue was to get suitable keys to work. But bare Up Arrow and Down Arrow seems to be not a totally satisfactory choice for first slide and last slide, given that one is more like to want to reserve them for navigating through a particular slide.

POSTED BY: Murray Eisenberg
Answer
2 months ago

Oh sorry I misunderstood that question.

Best wishes, Marco

POSTED BY: Marco Thiel
Answer
2 months ago

Would something like this

nb = EvaluationNotebook[];
SetOptions[nb, NotebookEventActions -> {{"KeyDown", "l"} :> FrontEndExecute[FrontEndToken[nb, "ScrollPageLast"]], {"KeyDown",
"f"} :> FrontEndExecute[FrontEndToken[nb, "ScrollPageFirst"]]}]

work? If you press l you go to the last slide and if you press f you go to the first slide...

Probably it is better to use these keys as they are not normally part of Wolfram Language Input:

nb = EvaluationNotebook[];
SetOptions[nb, NotebookEventActions -> {{"KeyDown", "'"} :> FrontEndExecute[FrontEndToken[nb, "ScrollPageLast"]], {"KeyDown", "§"} :> FrontEndExecute[FrontEndToken[nb, "ScrollPageFirst"]]}]

Cheers,

Marco

POSTED BY: Marco Thiel
Answer
2 months ago

Alas, neither of those pairs of choices to go to first and last slide is suitable -- assuming that one wants a slideshow in Mathematica still to allow actual interactivity, including adding or altering input there on the fly. For example, suppose it's appropriate in the middle of a presentation to add:

 f[x_] := Exp[-x] Sin[x^2]
 f'[x]

Oops: that would take you immediately away from the Input cell where you were working!

(And for the same reason, one would not want to use the letters "f" and "l", as you realized. E.g., if you wanted to add input such as a Plot expression, or to define a function named f.

POSTED BY: Murray Eisenberg
Answer
2 months ago

You could perhaps try to use shift, control, command as modifiers and require two keys to be pressed rather than just the f and l, or paragraph sign?

POSTED BY: Marco Thiel
Answer
2 months ago
