[✓] Find the smallest circumsphere containing N points?

Posted 7 months ago
720 Views
|
2 Replies
|
2 Total Likes
|

How to draw the smallest Circumsphere containing N points?

2 Replies

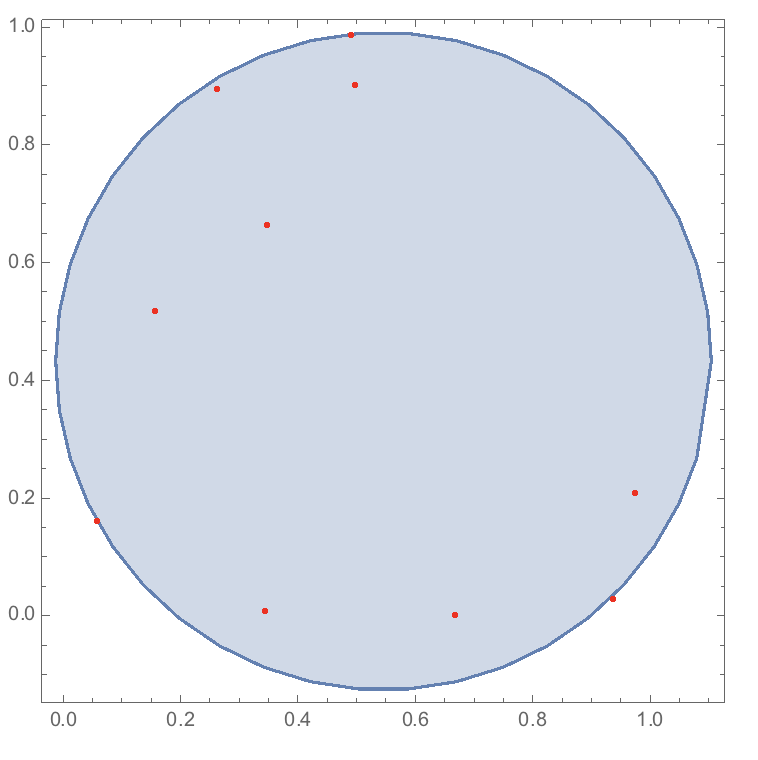

Something like this?

M = 10; (*Number of points*)
data = RandomReal[1, {M, 2}]; (*Generate coords of points*)
Show[RegionPlot[BoundingRegion[data, "MinDisk"]], Graphics[{Red, Point /@ data}]] (*Calculate Circumdisk and plot*)

enter image description here

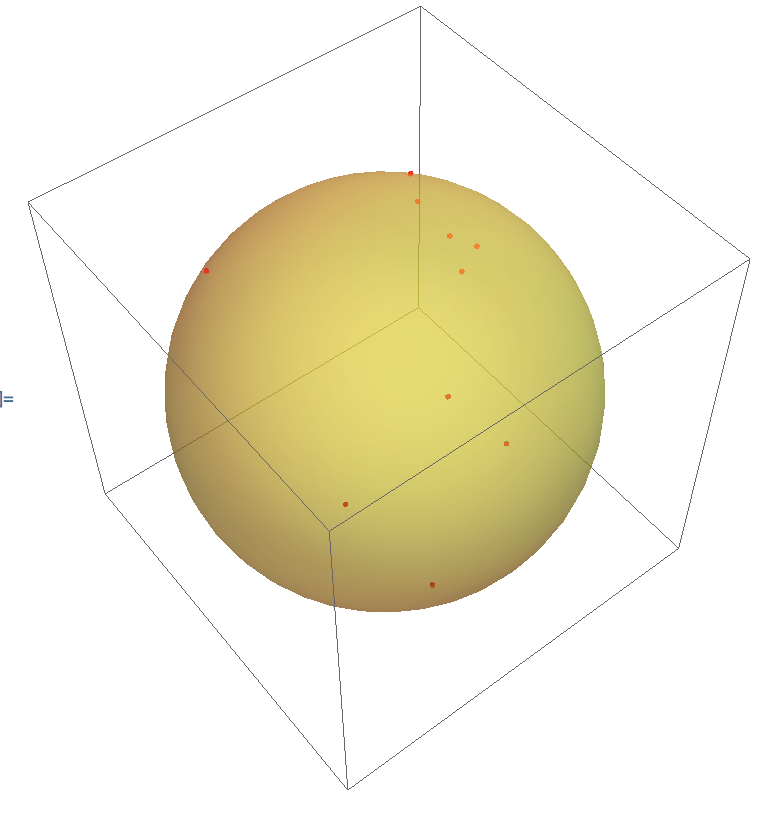

In 3D

data3d = RandomReal[1, {M, 3}];
Show[RegionPlot3D[BoundingRegion[data3d, "MinBall"], PlotStyle -> Directive[Yellow, Opacity[0.5]]], Graphics3D[{Red, Point /@ data3d}]]

enter image description here

Cheers,

Marco

Posted 7 months ago

Thank you so much! But my version is 10.2, so it seems that the "BoundingRegion" cannot work. Do you know how to do with 10.2?

cheers, YN
