Create an outer surface on 3D-Point-Cloud?

Posted 6 years ago

Hello Here,

I am interested in creating a closed surface of given, mostly random positioned points in 3D space. I started with the ConvexHullMesh but it does not fulfill my needs, because I also want the enclosed volume to be as small as possible (I mean, just not to loose surface information due to the way convex hull works).

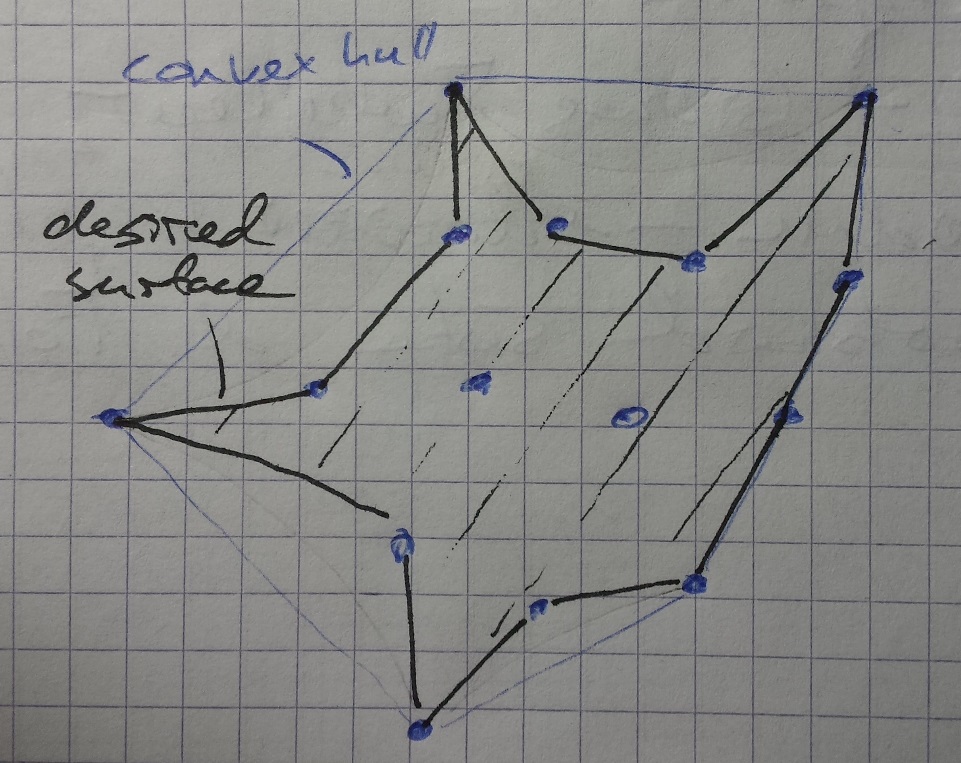

I hope the image helps you to understand my needs.

Later on, I will be interested in smoothing the surface. That might be nice, if you also have some thoughts on it.

Thank you!

enter image description here

POSTED BY: Ivan L.
2 Replies
Posted 6 years ago

Thanks Daniel!

Those are exactly I was looking for, especially the 3rd one.

POSTED BY: Ivan L.
