[✓] Make filling from vertical epilog line to the y axis in LogLogPlot?

Posted 4 months ago
483 Views
|
5 Replies
|
2 Total Likes
|

Hi, I would like to ask for help on how color everything to the right of a vertical line in a LogLogPlot? From the line to the right y axis. I made the following:

LogLogPlot[x^2, {x, 0, 2 Pi}, PlotRange -> {{0.001, 5}, {10^-4, 10}},
 Epilog -> Line[{{Log[1], Log[10^-4]}, {Log[1], Log[10]}}],
 Frame -> True]

I need to exclude all the area from x=1 and to the right, and therefore shade it. I tried with filling but it did not produce anything, and I also tried to make a rectangle using graphics rectangle, but it can not show together with my LogLogPlot.

Thank you in advance,

Attachment

5 Replies

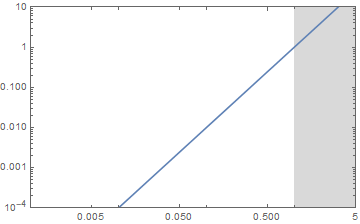

Something like this? Fig 1

OK!

LogLogPlot[x^2, {x, 0, 2 Pi}, PlotRange -> {{0.001, 5}, {10^-4, 10}},
 Epilog -> {Gray, Opacity[.5],
   Table[Line[{{Log[x0], Log[10^-4]}, {Log[x0], Log[10]}}], {x0, 1,
     2*Pi, .01}]}, Frame -> True]
Posted 4 months ago

Thank you so much! That makes sense and works perfectly!

Thank you!

Posted 4 months ago
LogLogPlot[x^2, {x, 0, 2 Pi},
 Prolog -> {LightGray,
   Rectangle[{Log[1], Log[10^-4]}, {Log[5], Log[10]}]}, Frame -> True,
  PlotRange -> {{0.001, 5}, {10^-4, 10}}]

This is a simple solution with Rectangle.

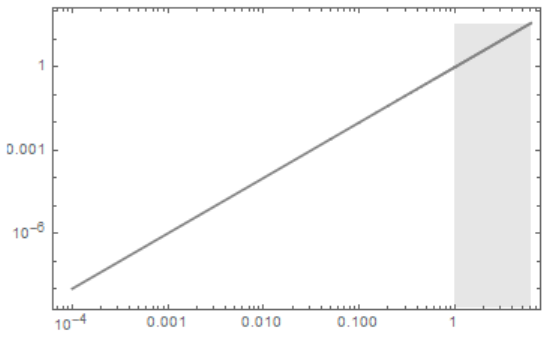

enter image description here
