Plot a graph of a non linear ODE system?

Posted 4 months ago
426 Views
|
1 Reply
|
1 Total Likes
|

Hello everybody,

I got a simple question. I wrote this instruction to plot the solution of my non linear ODE system. The problem is that the program plots all the three functions in one color. How can I change it? Why doesn't it label them?

Thank you!

Attachment

Attachments:
 (* Tested on Mathematica version 10.2 and 11.3 *)

 sol = NDSolve[{x'[t] == -y[t] - x[t]^2, y'[t] == 2 x[t] - y[t]^3,
 z'[t] == 2 x[t] - z[t], x[0] == y[0] == z[0] == 1}, {x, y, z}, {t,10}];


Plot[Evaluate[{x[t], y[t], z[t]} /. sol], {t, 0, 10},
PlotLegends -> Placed[{"x[t]", "y[t]", "z[t]"}, Above]](*default colors*)

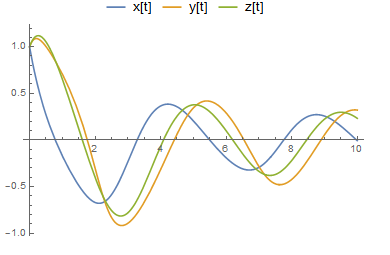

enter image description here

Plot[Evaluate[{x[t], y[t], z[t]} /. sol], {t, 0, 10}, PlotStyle -> {Red, Green, Blue},
PlotLegends -> Placed[{"x[t]", "y[t]", "z[t]"}, Above]]

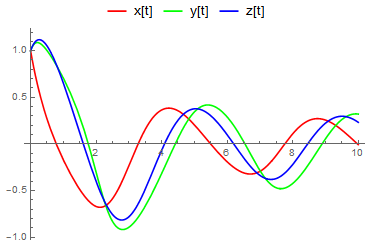

enter image description here
