Plot Labels with arrows or lines pointing to different curves?

Posted 7 days ago
99 Views
|
2 Replies
|
2 Total Likes
|

I'm trying to get plot labels with arrows or lines pointing to different curves. If I do

A2 = 1;
Plot[Evaluate@
  Table[Labeled[Sqrt[x^2 - x^4]/Sqrt[
    1 + A2 \[Beta]], \[Beta]], {\[Beta], {.1, .5, 1, 5, 10, 20}}], {x,
   0, 1.2}, AxesLabel -> {Subscript[k, x], Subscript[k, y]},
 PlotRange -> All, LabelStyle -> Directive[14, Bold]]

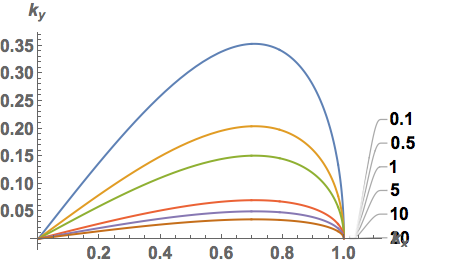

I get the following image.

Dispersion relations

How do I make the lines point to a better part of the curves?

I've also tried something along the lines of

Plot[Evaluate@
  Table[Sqrt[x^2 - x^4]/Sqrt[
   1 + \[Beta]], {\[Beta], {.1, .5, 1, 5, 10, 20}}], {x, 0, 1.2},
 PlotLabels ->
  Placed[{"\[Beta] = .1", "\[Beta] = .5", "\[Beta] = 1",
    "\[Beta] = 5", "\[Beta] = 10", "\[Beta] = 20"}, Above],
 PlotRange -> All]

I've tried using Scaled[] as well. Those options seem to move the labels around but remove the lines pointing to the curves.

2 Replies
Posted 6 days ago

You may want to try experimenting with Callout[].

A2 = 1;
Manipulate[
 Plot[Evaluate@
   Table[Callout[Sqrt[x^2 - x^4]/Sqrt[1 + A2 \[Beta]], \[Beta], pos,
     CalloutMarker -> "CirclePoint"], {\[Beta], {.1, .5, 1, 5, 10,
      20}}], {x, 0, 1.2},
  AxesLabel -> {Subscript[k, x], Subscript[k, y]}, PlotRange -> All,
  LabelStyle -> Directive[14, Bold],
  ImageSize -> Large], {{pos, 0.8, "Position"}, 0, 1,
  Appearance -> "Labeled"}]

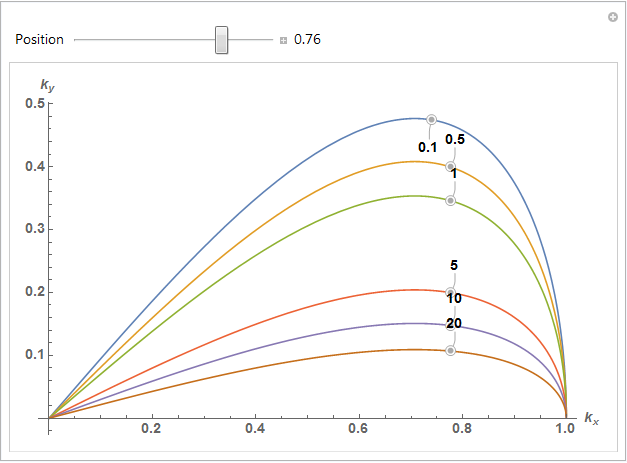

Callout Example

Posted 6 days ago

You may want to try experimenting with Callout[].

A2 = 1;
Manipulate[
 Plot[Evaluate@
   Table[Callout[Sqrt[x^2 - x^4]/Sqrt[1 + A2 \[Beta]], \[Beta], pos,
     CalloutMarker -> "CirclePoint"], {\[Beta], {.1, .5, 1, 5, 10,
      20}}], {x, 0, 1.2},
  AxesLabel -> {Subscript[k, x], Subscript[k, y]}, PlotRange -> All,
  LabelStyle -> Directive[14, Bold],
  ImageSize -> Large], {{pos, 0.8, "Position"}, 0, 1,
  Appearance -> "Labeled"}]

Callout Example

Update

The LeaderSize option will give you more control over the callout placement. You can experiment with the manipulate below. For me, the largest effects were adjusting the Neck parameters.

A2 = 1;
m = Manipulate[
  Plot[Evaluate@
    Table[Callout[Sqrt[x^2 - x^4]/Sqrt[1 + A2 \[Beta]], \[Beta], pos,
      Background -> White,
      LeaderSize -> {{leadlen, horizangle Degree, gap}, {neck,
         neckangle Degree}},
      CalloutMarker -> "CirclePoint"], {\[Beta], {.1, .5, 1, 5, 10,
       20}}], {x, 0, 1.2},
   AxesLabel -> {Subscript[k, x], Subscript[k, y]}, PlotRange -> All,
   LabelStyle -> Directive[14, Bold],
   ImageSize -> Large], {{pos, 1/Sqrt[2], "Position"}, 0, 1,
   Appearance -> "Labeled"}, {{leadlen, 40, "Leader Length"}, 0, 100,
   Appearance -> "Labeled"}, {{horizangle, 225,
    "Horizontal Angle(\[Degree])"}, -360, 360,
   Appearance -> "Labeled"}, {{gap, 2, "Gap"}, 0, 10,
   Appearance -> "Labeled"}, {{neck, 20, "Neck Length"}, 0, 100,
   Appearance -> "Labeled"}, {{neckangle, 20,
    "NeckAngle(\[Degree])"}, -360, 360, Appearance -> "Labeled"}]

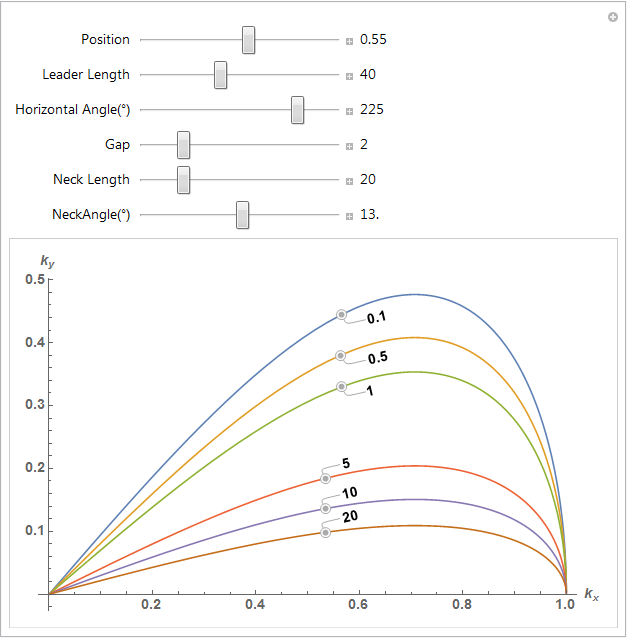

enter image description here
