Combining Graphics Primitives by Union, Intersection and Complement

Posted 10 years ago
POSTED BY: Mario Weitzer
2 Replies

One wants to use Boole] and bring the functions from this old post [Re: Fläche sich überlagernder Objekte into 3D to new life.

An overkill

    Graphics3D[
 Table[If[Boole[ x/2 + (3 y)/5 + (5 z)/6 > 0 && -(x/2) + (3 y)/5 + (5 z)/6 < -(2/3) &&
      x/2 - (3 y)/5 + (5 z)/6 < -(1/2) && x/2 + (3 y)/5 - (5 z)/6 > -(1/2)] == 1, Sphere[{x, y, z}]],
   {x,0, 6, 0.2}, {y, -6, 6, 0.2}, {z, -6, 6, 0.2}]]

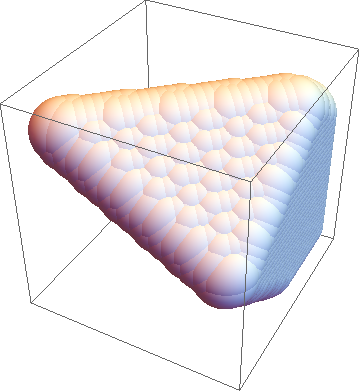

overkill

and obviously confused by the many (useless) inner points

ListSurfacePlot3D[
 DeleteMissing[
  Flatten[Table[
    If[Boole[x/2 + (3 y)/5 + (5 z)/6 >  0 && -(x/2) + (3 y)/5 + (5 z)/6 < -(2/3) &&
        x/2 - (3 y)/5 + (5 z)/6 < -(1/2) &&  x/2 + (3 y)/5 - (5 z)/6 > -(1/2)] == 1, {x, y, z},
     Missing[]], {x, 0, 6, 0.1}, {y, -6, 6, 0.1}, {z, -6, 6, 0.1}],
   2]], MaxPlotPoints -> 50]

confused

POSTED BY: Udo Krause

You could try using Reduce to calculate the intersection using constraint definitions of the half-planes, disks, etc. and then use RegionPlot on the result.

POSTED BY: Frank Kampas
