Set up Tooltip in filling area?

Jos Klaps

Jos Klaps, Home / Hobbyist

Posted 8 years ago

Hi All, Does anyone know why tooltip is not working in filling (shadow) area? Tooltip nr. 3, 7, 8, 9, 16 and 17 are not working? See file attached ! Thanks for your support,......Jos data = {{1, 96}, {2, 88}, {3, 73}, {4, 68}, {5, 65}, {6, 64}, {7, 63}, {8, 62}, {9, 60}, {10, 56}, {11, 55}, {12, 55}, {13, 55}, {14, 58}, {15, 65}, {16, 71}, {17, 72}, {18, 70}, {19, 66}, {20, 76}}; p1 = ListPlot[Tooltip[data] , PlotStyle -> Blue , PlotLabel -> "Title" , PlotRange -> {Automatic, {50, 100}} , FrameLabel -> {"X-axis", "Y-axis"} , Frame -> True , Filling -> Bottom , ImageSize -> Medium ]; fitLine = Fit[data, {1, x}, x] fitQuadratic = Fit[data, {1, x, x^2}, x] p2 = Plot[fitQuadratic, {x, 0, 20}, Epilog -> Point[data]]; p3 = Show[ p1 , Plot[{fitLine, fitQuadratic}, {x, 0, 20} , Filling -> True] , ImageSize -> Medium ] p3 = Show[ p1 , Plot[{fitLine, fitQuadratic}, {x, 0, 20} , Filling -> True] , ImageSize -> Medium ] Attachments:

Hi All,

Does anyone know why tooltip is not working in filling (shadow) area?

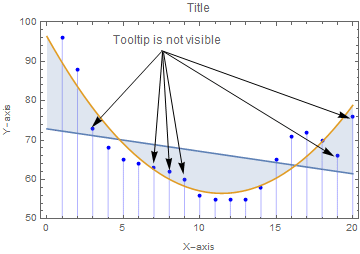

Tooltip nr. 3, 7, 8, 9, 16 and 17 are not working?

See file attached !

Thanks for your support,......Jos

data = {{1, 96}, {2, 88}, {3, 73}, {4, 68}, {5, 65}, {6, 64}, {7,
    63}, {8, 62}, {9, 60}, {10, 56}, {11, 55}, {12, 55}, {13,
    55}, {14, 58}, {15, 65}, {16, 71}, {17, 72}, {18, 70}, {19,
    66}, {20, 76}};
p1 = ListPlot[Tooltip[data]
   , PlotStyle -> Blue
   , PlotLabel -> "Title"
   , PlotRange -> {Automatic, {50, 100}}
   , FrameLabel -> {"X-axis", "Y-axis"}
   , Frame -> True
   , Filling -> Bottom
   , ImageSize -> Medium
   ];
fitLine = Fit[data, {1, x}, x]
fitQuadratic = Fit[data, {1, x, x^2}, x]
p2 = Plot[fitQuadratic, {x, 0, 20},
   Epilog -> Point[data]];

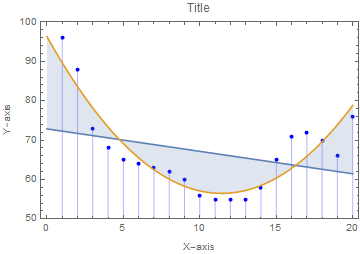

p3 = Show[
  p1
  , Plot[{fitLine, fitQuadratic}, {x, 0, 20}
   , Filling -> True]
  , ImageSize -> Medium
  ]
p3 = Show[
  p1
  , Plot[{fitLine, fitQuadratic}, {x, 0, 20}
   , Filling -> True]
  , ImageSize -> Medium
  ]

Tooltip

POSTED BY: Jos Klaps

4 Replies

Sort By:

John McGee

John McGee, Wolfram Research

Posted 8 years ago

Reverse the order of the plots in Show, the plot with tooltips must be one top. Show[Plot[{fitLine, fitQuadratic}, {x, 0, 20}, Filling -> True], p1, ImageSize -> Medium]

POSTED BY: John McGee

Jos Klaps

Jos Klaps, Home / Hobbyist

Posted 8 years ago

Hi John, Thanks for your excellent support ! Regards,.......Jos

POSTED BY: Jos Klaps

Jos Klaps

Jos Klaps, Home / Hobbyist

Posted 8 years ago

Hi I van Veen, Thanks for your quick reply and support. Tooltip is working in plot (p1), but is still not visible in line with filling of plot (p3). Find updated file attached. p1 = ListPlot[Map[Tooltip, data] , PlotStyle -> Blue , PlotLabel -> "Title" , PlotRange -> {Automatic, {50, 100}} , FrameLabel -> {"X-axis", "Y-axis"} , Frame -> True , Filling -> Bottom , ImageSize -> Medium ]; p3 = Show[ p1 , Plot[{fitLine, fitQuadratic}, {x, 0, 20} , Filling -> True] , ImageSize -> Medium ] Attachments:

Hi I van Veen,

Thanks for your quick reply and support.

Tooltip is working in plot (p1), but is still not visible in line with filling of plot (p3). Find updated file attached.

p1 = ListPlot[Map[Tooltip, data]
   , PlotStyle -> Blue
   , PlotLabel -> "Title"
   , PlotRange -> {Automatic, {50, 100}}
   , FrameLabel -> {"X-axis", "Y-axis"}
   , Frame -> True
   , Filling -> Bottom
   , ImageSize -> Medium
   ];
p3 = Show[
  p1
  , Plot[{fitLine, fitQuadratic}, {x, 0, 20}
   , Filling -> True]
  , ImageSize -> Medium
  ]
