Approximate Fourier polynomials

Interchange

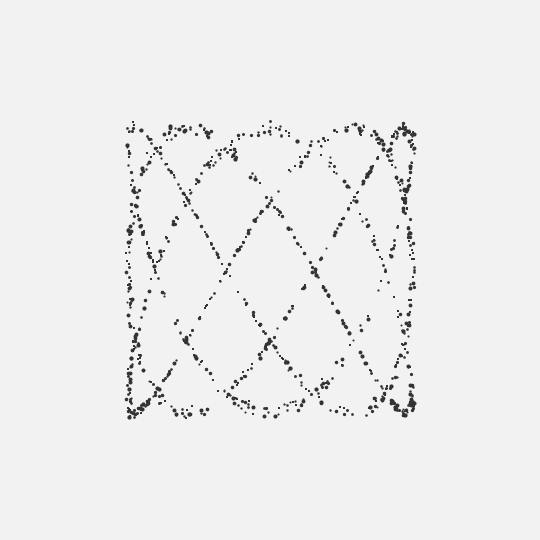

Random points following around Fourier curves.

Here's the code for producing your own GIF (the Manipulate is not very responsive):

fourier7 = Module[{n = 1000, points, size, g},
   points =
    RandomVariate[
     TransformedDistribution[{r, \[Theta]}, {r \[Distributed]
        WignerSemicircleDistribution[.002], \[Theta] \[Distributed]
        UniformDistribution[{0, 2 \[Pi]}]}], n];
   size = RandomReal[{.002, .008}, n];
   ParallelTable[
      g[s_] =
       FourierSeries[{Cos[(4 - Cos[t]) s], Sin[(5 + Sin[t]) s]}, s,
        6]; Graphics[{GrayLevel[.2],
        Table[{PointSize[size[[i]]],
          Point[ points[[i, 1]] g''[ points[[i, 2]]] +
            g[ points[[i, 2]]]]}, {i, 1, n}]},
       Background -> GrayLevel[.95], PlotRange -> 1.9,
       ImageSize -> 540], {t, 0., 2 \[Pi] - #, #}] &[2 \[Pi]/300]
   ];

Export[NotebookDirectory[] <> "fourier7.gif", fourier7,
 "DisplayDurations" -> {1/24}]

enter image description here - another post of yours has been selected for the Staff Picks group, congratulations !

We are happy to see you at the tops of the "Featured Contributor" board. Thank you for your wonderful contributions, and please keep them coming!
