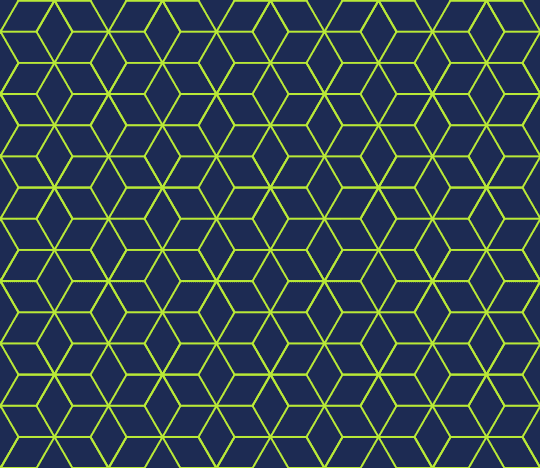

Rhombus tiling deformation

Stay Conneted

I just got an invite to Dribbble and, as I was picking a few recent GIFs to upload, I looked again at Reinvention and immediately wanted to make a combination of that and of Obfuscate. Not sure I entirely succeeded, but this is the result.

Here's the code:

rhombus[{x_, y_}, ϕ_, θ_] :=
  Polygon[{x, y} + # & /@
      Prepend[{#[[1]], #[[1]] + #[[2]], #[[2]]}, {0,
        0}] &[{{Cos[θ],
      Sin[θ]}, {Cos[θ + ϕ],
      Sin[θ + ϕ]}}]];
basicblock[{x_, y_}, ϕ_, t_, n_] :=
 Table[{rhombus[{x, y}, ϕ, θ + t],
   rhombus[{x + Cos[θ + t] + Cos[θ + t + ϕ],
     y + Sin[θ + t] +
      Sin[θ + t + ϕ]}, ϕ, θ +
     2 π/3]}, {θ, 0, 2 π - 2 π/n, 2 π/n}]

DynamicModule[{cols},
 cols = {RGBColor[
   0.7254901960784313, 0.9137254901960784, 0.21568627450980393`],
   RGBColor[
   0.11372549019607843`, 0.16862745098039217`, 0.3254901960784314]};
 Manipulate[
  Graphics[{FaceForm[None],
    EdgeForm[
     Directive[cols[[1]], JoinForm["Round"], Thickness[.00375]]],
    Table[basicblock[{3 x + 3/4 (-1)^y , 3 Sqrt[3]/2 y},
       2 π/3 Haversine[t] - π/3, 0, 6][[;; ;; 2]], {x, -3,
      3}, {y, -3, 3}]},
   PlotRange -> {{-15/2 + 3/4, 15/2 + 3/4}, {-7/2 Sqrt[3],
      4 Sqrt[3]}}, ImageSize -> 540, Background -> cols[[2]]], {t,
   0, π}]
 ]

enter image description here - another post of yours has been selected for the Staff Picks group, congratulations !

We are happy to see you at the top of the "Featured Contributor" board. Thank you for your wonderful contributions, and please keep them coming!
