Move entire graphic or make graphic goes to 0.5 instead of 0?

Elliot Cupper
Posted 8 years ago

I have this function

t1 = 1;
t2 = 2;
Umax = 2;
u[t_] = (Limit[0.5 + ArcTan[(-(t) - (t1))/x]/Pi, (x -> 0)] +
    Limit[0.5 + ArcTan[((t) - (t2))/x]/Pi, (x -> 0)])*(Umax)
    T = 2;
Plot[(u[t]), {t, -15, 15}]

I want to shift graph so it does not touch 0, or make the graph goes from 2 to 0.5 to 2 again any idea? Thanks in advance
POSTED BY: Elliot Cupper
1 Reply
Sort By:
t1 = 1;
t2 = 2;
Umax = 1.95;
u[t_] := 0.05 + Umax + Umax Limit[ArcTan[(-t - t1)/x]/\[Pi], x -> 0] +
   Umax Limit[ArcTan[(t - t2)/x]/\[Pi], x -> 0]
Plot[{u[t], 0}, {t, -15, 15}]

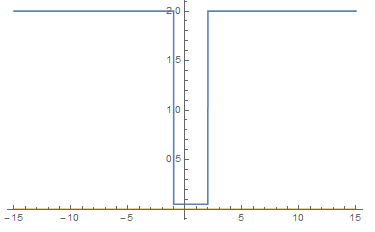

enter image description here
POSTED BY: Valeriu Ungureanu
