Flight data and trajectories of aeroplanes (reload page if empty)

GROUPS:

Large amounts of data become evermore available - often these datasets are very valuable and difficult to access. In this post I will show how to use air traffic data to generate visualisations like this one.

enter image description here

On the website http://www.flightradar24.com one can find live flight information of most of the civil air traffic. A great amount of information on all current flights is being made available, such as position and altitude, call sign, type of plane, origin and destination and many more. There are different subscription plans with different features. The largest business plan even allows you to commercially use the data or use them for public display. Alternatively, you can contribute data https://www.flightradar24.com/add-coverage. This can be done with a tiny RTL-SDR receiver, such as this one. The setup is quite straight forward; I am usually working on Macs on which I had trouble making this work. On a Windows machine (which I only got for this purpose), the setup is quick. The software for sharing your data can be downloaded from flightradar24's website. You will also need a driver for the SDR stick, which you can download from here. You should make sure that you have a good visibility of the sky and that the computer and internet connection are stable. I had to use a Windows 8/Windows 10 machine. It was quite annoying that the machine routinely reboots for software updates. If you want uninterrupted monitoring you will have to deactivate this feature. I have no experience with Windows so this was more complicated than I expected. I found a nice set of instructions here.

Once all of this is done and you donate your data, you will automatically upgraded to the Business plan and will have access to a very rich dataset. You will, for example, be allowed to download up to 1000 csv files per month with detailed tracking information of flights in the database. There is much more data available and using the Wolfram Language to analyse it seems to be quite natural.

First explorations

I download data for a flight from Frankfurt to Aberdeen in csv format. Each row contains a time stamp, date and time of the entry, the callsign, the position (as a string), altitude, speed and direction. I can import the data and then plot it:

flightdata = Import["/Users/thiel/Desktop/Flight_LH971_(cb294d1).csv"];
GeoGraphics[{Red, Thick, GeoPath@(ToExpression[#] & /@ Flatten[StringSplit[#, ","] & /@ flightdata[[2 ;;, {4}]], 1])}]

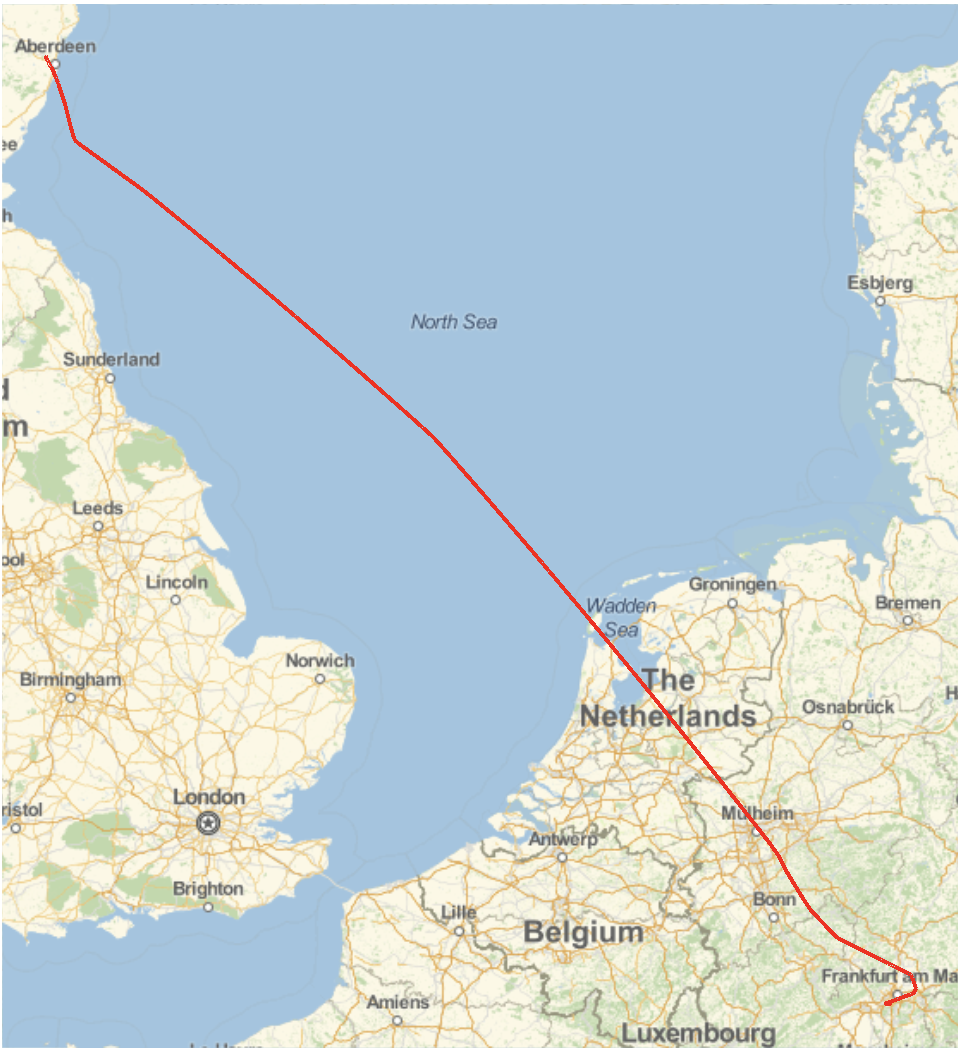

enter image description here

I needed to use StringSplit, because the GPS coordinates come in the form of a single string. Next, I can plot the path in 3D. I can clean the data to get it into the right format:

flightphs = {Join[ToExpression[StringSplit[#[[1]], ","]], {ToExpression[#[[2]]]}],ToExpression[#[[3]]]} & /@ flightdata[[2 ;;, {4, 5, 6}]];
Graphics3D[{Red, Thick, Line[{#[[1]], #[[2]], #[[3]]/30000.} & /@ flightphs[[All, 1]]]}]

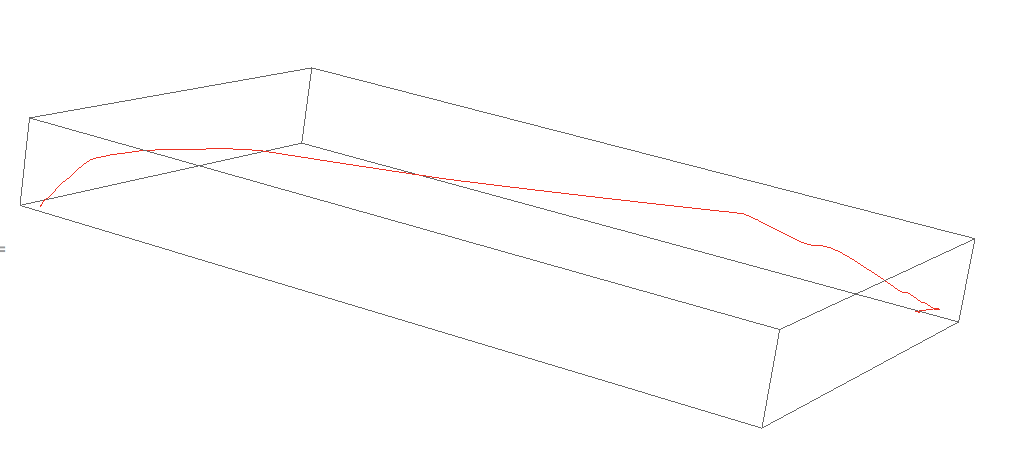

enter image description here

The 30000 that I use to divide the altitude is just a scaling factor. (Note that the altitude value comes in feet.) We can now join the flight path to one of Mathematica's maps:

Show[Graphics3D[{Red, Thick, Line[{#[[1]], #[[2]], -#[[3]]/30000.} & /@ flightphs[[All, 1]]]},
Lighting -> {{"Ambient", White}}],
Graphics3D[{Texture[Image[GeoGraphics[GeoPath[GeoPosition[flightphs[[All, 1]]]]]]],
Polygon[(PadRight[#, 3] & /@ Tuples[GeoBounds[GeoPath@GeoPosition[flightphs[[All, 1]]], Scaled[0.05]]])[[{1, 2, 4, 3}]],
VertexTextureCoordinates -> {{0, 0}, {1, 0}, {1, 1}, {0, 1}}]}], ImageSize -> Full]

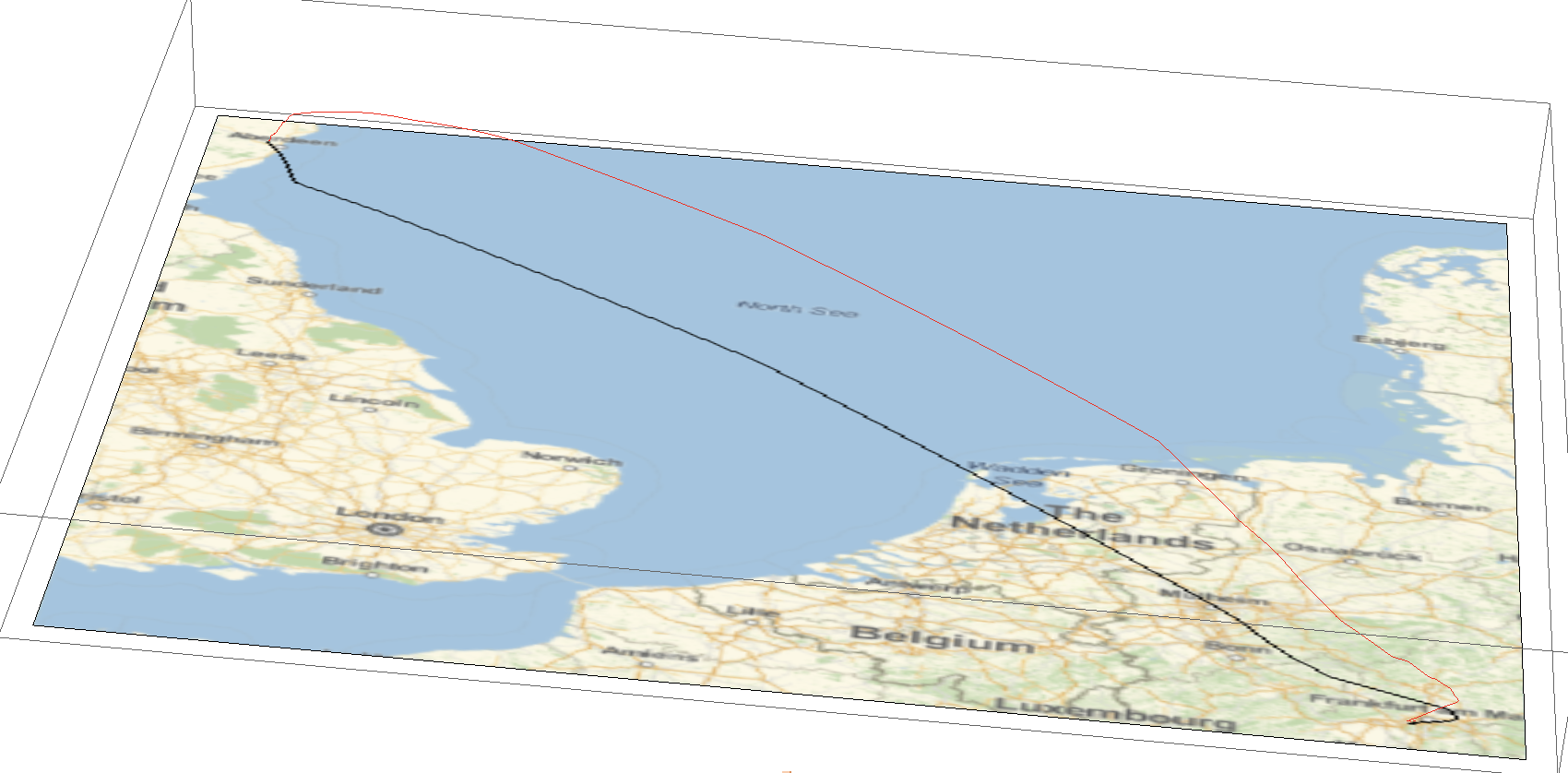

enter image description here

It also looks nice on a satellite image background:

Show[Graphics3D[{Red, Thickness[0.005], Line[{#[[1]], #[[2]], -#[[3]]/30000.} & /@ flightphs[[All, 1]]]},
Lighting -> {{"Ambient", White}}], Graphics3D[{Texture[Image[GeoGraphics[{Opacity[0],
GeoPath[GeoPosition[flightphs[[All, 1]]]]}, GeoBackground -> "Satellite"]]],
Polygon[(PadRight[#, 3] & /@ Tuples[GeoBounds[GeoPath@GeoPosition[flightphs[[All, 1]]],
Scaled[0.05]]])[[{1, 2, 4, 3}]], VertexTextureCoordinates -> {{0, 0}, {1, 0}, {1, 1}, {0, 1}}]}], ImageSize -> Full]

enter image description here

Multiple flights

Next, I download 10 trajectories of the flight LH971 from Frankfurt to Aberdeen.

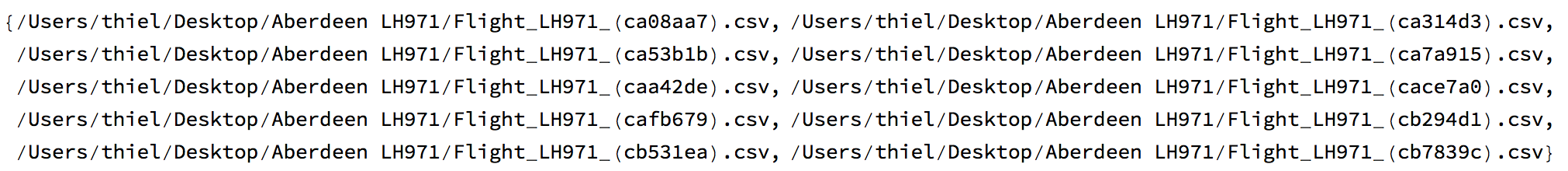

FileNames["*", "/Users/thiel/Desktop/Aberdeen LH971/"]

enter image description here

I then import all of the trajectories:

flightdataall = Import /@ FileNames["*", "/Users/thiel/Desktop/Aberdeen LH971/"];

This corresponds to 282 entries - each consisting of time stamp, date and time of the entry, the callsign, the position (as a string), altitude, speed and direction. I can clean them all up

flightphsall = ({Join[ToExpression[StringSplit[#[[1]], ","]], {ToExpression[#[[2]]]}], ToExpression[#[[3]]]} & /@ #[[2 ;;, {4, 5, 6}]] &) /@ flightdataall;

and then plot them together:

Show[Graphics3D[{Red, Thickness[0.004],
Line[{#[[1]], #[[2]], -#[[3]]/30000.} & /@ #[[All, 1]] & /@ flightphsall]}, Lighting -> {{"Ambient", White}},
ViewPoint -> {-10.`, 5.`, -5.`}, ViewVertical -> {0.8924410944866072`, -0.23945064940819427`, -7.766116131708949`}],
Graphics3D[{Texture[Image[GeoGraphics[{Opacity[0], GeoPath[GeoPosition[flightphs[[All, 1]]]]},
GeoBackground -> "Satellite", GeoRange -> {{Min[#[[All, 1, 1]]], Max[#[[All, 1, 2]]]}, {Min[#[[All, 2, 1]]], Max[#[[All, 2, 2]]]}} & @(GeoBounds[GeoPath@GeoPosition[#[[All, 1]]], Scaled[0.05]] & /@ flightphsall)]]],
Polygon[(PadRight[#, 3] & /@ Tuples[{{Min[#[[All, 1, 1]]], Max[#[[All, 1, 2]]]}, {Min[#[[All, 2, 1]]], Max[#[[All, 2, 2]]]}} & @(GeoBounds[
GeoPath@GeoPosition[#[[All, 1]]], Scaled[0.05]] & /@ flightphsall)])[[{1, 2, 4, 3}]], VertexTextureCoordinates -> {{0, 0}, {1, 0}, {1, 1}, {0, 1}}]}],
 ImageSize -> Full]

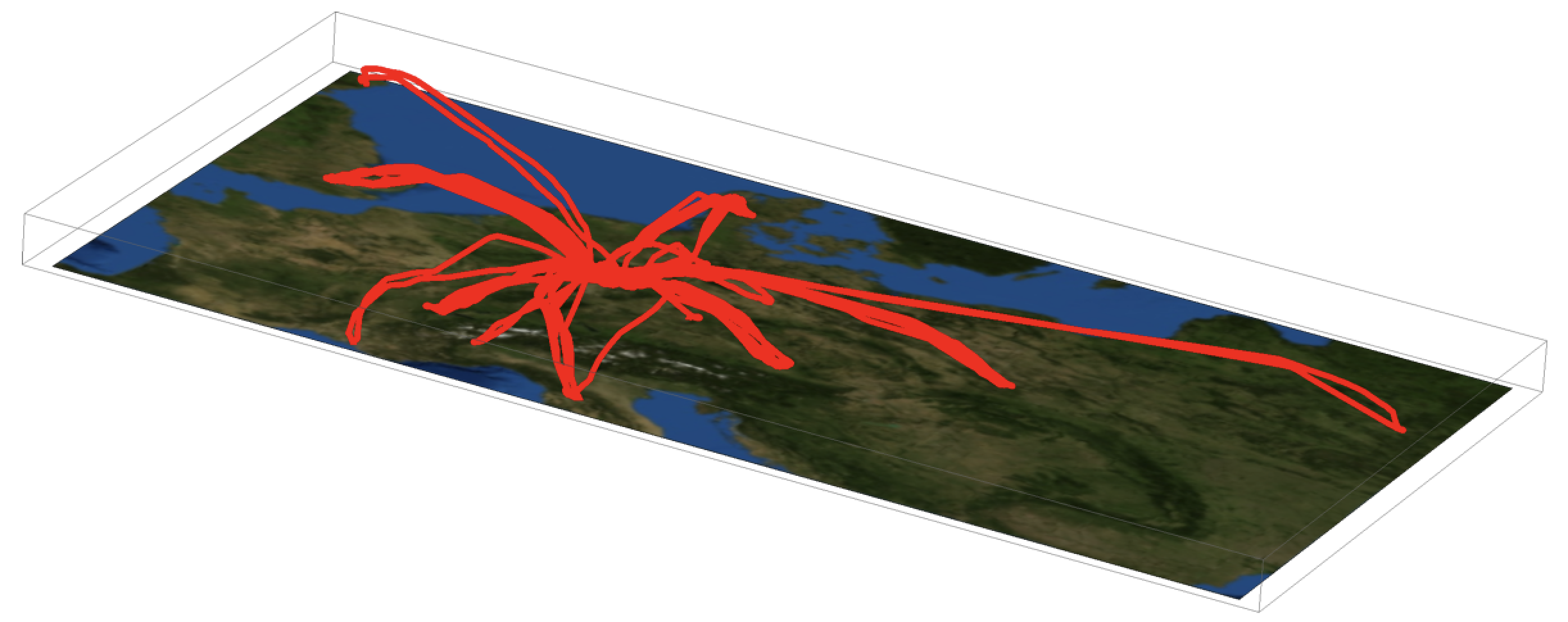

enter image description here

Note that I use ViewPoint and ViewVertical options. This is because without them, the orientation of the resulting 3D graphic is not optimal. So I plotted the image without the additional options and then rotated it until I was happy with the orientation. Then I use the function

extractViewPos[img_] := Flatten[Union[Extract[img, Position[img, #]] & /@ {ViewPoint -> _, ViewCenter -> _, ViewVertical -> _, ViewAngle -> _,ViewVector -> _, ViewRange -> _}]];

Just copy the image into the square brackets and execute:

extractViewPos[-Graphic goes here-]

and get

{ViewPoint -> {-10., 5., -5.}, ViewVertical -> {0.892441, -0.239451, -7.76612}}

This is not my function, but I found it online and have been using it ever since.

Animating a flight

Now we can mark the position of the aeroplane by a sphere and animate the flight:

backround3D2 =
  Show[Graphics3D[{Red, Thick, Line[{#[[1]], #[[2]], -#[[3]]/30000.} & /@ flightphs[[All, 1]]]},Lighting -> {{"Ambient", White}},
  ViewPoint -> {-10.`, 5.`, -5.`}, ViewVertical -> {0.8924410944866072`, -0.23945064940819427`, -7.766116131708949`}],
  Graphics3D[{Texture[Image[GeoGraphics[{Opacity[0], GeoPath[GeoPosition[flightphs[[All, 1]]]]}, GeoBackground -> "Satellite"]]],
  Polygon[(PadRight[#, 3] & /@ Tuples[GeoBounds[GeoPath@GeoPosition[flightphs[[All, 1]]], Scaled[0.05]]])[[{1, 2, 4, 3}]],
  VertexTextureCoordinates -> {{0, 0}, {1, 0}, {1, 1}, {0, 1}}]}],ImageSize -> Full];

Manipulate[
 Show[Graphics3D[{Red, Sphere[{#[[1]], #[[2]], -#[[3]]/30000.} & @flightphs[[k, 1]], 0.1]}, ViewPoint -> {-10.`, 5.`, -5.`},
   ViewVertical -> {0.8924410944866072`, -0.23945064940819427`, -7.766116131708949`}, ImageSize -> Full], backround3D2], {k, 1, Length[flightphs],5}]

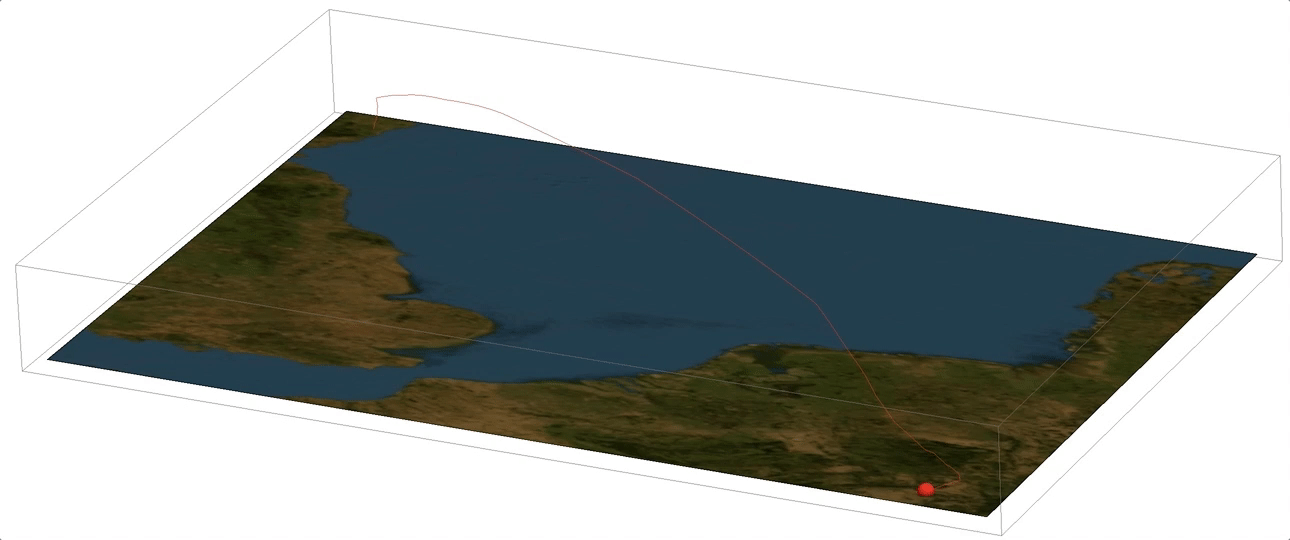

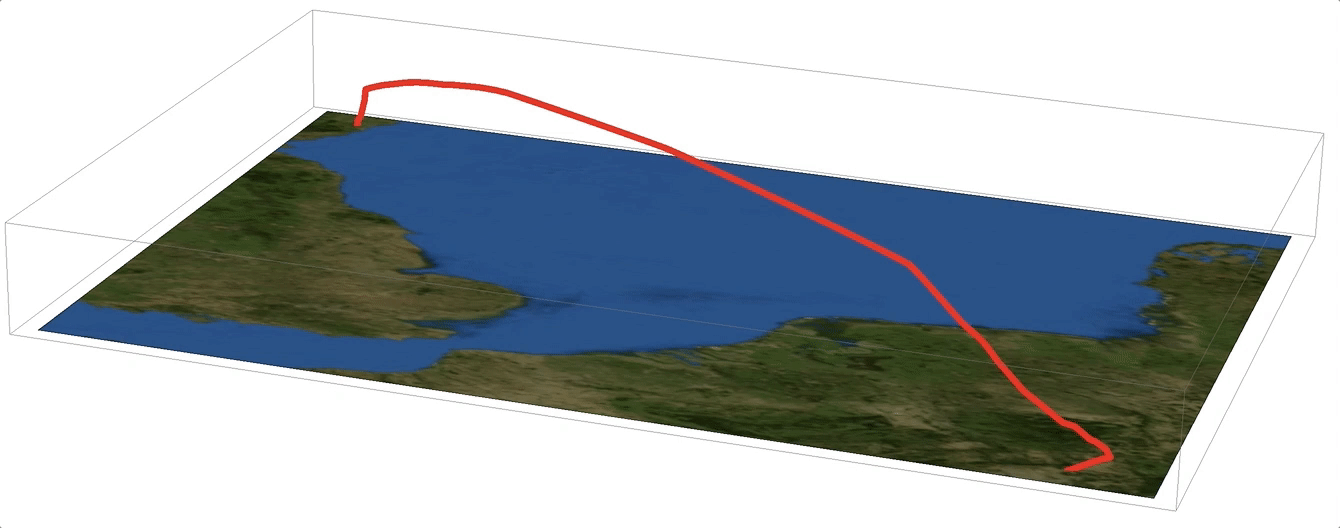

enter image description here

The multiple flights I have displayed above are the same route but executed by different aeroplanes. Later we will follow individual aeroplanes. But first we will look at the peculiar take-off and landing patterns.

Take-off and landing patterns

When we look at the take-off and touch-down times we observe that there are two main directions for both starting and destination airports. What decides which direction the planes are taking?

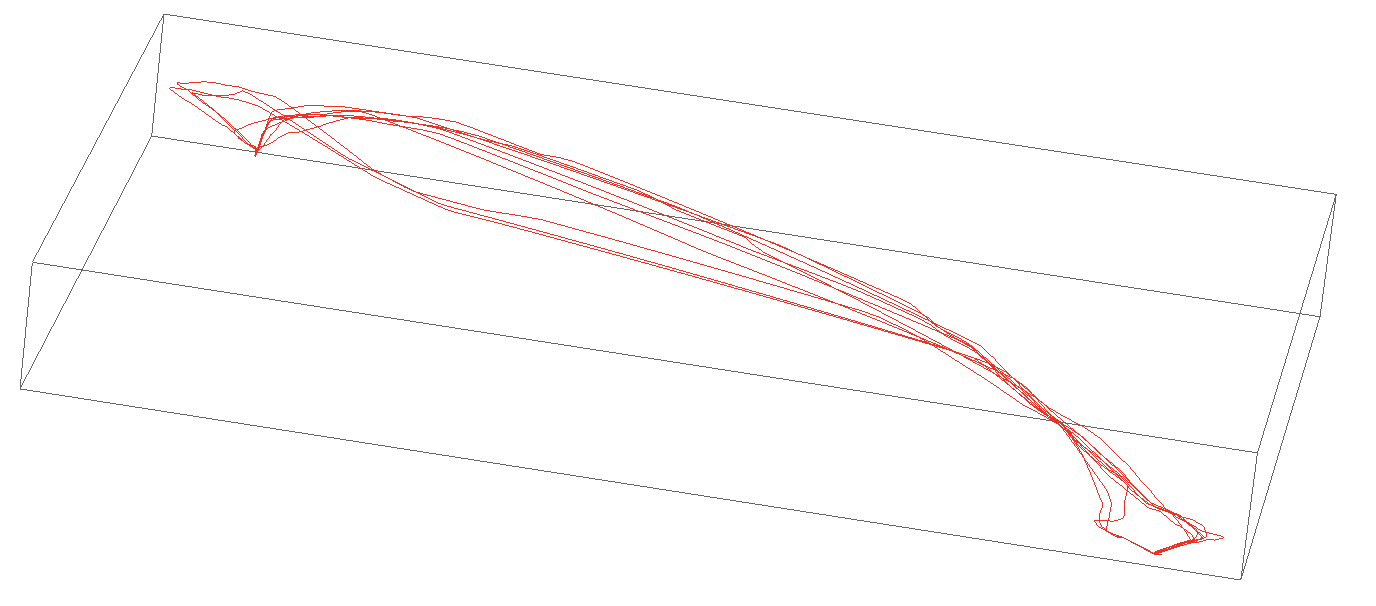

Graphics3D[{Red, Thickness[0.004],
Line[{#[[1]], #[[2]], -#[[3]]/30000.} & /@ #[[All, 1]] & /@ flightphsall]}, Lighting -> {{"Ambient", White}},
ViewPoint -> {-10.`, 5.`, -5.`}, ViewVertical -> {0.8924410944866072`, -0.23945064940819427`, -7.766116131708949`}]

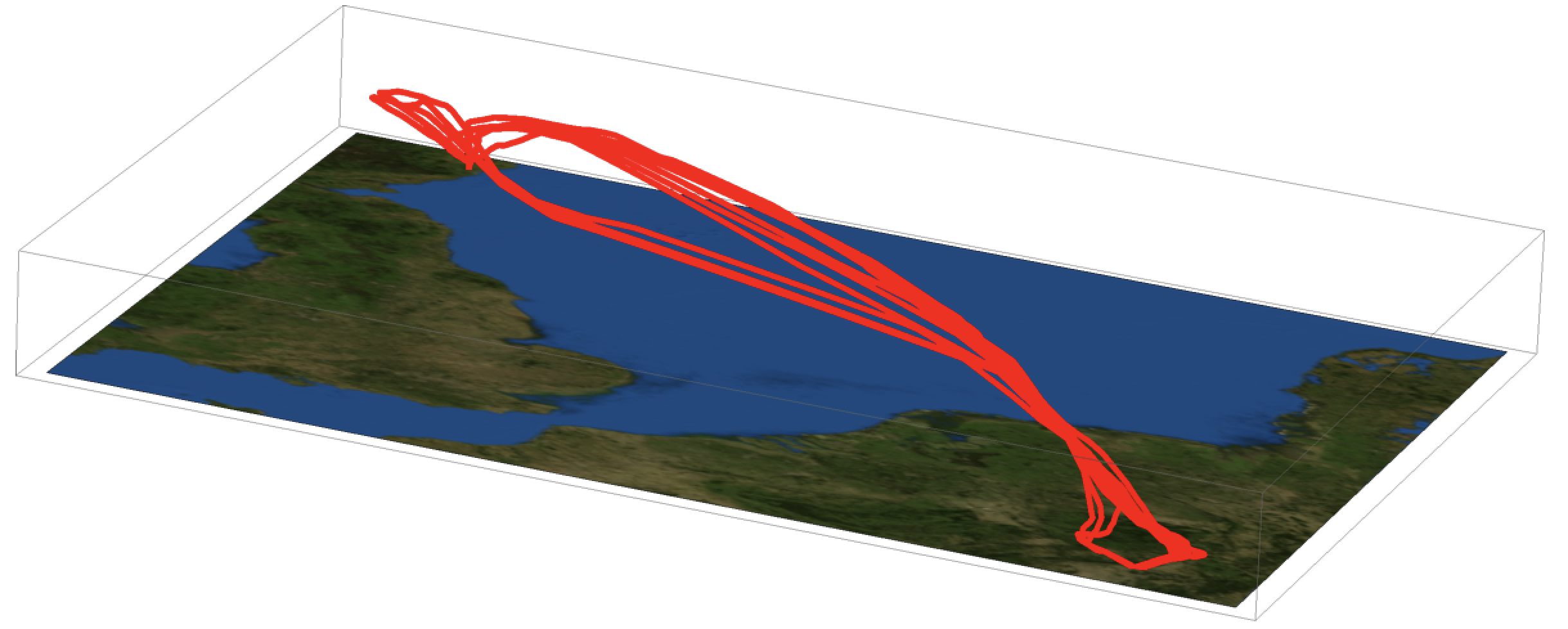

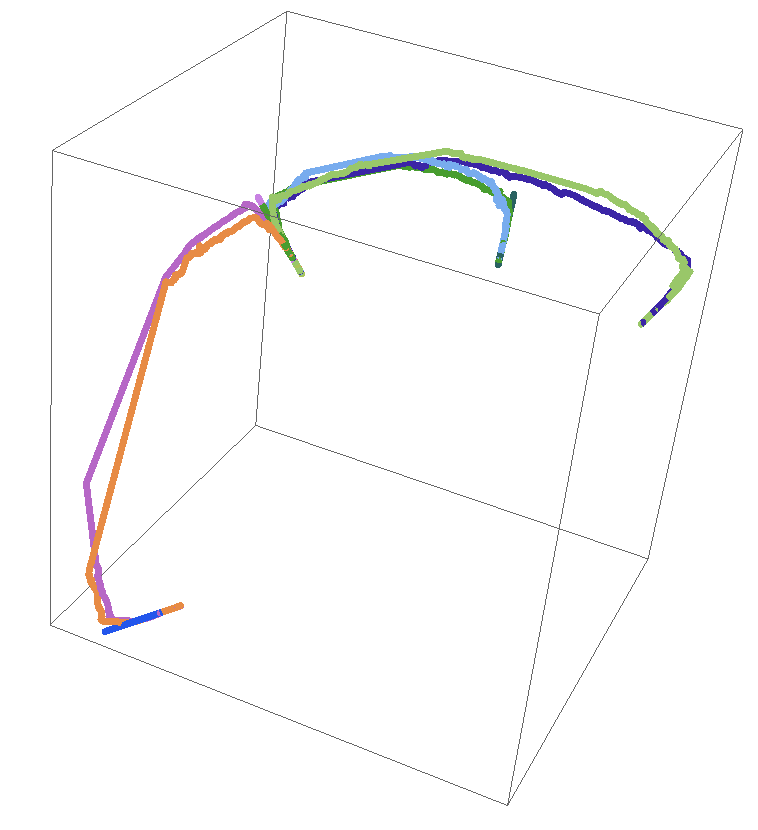

enter image description here

We first need to determine the wind direction in Frankfurt and Aberdeen on days with either of the two take-off/landing directions. First for Frankfurt.

frankfurttimeheading = Table[Select[flightdataall[[k]], #[[5]] > 4000 &][[1, {1, -1}]], {k, 1, 10}]

which gives

{{1488564623, 69}, {1488650932, 250}, {1488737193, 250}, {1488823517, 249}, {1488909842, 250}, {1488996665, 249}, {1489080927, 250}, {1489168646, 250}, {1489254863, 69}, {1489341257, 69}}

We see that there are two clusters, one at around 69 degrees and one at around 250 degrees:

fdates69 = FromUnixTime /@ Select[frankfurttimeheading, #[[2]] < 100 &][[All, 1]];
fdates250 = FromUnixTime /@ Select[frankfurttimeheading, #[[2]] > 100 &][[All, 1]];

The Wolfram Language knows the wind directions for those days:

WindDirectionData[Entity["Airport", "EDDF"], fdates69]
(*{Quantity[60., "AngularDegrees"], Quantity[70., "AngularDegrees"], Quantity[70., "AngularDegrees"]}*)

and

WindDirectionData[Entity["Airport", "EDDF"], fdates250]
{Quantity[250., "AngularDegrees"], Quantity[170., "AngularDegrees"], Quantity[-60., "AngularDegrees"], Quantity[210., "AngularDegrees"],
 Quantity[200., "AngularDegrees"], Quantity[-70., "AngularDegrees"], Quantity[70., "AngularDegrees"]}

It knows the wind vector data; here we plot it for the two situations.

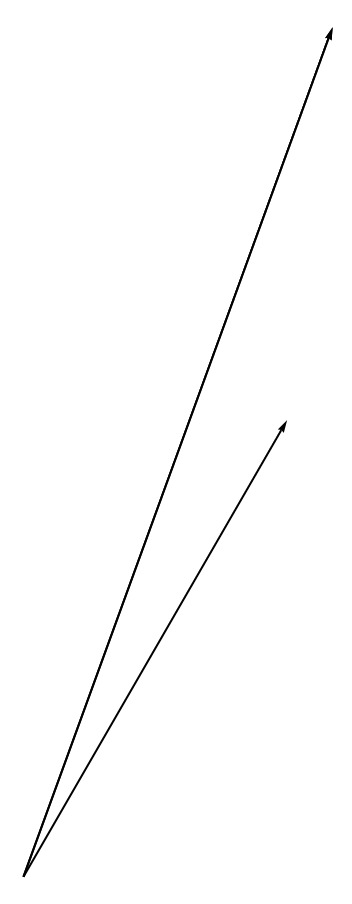

Graphics[Arrow[{{0, 0}, #}] & /@ QuantityMagnitude[WindVectorData[Entity["Airport", "EDDF"], fdates250]]]

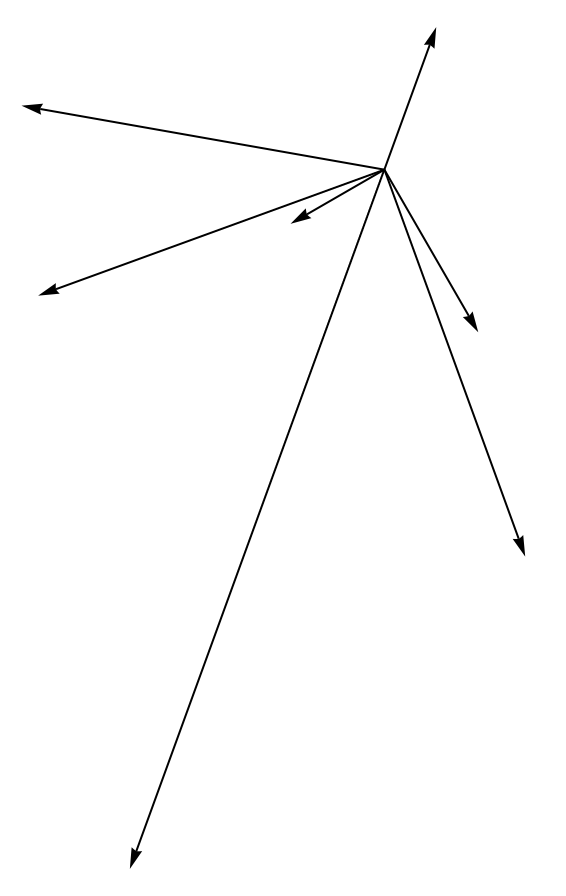

enter image description here

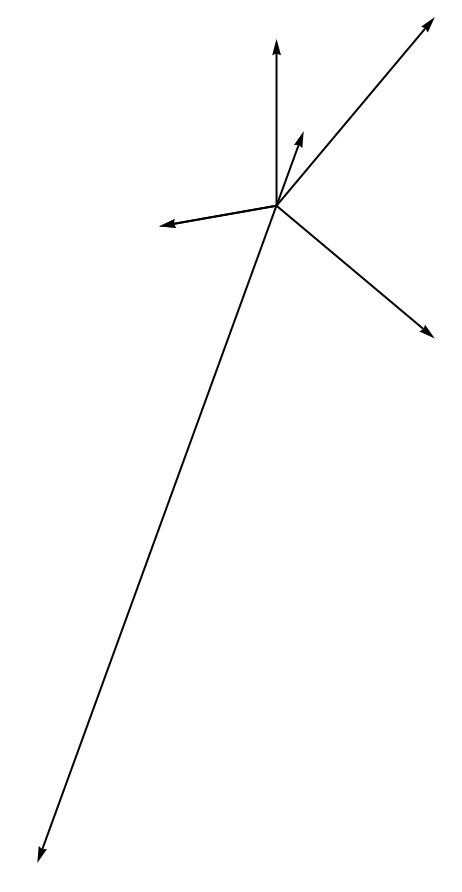

Graphics[Arrow[{{0, 0}, #}] & /@ QuantityMagnitude[WindVectorData[Entity["Airport", "EDDF"], fdates69]]]

enter image description here

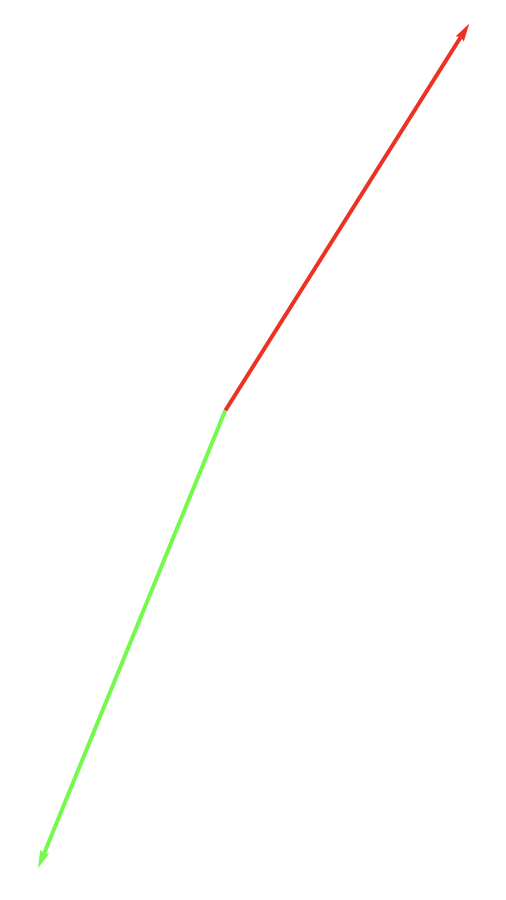

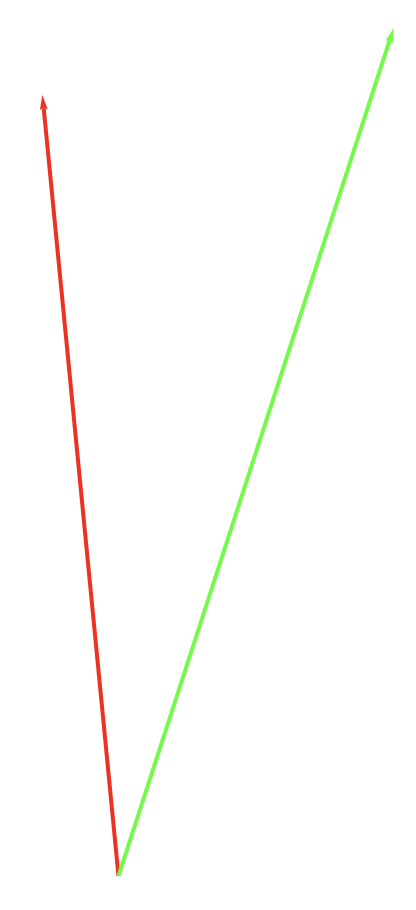

If we now average the data

Show[Graphics[{Red, Thick, Arrow[{{0, 0}, Mean[QuantityMagnitude[WindVectorData[Entity["Airport", "EDDF"], fdates250]]]}]}],
Graphics[{Green, Thick, Arrow[{{0, 0}, Mean[QuantityMagnitude[WindVectorData[Entity["Airport", "EDDF"], fdates69]]]}]}]]

enter image description here

We see that the wind direction seems to correlate with the take off direction at least for relatively strong winds. This is in agreement with general advice of how to choose the runway. We can now do the same for Aberdeen.

aberdeentimeheading = Table[Select[Reverse[flightdataall[[k]]], #[[5]] > 4000 &][[1, {1, -1}]], {k, 1, 10}];

We split the dates into two groups: smaller and larger than 200 degrees.

adates230 = FromUnixTime /@ Select[frankfurttimeheading, #[[2]] > 200 &][[All, 1]];
adates169 = FromUnixTime /@ Select[frankfurttimeheading, #[[2]] < 200 &][[All, 1]];

These are the respective vectors:

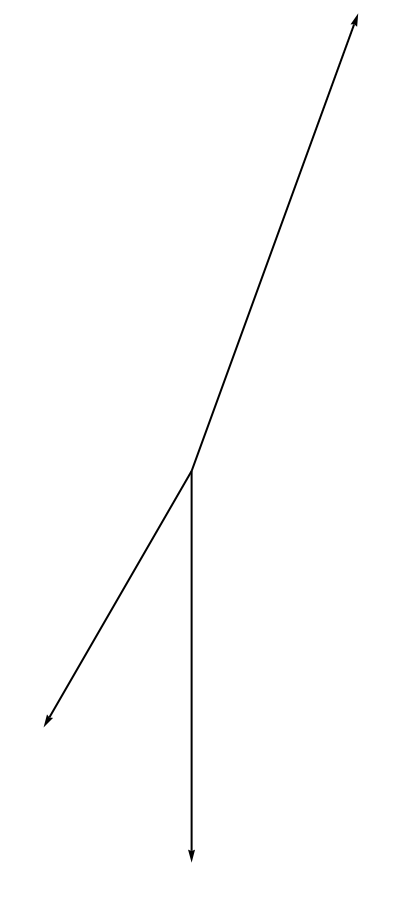

Graphics[Arrow[{{0, 0}, #}] & /@ QuantityMagnitude[WindVectorData[Entity["City", {"Dundee", "DundeeCity", "UnitedKingdom"}], adates169]]]

enter image description here

Graphics[Arrow[{{0, 0}, #}] & /@ QuantityMagnitude[WindVectorData[Entity["City", {"Dundee", "DundeeCity", "UnitedKingdom"}], adates230]]]

enter image description here

Now we can plot this for the different averaged directions.

Show[Graphics[{Red, Thick, Arrow[{{0, 0}, -Mean[QuantityMagnitude[WindVectorData[Entity["City", {"Dundee", "DundeeCity", "UnitedKingdom"}],adates169]]]}]}],
 Graphics[{Green, Thick, Arrow[{{0, 0}, -Mean[QuantityMagnitude[WindVectorData[Entity["City", {"Dundee", "DundeeCity", "UnitedKingdom"}],adates230]]]}]}]]

enter image description here

The pattern here is not so clear. This could be because of low wind speeds.

Following individual aeroplanes (short haul)

We can also follow an individual aeroplane (D-EACB) for, say, one month or so. Download the data and check that they are there:

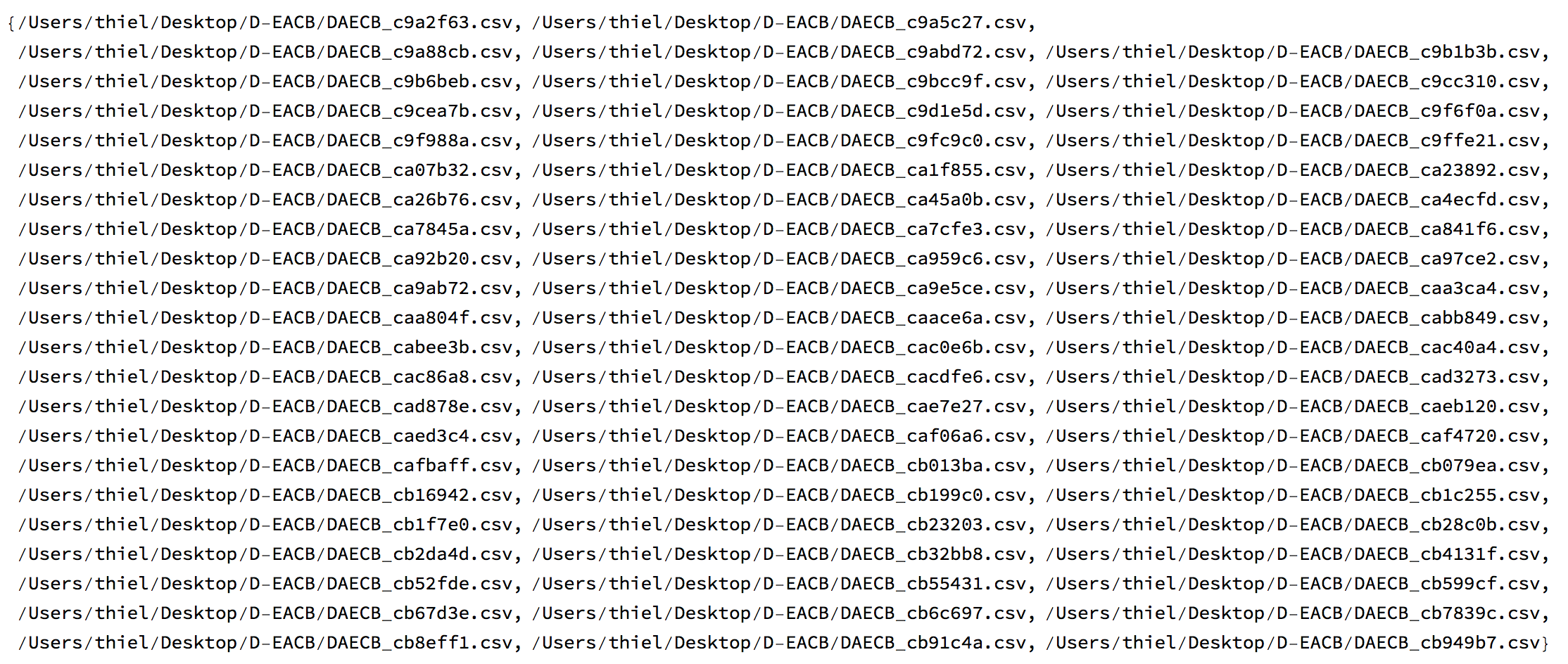

FileNames["*", "/Users/thiel/Desktop/D-EACB/"]

enter image description here

Import the data and plot everything:

flightdataDEACB = Import /@ FileNames["*", "/Users/thiel/Desktop/D-EACB/"];

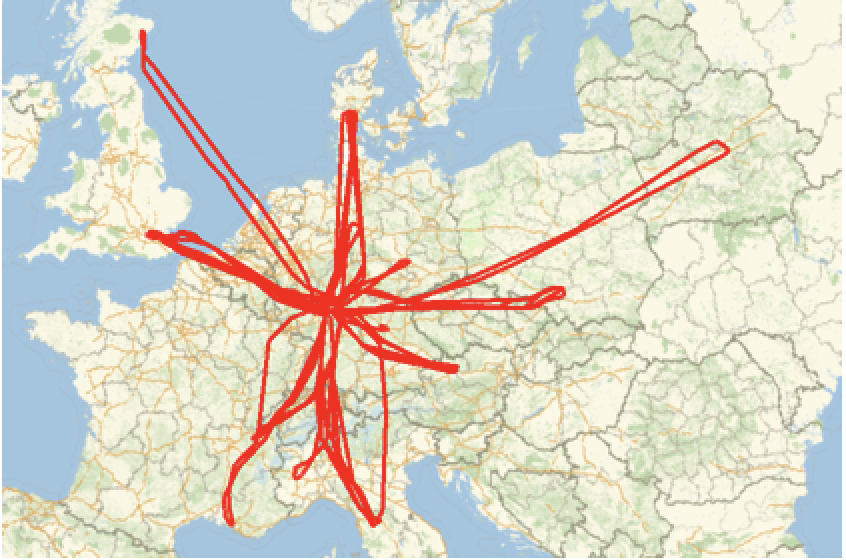

GeoGraphics[{Red, Thick, GeoPath@(ToExpression[#] & /@ Flatten[StringSplit[#, ","] & /@ #, 1]) & /@
flightdataDEACB[[All, 2 ;;]][[All, All, {4}]]}]

enter image description here

Of course, the same thing in 3D looks somewhat more impressive:

flightphsDEACB = ({Join[
         ToExpression[
          StringSplit[#[[1]], ","]], {ToExpression[#[[2]]]}],
        ToExpression[#[[3]]]} & /@ #[[2 ;;, {4, 5, 6}]] &) /@
   flightdataDEACB;
Show[Graphics3D[{Red, Thickness[0.004],
   Line[{#[[1]], #[[2]], -#[[3]]/30000.} & /@ #[[All, 1]] & /@
     flightphsDEACB]}, Lighting -> {{"Ambient", White}},
  ViewPoint -> {-10.`, 5.`, -5.`},
  ViewVertical -> {0.8924410944866072`, -0.23945064940819427`, \
-7.766116131708949`}],
 Graphics3D[{Texture[
    Image[GeoGraphics[{Opacity[0],
       GeoPath@(ToExpression[#] & /@
          Flatten[StringSplit[#, ","] & /@
            flightdataDEACBjoin[[All, {4}]], 1])},
      GeoBackground -> "Satellite",
      GeoRange -> {{Min[#[[All, 1, 1]]],
           Max[#[[All, 1, 2]]]}, {Min[#[[All, 2, 1]]],
           Max[#[[All, 2, 2]]]}} & @(GeoBounds[
           GeoPath@GeoPosition[#[[All, 1]]], Scaled[0.05]] & /@
         flightphsDEACB), GeoProjection -> "Equirectangular"]]],
   Polygon[(PadRight[#, 3] & /@
       Tuples[{{Min[#[[All, 1, 1]]],
            Max[#[[All, 1, 2]]]}, {Min[#[[All, 2, 1]]],

            Max[#[[All, 2, 2]]]}} & @(GeoBounds[
             GeoPath@GeoPosition[#[[All, 1]]], Scaled[0.05]] & /@
           flightphsDEACB)])[[{1, 2, 4, 3}]],
    VertexTextureCoordinates -> {{0, 0}, {1, 0}, {1, 1}, {0, 1}}]}],
 ImageSize -> Full]

enter image description here

Following individual aeroplanes (long haul)

All these flights are relatively short distance. I next choose a airbus A380 and look at its movements over a month or so.

flightdataGXLED = Import /@ FileNames["*", "/Users/thiel/Desktop/G-XLED/"];

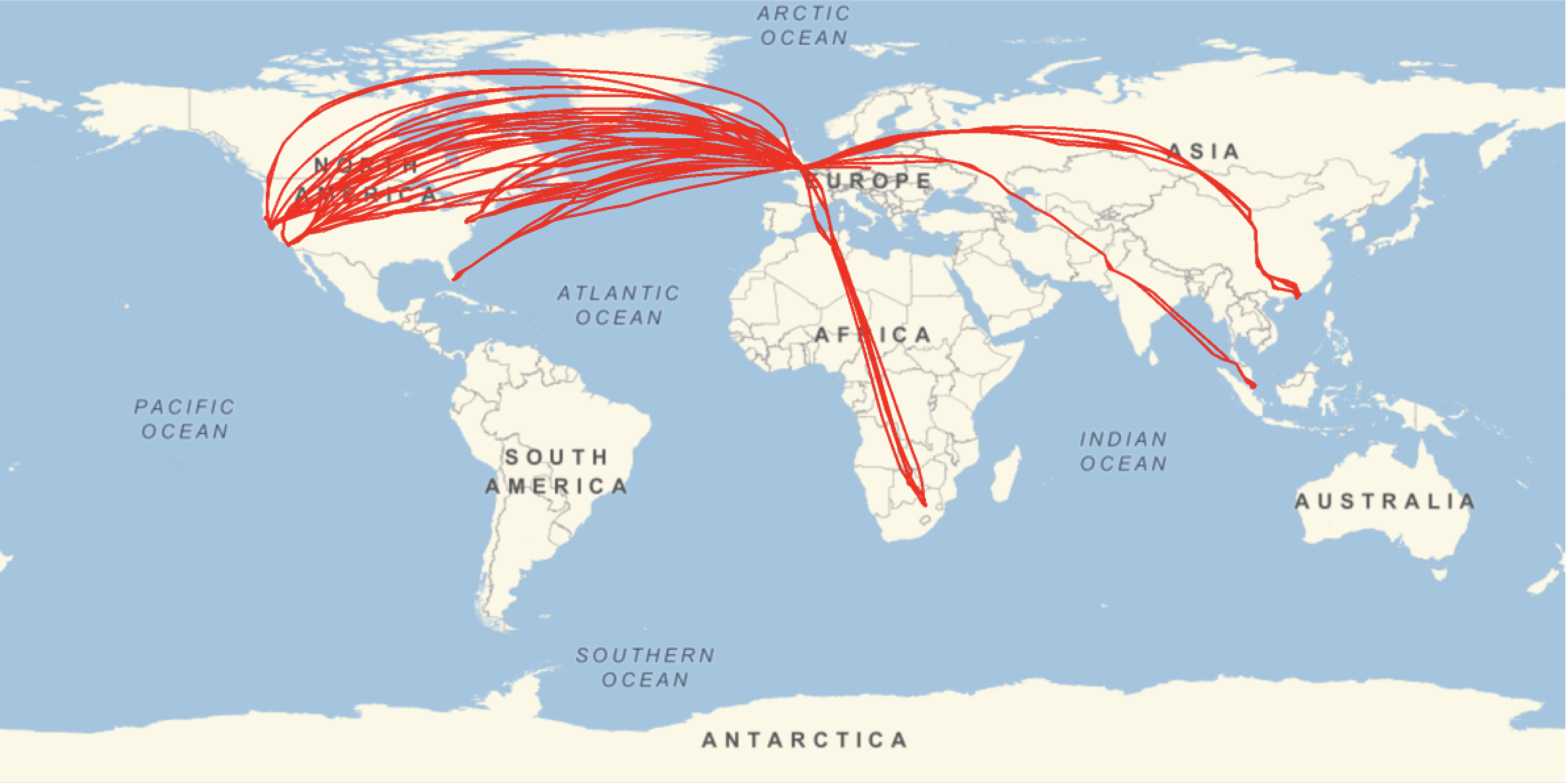

GeoGraphics[{Red, Thick, GeoPath@(ToExpression[#] & /@ Flatten[StringSplit[#, ","] & /@ #, 1]) & /@
 flightdataGXLED[[All, 2 ;;]][[All, All, {4}]]}, ImageSize -> Full]

enter image description here

Again a 3D representation makes the flight paths come out much better. First we prepare the data:

flightdataGXLEDjoin = Flatten[Select[flightdataGXLED[[All, 2 ;;]], Head[#] > 0 &], 1];
flightphsGXLED = Select[({Join[ToExpression[StringSplit[#[[1]], ","]], {ToExpression[#[[2]]]}], ToExpression[#[[3]]]} & /@ #[[2 ;;, {4, 5, 6}]] &) /@
flightdataGXLED, Length[#] > 0 &];

Then we plot:

Show[Graphics3D[{Red, Thickness[0.002], Line[{#[[1]], #[[2]], -#[[3]]/3000.} & /@ #[[All, 1]] & /@ flightphsGXLED]}, Lighting -> {{"Ambient", White}},
ViewPoint -> {-10.67632349817987`, 3.7276615038423772`, -4.664042818603161`}, ViewVertical -> {0.11539873519013898`, -0.022518333742098193`, -0.9930639740530294`}, ImagePadding -> None],
 Graphics3D[{Texture[Image[GeoGraphics[{Opacity[0], GeoPath@(ToExpression[#] & /@
 Flatten[StringSplit[#, ","] & /@ flightdataGXLEDjoin[[All, {4}]], 1])}, GeoBackground -> "Satellite", GeoRange -> {{Min[#[[All, 1, 1]]],
 Max[#[[All, 1, 2]]]}, {Min[#[[All, 2, 1]]], Max[#[[All, 2, 2]]]}} & @(GeoBounds[GeoPath@GeoPosition[#[[All, 1]]], Scaled[0.05]] & /@
 flightphsGXLED), GeoProjection -> "Equirectangular", ImagePadding -> None]]], Polygon[(PadRight[#, 3] & /@
 Tuples[{{Min[#[[All, 1, 1]]], Max[#[[All, 1, 2]]]}, {Min[#[[All, 2, 1]]], Max[#[[All, 2, 2]]]}} & @(GeoBounds[GeoPath@GeoPosition[#[[All, 1]]], Scaled[0.05]] & /@ flightphsGXLED)])[[{1, 2, 4, 3}]], VertexTextureCoordinates -> {{0, 0}, {1, 0}, {1, 1}, {0, 1}}]}], ImageSize -> Full, ImagePadding -> None]

enter image description here

Representing the flight paths on a sphere

Note that I had to use the Equirectangular projection. Of course, particularly when looking at these long distances it would be more appropriate to represent the Earth as a sphere. We need to convert the coordinates and rescale the altitudes.

toCoordinates[coords_] := FromSphericalCoordinates[{#[[1]], Pi/2 - #[[2]], Mod[Pi + #[[3]], 2 Pi, -Pi]}] & /@ (Flatten[{1., #/360*2 Pi}] & /@ coords)
lengths[inputdata_] := 2.*(inputdata/Max[inputdata])

The representation of the path is somewhat related to another representation I posted on this community.

myFlightPath[data_, radius_, scale_] :=
Show[SphericalPlot3D[radius, {u, 0, Pi}, {v, 0, 2 Pi}, Mesh -> None, TextureCoordinateFunction -> ({#5, 1 - #4} &),
PlotStyle -> Directive[Specularity[White, 10], Texture[Import["~/Desktop/backgroundimage.gif"]]],
Lighting -> "Neutral", Axes -> False, RotationAction -> "Clip", Boxed -> False, PlotPoints -> 100,
PlotRange -> {{-3, 3}, {-3, 3}, {-3, 3}}, ImageSize -> Full], Graphics3D[Flatten[{Green, Thickness[0.004],
Line[(radius + #[[2]]*scale)*#[[1]] & /@ Transpose[{toCoordinates[#[[All, 1]]], lengths[#[[All, 2]]]} &@({#[[1]], 1. #[[2]]} & /@ data)]]}]]]

Let's use that to plot one trajectory.

flightpath = {ToExpression[StringSplit[#[[4]], ","]], #[[6]]} & /@ flightdataGXLED[[2, 2 ;;]];

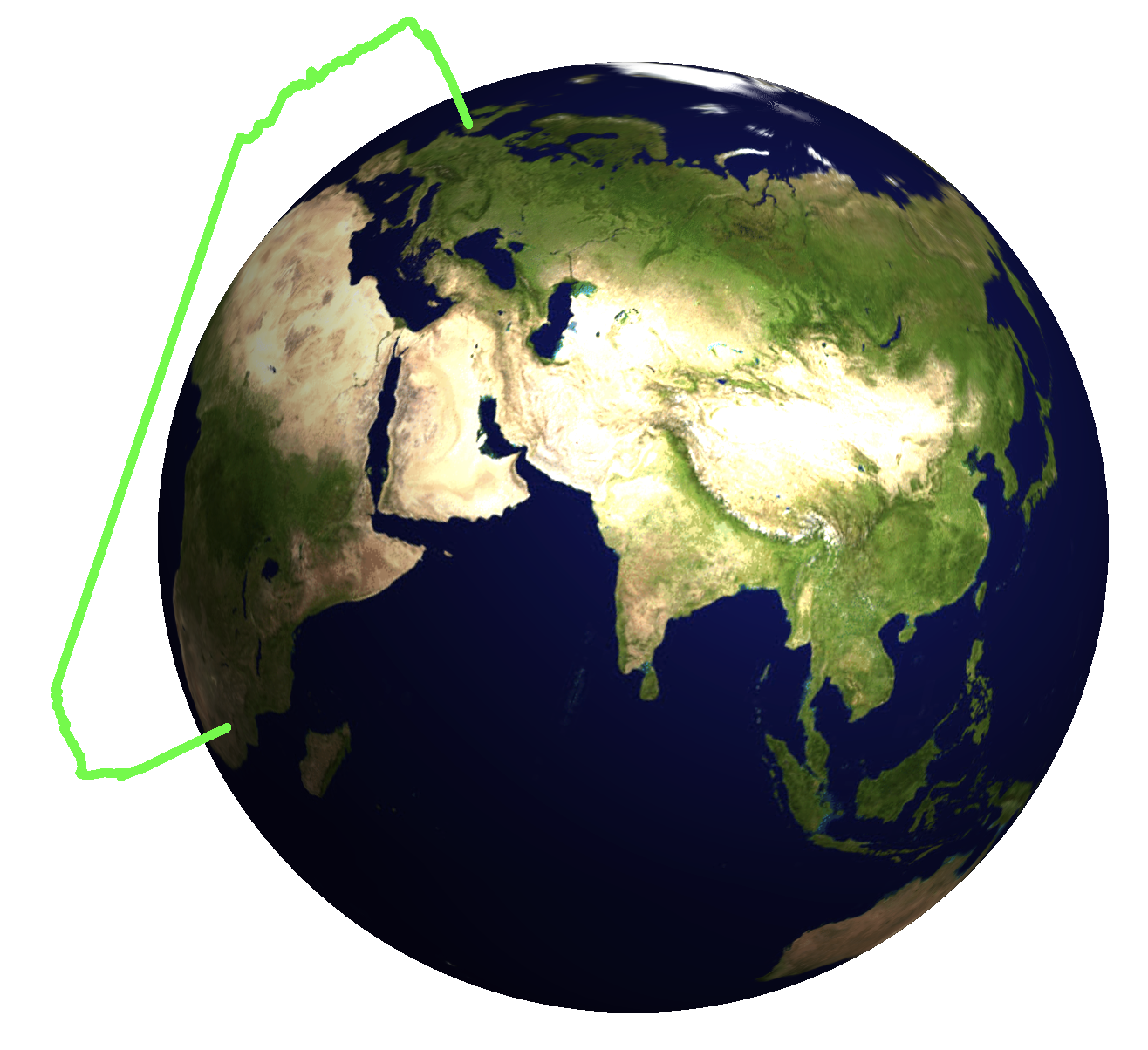

myFlightPath[flightpath, 2, 1/3.]

enter image description here

If we want to plot multiple flights we should modify the function slightly.

myFlightPathMulti[data_, radius_, scale_] :=
 Show[SphericalPlot3D[radius, {u, 0, Pi}, {v, 0, 2 Pi}, Mesh -> None, TextureCoordinateFunction -> ({#5, 1 - #4} &),
 PlotStyle -> Directive[Specularity[White, 10], Texture[Import["~/Desktop/backgroundimage.gif"]]],
 Lighting -> "Neutral", Axes -> False, RotationAction -> "Clip", Boxed -> False, PlotPoints -> 100,
 PlotRange -> {{-3, 3}, {-3, 3}, {-3, 3}}, ImageSize -> Full],
Graphics3D[Flatten[{RandomColor[], Thickness[0.004], Line[(radius + #[[2]]*scale)*#[[1]] & /@
Transpose[{toCoordinates[#[[All, 1]]], lengths[#[[All, 2]]]} &@({#[[1]], 1. #[[2]]} & /@ #)]]}] & /@ data]]

Let's prepare the data.

flightpathsmult =
  Join[{{#[[1, 1]], 0.}}, #, {{#[[-1, 1]], 0.}}] & /@ Select[({ToExpression[StringSplit[#[[4]], ","]], #[[6]]} & /@ # & /@ flightdataGXLED[[All, 2 ;;]]), Length[#] > 1 &];

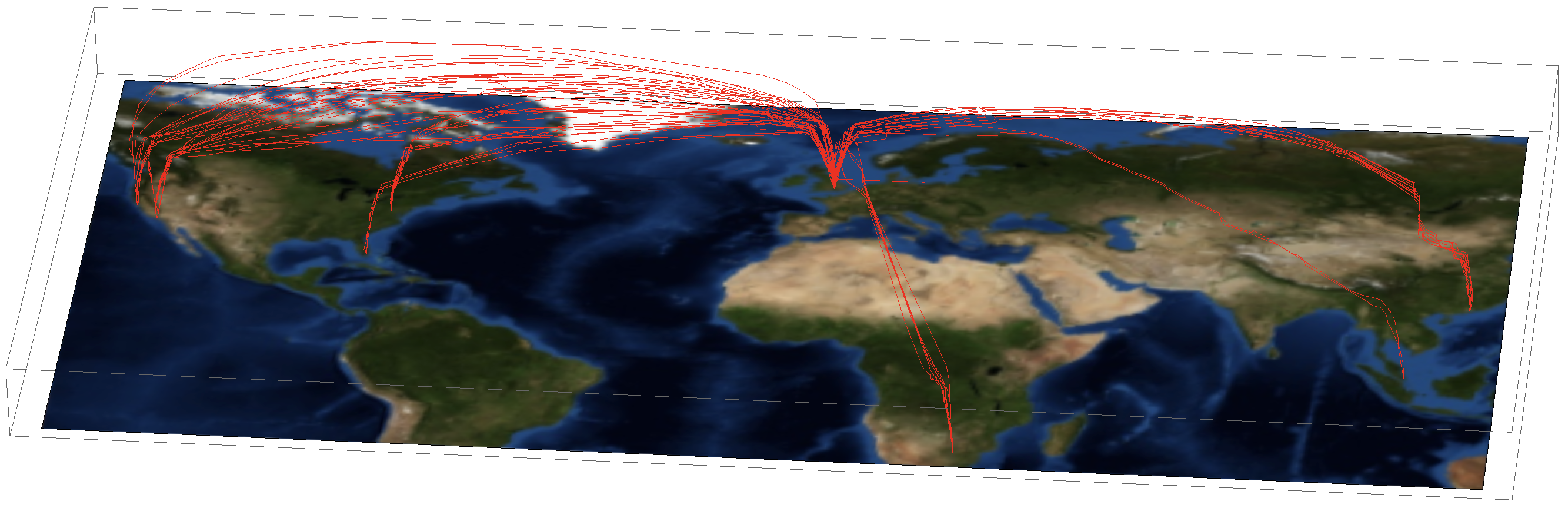

The trajectories seem to come out fine:

Graphics3D[
 Flatten[{RandomColor[], Thickness[0.01], Line[(2. + #[[2]]*0.3)*#[[1]] & /@
 Transpose[{toCoordinates[#[[All, 1]]], lengths[#[[All, 2]]]} &@({#[[1]], 1. #[[2]]} & /@ #)]]}] & /@ flightpathsmult[[1 ;; 10]]]

enter image description here

Note, that there are some "straight lines" in the trajectories. They correspond to a lack of data point over unpopulated areas. Plotting all trajectories on the globe looks like this:

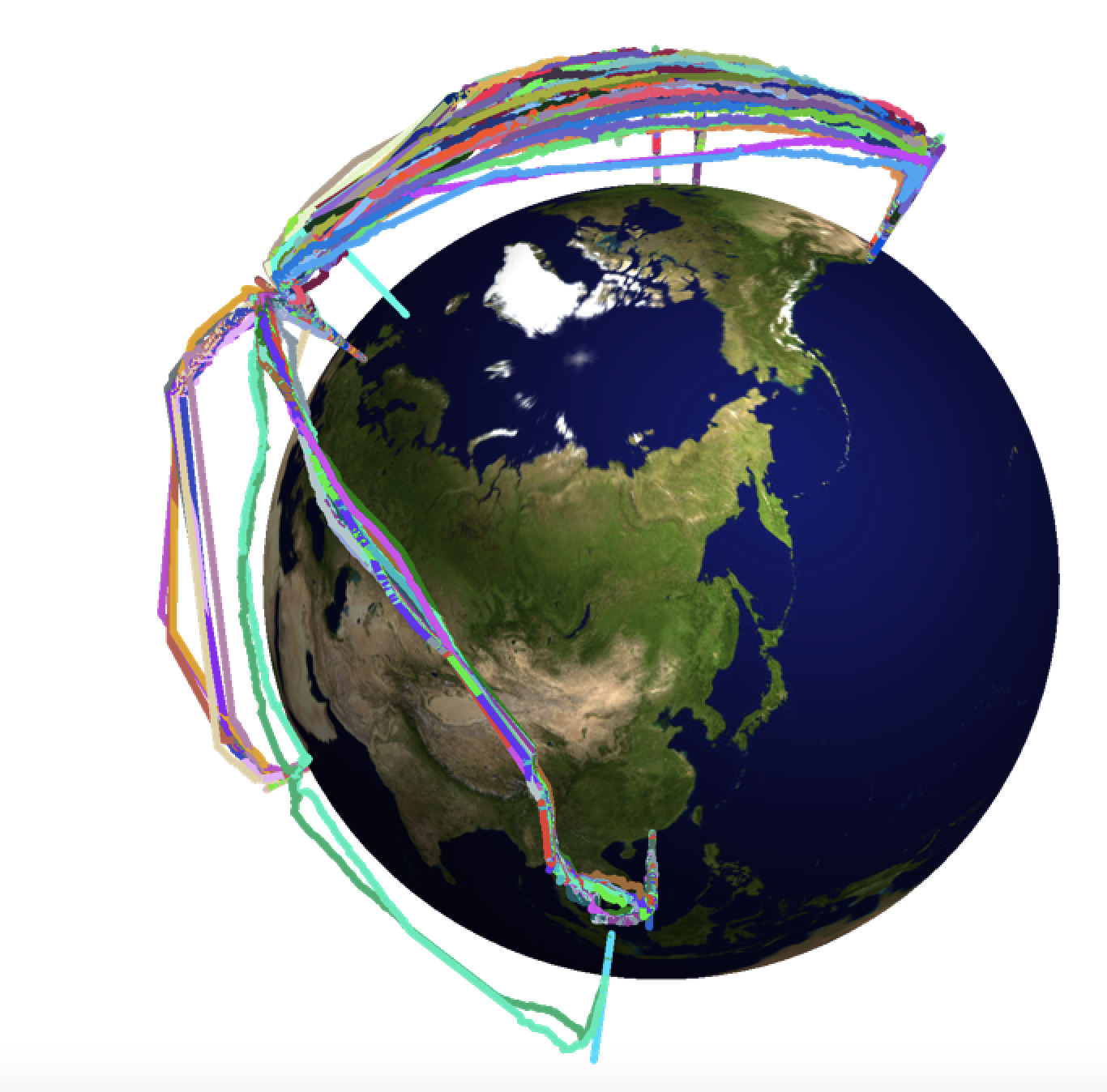

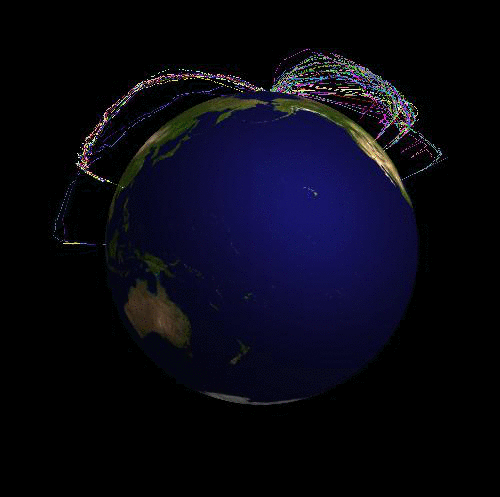

myFlightPathMulti[flightpathsmult, 2., 1/3.]

enter image description here

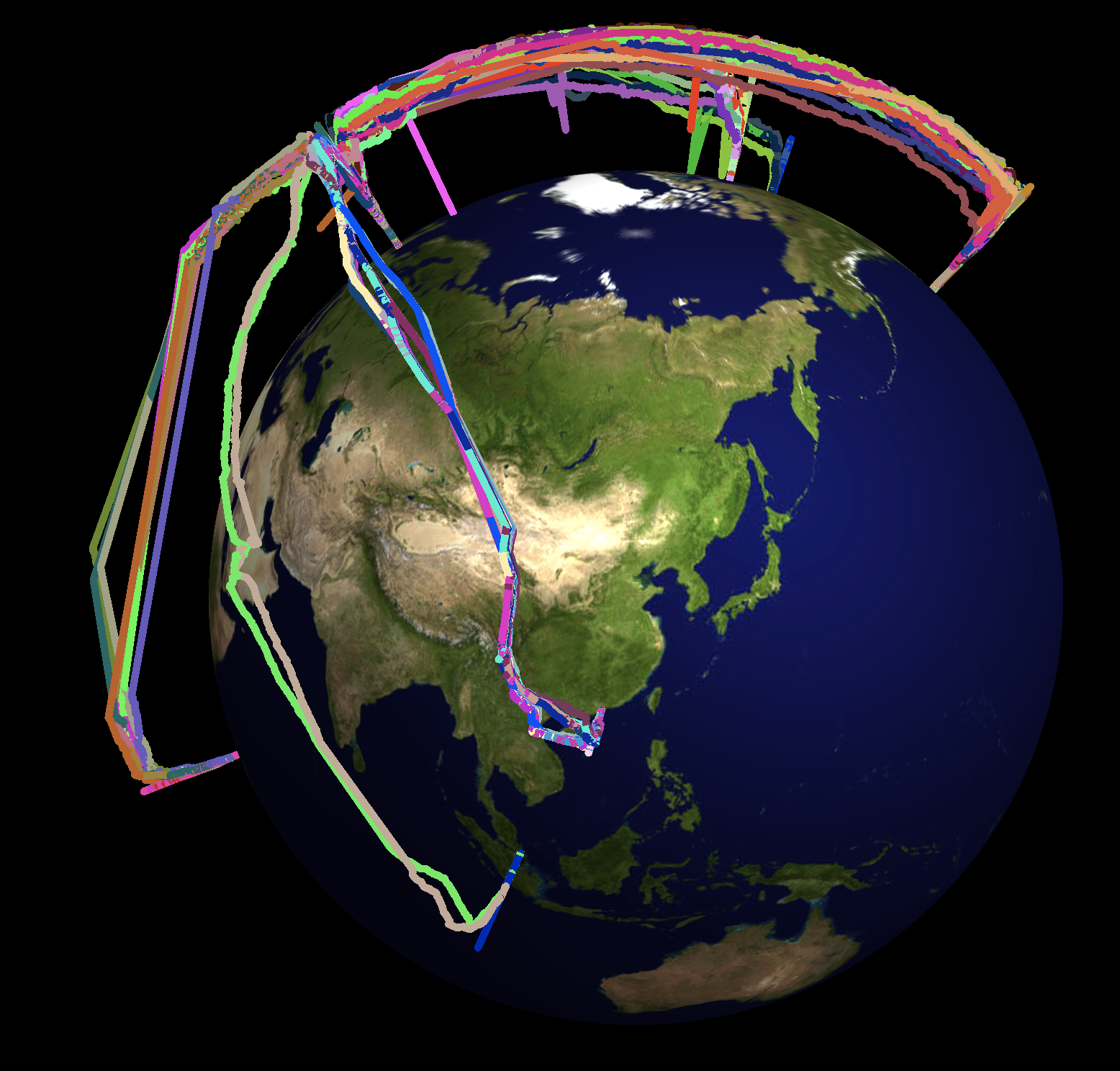

Let's choose a black background:

myFlightPathMultiBlack[data_, radius_, scale_] :=
 Show[SphericalPlot3D[radius, {u, 0, Pi}, {v, 0, 2 Pi}, Mesh -> None, TextureCoordinateFunction -> ({#5, 1 - #4} &),
 PlotStyle -> Directive[Specularity[White, 10], Texture[Import["~/Desktop/backgroundimage.gif"]]],
Lighting -> "Neutral", Axes -> False, RotationAction -> "Clip", Boxed -> False, PlotPoints -> 100,
PlotRange -> {{-3, 3}, {-3, 3}, {-3, 3}}, ImageSize -> Full, Background -> Black],
Graphics3D[Flatten[{RandomColor[], Thickness[0.004], Line[(radius + #[[2]]*scale)*#[[1]] & /@
Transpose[{toCoordinates[#[[All, 1]]], lengths[#[[All, 2]]]} &@({#[[1]], 1. #[[2]]} & /@ #)]]}] & /@ data, Background -> Black]]

and plot:

myFlightPathMultiBlack[flightpathsmult, 2., 1/3.]

enter image description here

This gives the animation at the beginning of this post.

Further Information that we can extract from the data

We can also use the data to get some information about the usage of aeroplanes. We can take the plane with the call sign D-EACB and check for the percentage of time that it is airborne. We first calculate the time window I have data for:

approxTimeWindowDEACB =
 Differences[{Select[flightdataDEACB[[1]], #[[-3]] > 10 &][[1, 1]], Select[flightdataDEACB[[Length[flightdataDEACB]]], #[[-3]] > 10 &][[-1, 1]]}][[1]]

This gives 1046462 and is given in seconds. To compute the (approximate) time the plane is airborne we have to check for altitudes larger than some threshold.

approxTimeinAirDEACB =
Total[Flatten[Table[Differences@Reverse@Select[flightdataDEACB[[k]], #[[-3]] > 10 &][[All, 1]][[{1, -1}]], {k, 1, Length[flightdataDEACB]}]]]

which gives 247835 seconds. Now, we can calculate the respective fraction.

N[approxTimeinAirDEACB/approxTimeWindowDEACB]

which gives 0.236831. So this is approximately 24% of the time. Given that planes on short haul flights are mostly grounded over night and that they have substantial time at the airports this seems to be reasonable. Let's do the same for the A 380.

approxTimeWindowGXLED =
 Differences[Flatten[Select[Table[Select[Select[flightdataGXLED, Length[#] > 1 &][[k]], #[[-3]] > 10 &], {k, 1, Length[Select[flightdataGXLED, Length[#] > 1 &]]}], Length[#] > 1 &], 1][[{1, -1}, 1]]][[1]]

which is 4258510, and

approxTimeinAirGXLED =
 Total[Select[Flatten[Table[If[Length[Select[flightdataGXLED[[k]], #[[-3]] > 10 &][[All, 1]]] > 1,
 Differences@Reverse@Select[flightdataGXLED[[k]], #[[-3]] > 10 &][[All, 1]][[{1, -1}]]], {k, 1, Length[flightdataGXLED]}]], NumberQ]]

which is 2445537. This gives

N[approxTimeinAirGXLED/approxTimeWindowGXLED]

so about 57%; hence a more efficient aeroplane use. We can now also determine the average speed when the plane is moving.

N@Mean[DeleteCases[Flatten[flightdataGXLED[[All, 2 ;;]], 1][[All, 6]],0]]
(*366.84*)

This is 367 kts or

UnitConvert[366.84 Quantity[1, "Knots"], Quantity[1, (("Kilometers")/("Hours"))]]

680 km/h. Note that this is a rather inappropriate estimate, because the data is not necessarily sampled uniformly and especially data from over the oceans might be missing. If we accept that issue we can calculate the histogram of the data:

Histogram[DeleteCases[Flatten[flightdataGXLED[[All, 2 ;;]], 1][[All, 6]], 0], Automatic, "PDF", FrameLabel -> {"Speed in kts", "Probablity"},
LabelStyle -> Directive[Bold, 16], ImageSize -> Large, PlotTheme -> "Marketing", ColorFunction -> "TemperatureMap"]

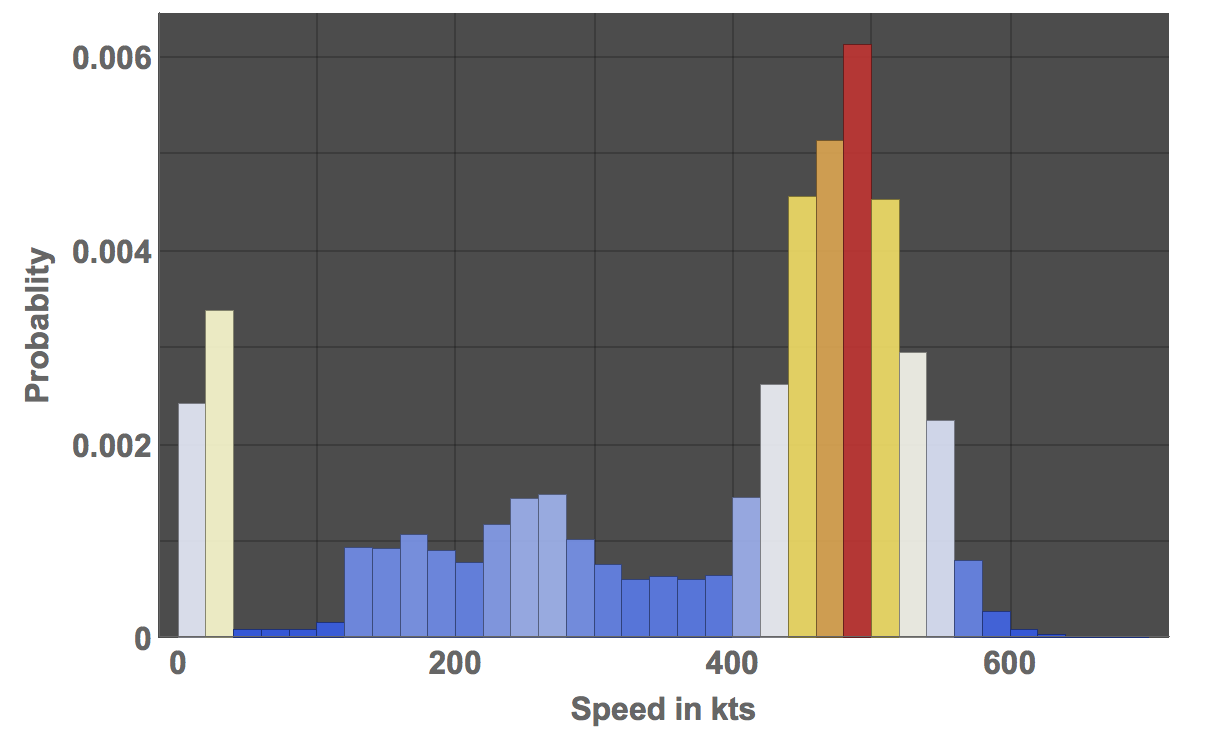

enter image description here

This graphic suggests that the fast speed flight time is vastly underestimated. The maximum speed is

Max@DeleteCases[Flatten[flightdataGXLED[[All, 2 ;;]], 1][[All, 6]], 0]
(*697*)

which is a ground speed of

N@UnitConvert[697 Quantity[1, "Knots"], Quantity[1, (("Kilometers")/("Hours"))]]

1290.84 km.h. We can compare this to the speed of sound in air.

UnitConvert[ThermodynamicData["Air", "SoundSpeed", {"Temperature" -> Quantity[20, "DegreesCelsius"], "Pressure" -> Quantity[1, "Atmospheres"]}], "Kilometers"/"Hours"]

which gives 1236.18 km/h. So the maximum speed is

1290.84/1236.16

104% of the speed of sound, or Mach 1 (at ground level), which is a bit on the high side. Note that the top speed of the A380 is given as 1020 km/h. The peak in the histogram at cruising speed is at around 490 kts which is in fact the maximal speed of the A380 as given in Wikipedia. The higher than expected ground speed might be due to the jet stream - even though speeds of more than Mach 1 seem to be unlikely. There are some reports of this happening though.

This is only a very brief description of what can be achieved with the fantastic data from flightradar24. I encourage everyone to join that community and contribute data. The data provided on that site and the power of the Wolfram Language will allow you to gain insight into what is going on in the skies.

Cheers,

Marco

POSTED BY: Marco Thiel
Answer
2 months ago

Very cool to see how it is done now! Thanks for sharing! I've done this kind of visualizations back in 2009 (i think I was still on Mathematica 6!) with some GPS data I recorded myself in a flight. It sure is now quite a bit easier to work with gps data and maps and so on!

Extract[img, Position[img, #]]

Why not use Cases or even FirstCase ? Grounds speeds above Mach 1 do indeed occur because of ~200km/h tailwinds! From the PDF 625 knots seems to be the limit, 697 might also contain measurement errors?

POSTED BY: Sander Huisman
Answer
2 months ago

Fascinating! Specifying SphericalRegion->True in your animation should keep it from bumping around and zooming in and out.

POSTED BY: Christopher Carlson
Answer
2 months ago

I was always doing this manually use ViewAngle, and ViewPoint... Thanks for the tip!

POSTED BY: Sander Huisman
Answer
2 months ago

Dear Christopher,

thank you for that hint. It will definitely make the video better! I'll try to run it later.

As a matter of fact, I first wanted to make a video in which the view point changes and not only rotates around the planet but also closes in and moves away again. It would be nice to approach the trajectories of the planes and "fly through beneath them". Some time ago I saw a video on this website (but not the Community) where they explained how to make the "camera" move exactly as one wants.

Cheers,

Marco

POSTED BY: Marco Thiel
Answer
2 months ago

Great post and awesome 3D flight visualizations! Thanks for sharing.

W|A also provides a lot of info about flights, at least in the US. For example:

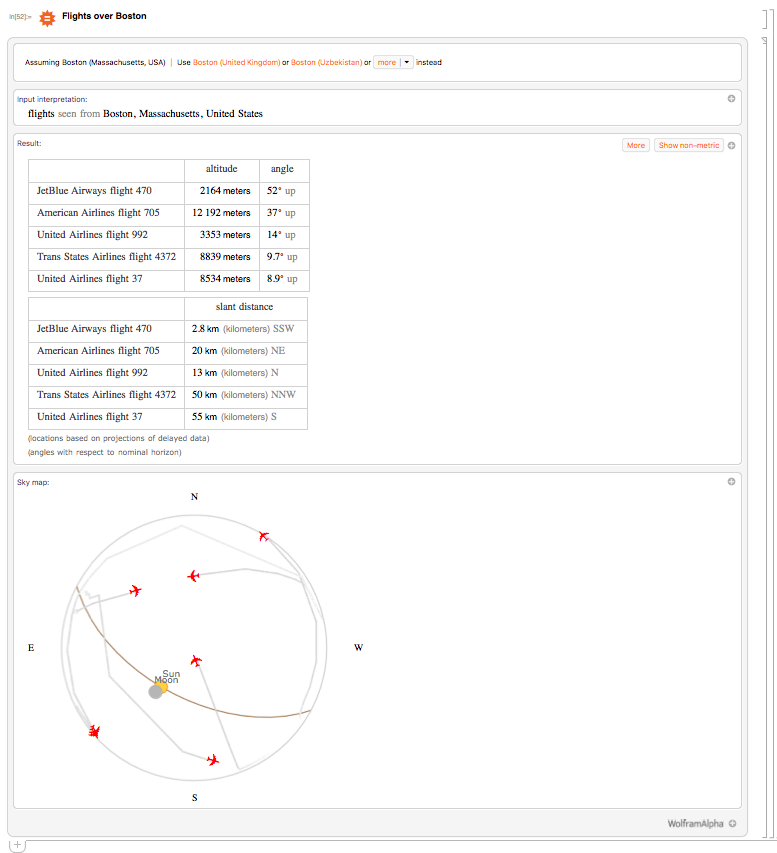

== Flights over Boston

Gives the following W|A result: enter image description here

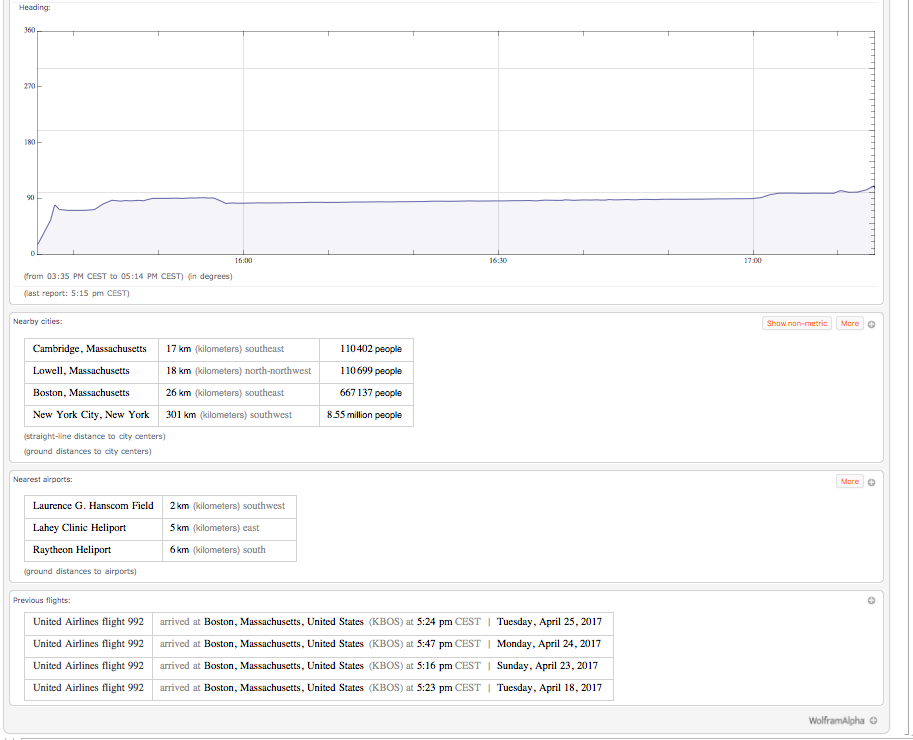

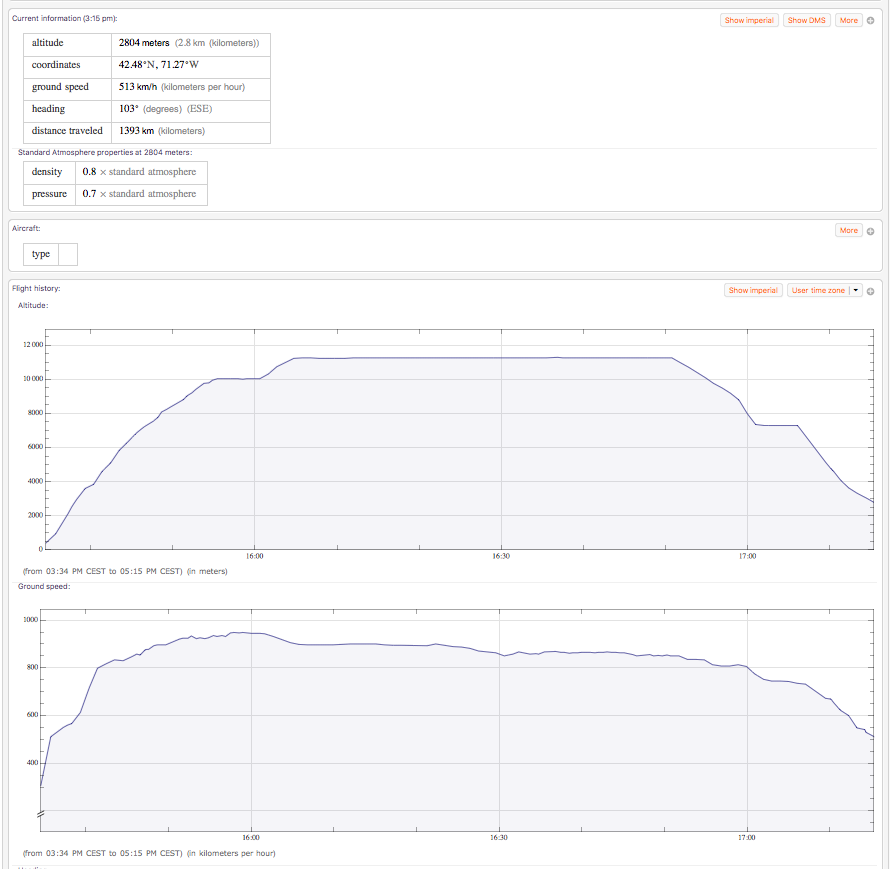

And looking closer to one of those flights gives even info about its "Altitude", "Flight Path", "Ground Speed", ... enter image description here enter image description here enter image description here

In particular, I'm interested in getting the "Flight path":

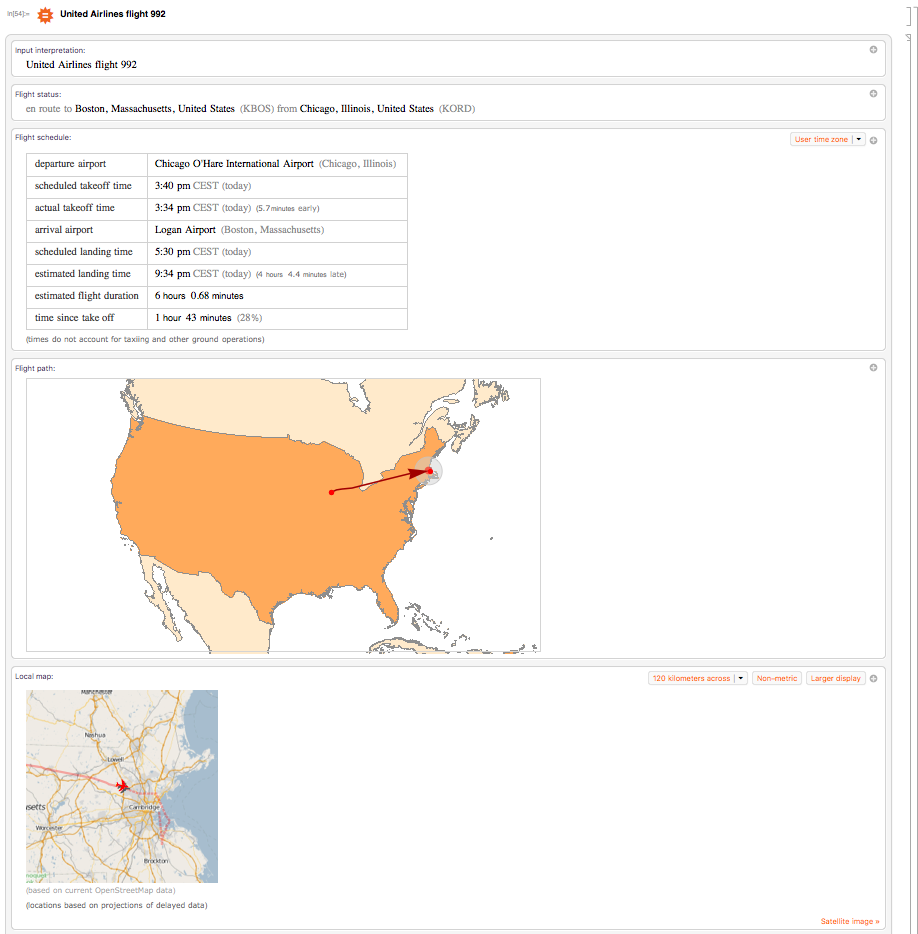

WolframAlpha["United Airlines flight 992", {{"Location:FlightData", 1}, "Content"}]

enter image description here

But my question is the following:

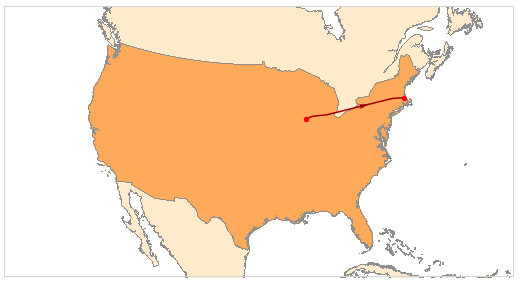

Can one get the coordinates from such a "Flight path" and plot it using GeoPath in GeoGraphics?

POSTED BY: Jofre Espigule
Answer
2 months ago

Dear Jofre,

thank you for your words.

I had also thought about using Wolfram Alpha, but I had trouble extracting the data. Also, commands like

==flights over Aberdeen

do not seem to work very well for many places in Europe. It would be fantastic if we could complement the data with W|A data. I don't know how to do that.

Cheers,

Marco

POSTED BY: Marco Thiel
Answer
2 months ago

enter image description here - Congratulations! This post is now a Staff Pick! Thank you for your wonderful contributions. Please, keep them coming!

POSTED BY: Moderation Team
Answer
2 months ago

Group Abstract Group Abstract
