Trouble with a C++ Code compilation using VS 2017

GROUPS:

I am calling a C++compiler from VS2017 . But getting an error.

Needs["CCompilerDriver`"]
CCompilers[]

hello = CreateExecutable["

    // Hello100.cpp : Defines the entry point for the console \
application.
    //

    #include " stdafx.h "
    #include <iostream>
    // i/o example
    // stringstreams

    #include <string>
    #include <sstream>
    using namespace std;

    int main()
    {
        string mystr;
        float price = 0;
        int quantity = 0;
        int next;
        cout << " Enter price : ";
        getline(cin, mystr);
        stringstream(mystr) >> price;
        cout << " Enter quantity : ";
        getline(cin, mystr);
        stringstream(mystr) >> quantity;
        cout << " Total price : " << price * quantity << endl;
        cin >> next;
        return 0;
       }

         ", "hellomyfirst"];

Import["!" <> QuoteFile[hellomyfirst], Text]

I am getting the following error

In[32]:= Import["!" <> QuoteFile[hellomyfirst], Text]

During evaluation of In[32]:= StringJoin::string: String expected at position 2 in !<>QuoteFile[hellomyfirst].

During evaluation of In[32]:= Import::chtype: First argument !<>QuoteFile[hellomyfirst] is not a valid file, directory, or URL specification.

Out[32]= $Failed

Why am not getting the output ? The code compiled in Visual Studio ok.

1st UPDATE

The Visual Studio 2017 C++ SDK option will work only under Windows 10. I was running this under windows 8.1. I updated to W10 and got it to work.

Attachments:
POSTED BY: Jose Calderon
Answer
1 month ago

Jose,

It looks like you need to escape the " and \ symbols (\" and \\)

POSTED BY: Sean Cheren
Answer
1 month ago

I also needed to add Language -> "C++"

Import["!" <> QuoteFile[hellomyfirst], "Text"] (needs " around Text) seems to hang waiting for input.. It finishes executing if I remove the input code.

POSTED BY: Sean Cheren
Answer
1 month ago

Do you mean that I need to eliminate the comment lines or something else?

POSTED BY: Jose Calderon
Answer
1 month ago

I had to remove getline and stringstream lines since they were waiting for input and hanging the kernel. I would look at this post for some info on how to open a pipe as an alternative: https://stackoverflow.com/questions/6462275/mathematica-and-c-c-exchanging-data

POSTED BY: Sean Cheren
Answer
1 month ago

I am not sure what you mean.. DO you mean to eliminate the comment lines? Or something else?

I had to remove getline and stringstream lines since they were waiting for input and hanging the kernel. I would look at this post for some info on how to open a pipe as an alternative: https://stackoverflow.com/questions/6462275/mathematica-and-c-c-exchanging-data

It be great if you post the code since I am not able follow the changes that you proposed here .

POSTED BY: Jose Calderon
Answer
1 month ago

In[25]:= Needs["CCompilerDriver`"] CCompilers[]

hello = CreateExecutable["

      // Hello100.cpp : Defines the entry point for the console application.

      //#include \"stdafx.h\"
      #include <iostream>
      // i/o example
      // stringstreams
      #include <string>
      #include <sstream>
      using namespace std;

      int main()
      {
          string mystr;
          float price = 0;
          int quantity = 0;
          int next;
          cout << \" Enter price : \";
          //getline(cin, mystr);
          //stringstream(mystr) >> price;
          cout << \" Enter quantity : \";
          //getline(cin, mystr);
          //stringstream(mystr) >> quantity;
          cout << \" Total price : \" << price * quantity << endl;
          //cin >> next;
          return 0;
     }
  ", "hellomyfirst", Language -> "C++"]



Out[26]= {{"Name" -> "Visual Studio",
  "Compiler" ->
   CCompilerDriver`VisualStudioCompiler`VisualStudioCompiler,
  "CompilerInstallation" ->
   "C:\\Program Files (x86)\\Microsoft Visual \
Studio\\2017\\Professional",
  "CompilerName" -> Automatic}, {"Name" -> "Visual Studio",
  "Compiler" ->
   CCompilerDriver`VisualStudioCompiler`VisualStudioCompiler,
  "CompilerInstallation" ->
   "C:\\Program Files (x86)\\Microsoft Visual Studio 12.0\\",
  "CompilerName" -> Automatic}}

Out[27]= "C:\\Users\\scheren\\AppData\\Roaming\\Mathematica\\\
SystemFiles\\LibraryResources\\Windows-x86-64\\hellomyfirst.exe"

In[30]:= Import["!" <> QuoteFile[hello], "Text"]

Out[30]= " Enter price :  Enter quantity :  Total price : 0"
POSTED BY: Sean Cheren
Answer
1 month ago

I am calling a C++compiler from VS2017 . But getting an error.

Needs["CCompilerDriver`"]
CCompilers[]

hello = CreateExecutable["

    // Hello100.cpp : Defines the entry point for the console \
application.
    //

    #include " stdafx.h "
    #include <iostream>
    // i/o example
    // stringstreams

    #include <string>
    #include <sstream>
    using namespace std;

    int main()
    {
        string mystr;
        float price = 0;
        int quantity = 0;
        int next;
        cout << " Enter price : ";
        getline(cin, mystr);
        stringstream(mystr) >> price;
        cout << " Enter quantity : ";
        getline(cin, mystr);
        stringstream(mystr) >> quantity;
        cout << " Total price : " << price * quantity << endl;
        cin >> next;
        return 0;
       }

         ", "hellomyfirst"];

Import["!" <> QuoteFile[hellomyfirst], Text]

I am getting the following error

In[32]:= Import["!" <> QuoteFile[hellomyfirst], Text]

During evaluation of In[32]:= StringJoin::string: String expected at position 2 in !<>QuoteFile[hellomyfirst].

During evaluation of In[32]:= Import::chtype: First argument !<>QuoteFile[hellomyfirst] is not a valid file, directory, or URL specification.

Out[32]= $Failed

Why am not getting the output ? The code compiled in VIsual Studio ok.

POSTED BY: Jose Calderon
Answer
1 month ago

This really puzzles me. I am runnig exacty your same code but returns errors in my computer.

In[1]:= Needs["CCompilerDriver`"]
CCompilers[]

Out[2]= {{"Name" -> "Visual Studio",
  "Compiler" ->
   CCompilerDriver`VisualStudioCompiler`VisualStudioCompiler,
  "CompilerInstallation" ->
   "C:\\Program Files (x86)\\Microsoft Visual \
Studio\\2017\\Community",
  "CompilerName" -> Automatic}, {"Name" -> "Visual Studio",
  "Compiler" ->
   CCompilerDriver`VisualStudioCompiler`VisualStudioCompiler,
  "CompilerInstallation" ->
   "C:\\Program Files (x86)\\Microsoft Visual \
Studio\\2017\\BuildTools", "CompilerName" -> Automatic}}

In[3]:= hello = CreateExecutable["
        // Hello100.cpp : Defines the entry point for the console \
application.
        //#include \"stdafx.h\"
        #include <iostream>
        // i/o example
        // stringstreams
        #include <string>
        #include <sstream>
        using namespace std;
        int main()
        {
            string mystr;
            float price = 0;
            int quantity = 0;
            int next;
            cout << \" Enter price : \";
            //getline(cin, mystr);
            //stringstream(mystr) >> price;
            cout << \" Enter quantity : \";
            //getline(cin, mystr);
            //stringstream(mystr) >> quantity;
            cout << \" Total price : \" << price * quantity << endl;
            //cin >> next;
            return 0;
       }
    ", "hellomyfirst", Language -> "C++"]



During evaluation of In[3]:= CreateExecutable::cmperr: Compile error: C:\Program Files (x86)\Microsoft Visual Studio\2017\Community\VC\Tools\MSVC\14.13.26128\include\crtdefs.h(10): fatal error C1083: Cannot open include file: 'corecrt.h': No such file or directory

Out[3]= $Failed

In[4]:= Import["!" <> QuoteFile[hello], "Text"]

During evaluation of In[4]:= StringJoin::string: String expected at position 2 in !<>QuoteFile[$Failed].

During evaluation of In[4]:= Import::chtype: First argument !<>QuoteFile[$Failed] is not a valid file, directory, or URL specification.

Out[4]= $Fail

I notice that you are using the the 2017 Profesional and the VS 2012. Is there anything reported from 2017 COmmunity that might limit this compilation?

POSTED BY: Jose Calderon
Answer
1 month ago

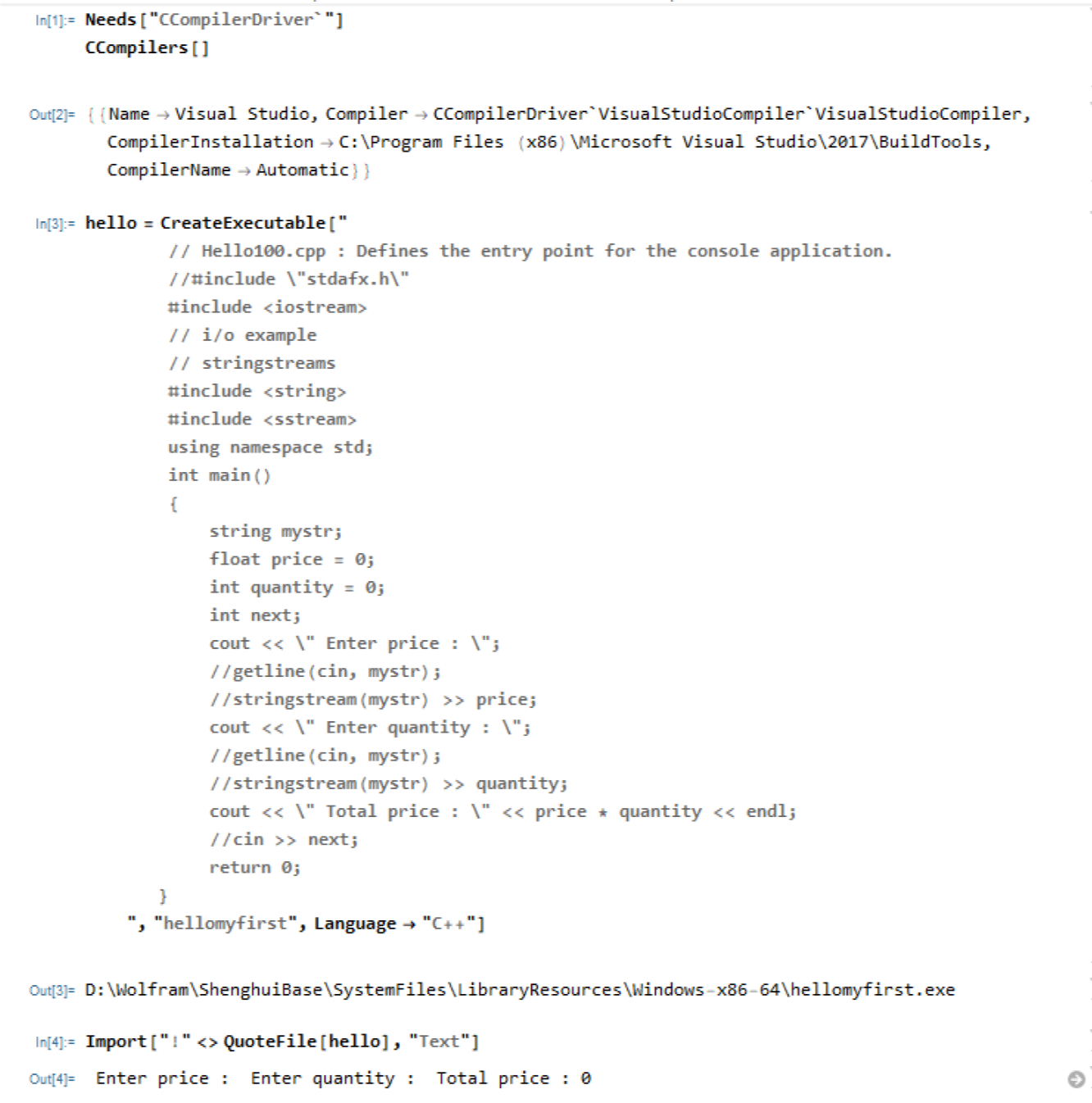

I installed build tools only on my surface pro and V11.3. Run the example code without issue.

onlybuildtools

POSTED BY: Shenghui Yang
Answer
1 month ago

I thanks for all your comments. I tested on Mac OS X and compiles flawlessly under gcc and Clang compilers. Still puzzles why not getting my Windows 10 VS2017 to compile. I have tested setting the options for pointing specific to the BuildTool compiler but still getting an error. It looks like a problem with WM detecting the libraries. but I am not an authority and not able to be sure if the problem is with the VS installation itself.

Needs["CCompilerDriver`"]
CCompilers[]
hello = CreateExecutable["
        // Hello100.cpp : Defines the entry point for the console \
application.
        //#include \"stdafx.h\"
        #include <iostream>
        // i/o example
        // stringstreams
        #include <string>
        #include <sstream>
        using namespace std;
        int main()
        {
            string mystr;
            float price = 0;
            int quantity = 0;
            int next;
            cout << \" Enter price : \";
            //getline(cin, mystr);
            //stringstream(mystr) >> price;
            cout << \" Enter quantity : \";
            //getline(cin, mystr);
            //stringstream(mystr) >> quantity;
            cout << \" Total price : \" << price * quantity << endl;
            //cin >> next;
            return 0;
       }
    ", "hellomyfirst", Language -> "C++",
  "Name" -> "Visual Studio",
  "Compiler" ->
   CCompilerDriver`VisualStudioCompiler`VisualStudioCompiler,
  "CompilerInstallation" ->
   "C:\\Program Files (x86)\\Microsoft Visual \
Studio\\2017\\BuildTools", "CompilerName" -> Automatic
  ]
Import["!" <> QuoteFile[hello], "Text"]

Here is the output:

Out[11]= {{"Name" -> "Visual Studio", "Compiler" ->
CCompilerDriverVisualStudioCompilerVisualStudioCompiler,
"CompilerInstallation" -> "C:\Program Files (x86)\Microsoft Visual \ Studio\2017\Community", "CompilerName" -> Automatic}, {"Name" -> "Visual Studio", "Compiler" ->
CCompilerDriverVisualStudioCompilerVisualStudioCompiler,
"CompilerInstallation" -> "C:\Program Files (x86)\Microsoft Visual \ Studio\2017\BuildTools", "CompilerName" -> Automatic}}

Out[2]= {{"Name" -> "Visual Studio", "Compiler" ->
CCompilerDriverVisualStudioCompilerVisualStudioCompiler,
"CompilerInstallation" -> "C:\Program Files (x86)\Microsoft Visual \ Studio\2017\Community", "CompilerName" -> Automatic}, {"Name" -> "Visual Studio", "Compiler" ->
CCompilerDriverVisualStudioCompilerVisualStudioCompiler,
"CompilerInstallation" -> "C:\Program Files (x86)\Microsoft Visual \ Studio\2017\BuildTools", "CompilerName" -> Automatic}}

During evaluation of In[1]:= CreateExecutable::cmperr: Compile error: C:\Program Files (x86)\Microsoft Visual Studio\2017\BuildTools\VC\Tools\MSVC\14.13.26128\include\crtdefs.h(10): fatal error C1083: Cannot open include file: 'corecrt.h': No such file or directory

Out[3]= $Failed

During evaluation of In[1]:= StringJoin::string: String expected at position 2 in !<>QuoteFile[$Failed].

During evaluation of In[1]:= Import::chtype: First argument !<>QuoteFile[$Failed] is not a valid file, directory, or URL specification.

Out[4]= $Failed

POSTED BY: Jose Calderon
Answer
1 month ago

Think out of the box about that quoting problem: you likely shouldn't be adding slashes by hand (it might waste your time and leave you with code that later you have to re-convert to being "normal c" that gcc will accept)

In[4]:= hello = CreateExecutable[Import["hello.c", "Text"] , "hello"]

Out[4]= "/users/`whoami`/Library/Mathematica/SystemFiles/\
LibraryResources/MacOSX-x86-64/hello"

In[5]:= Import["!" <> QuoteFile[hello], "Text"]

Out[5]= "hello world"

Import["x.c", "Text"]

"#include <stdio.h>\nint main(void)\n{\n  printf(\"hello world\");\n\
}"
POSTED BY: John Hendrickson
Answer
1 month ago

Had the problem resolve. I was using WIndows 8.1 . The C++ SDK will only operate with the libraries under 10.0

POSTED BY: Jose Calderon
