This post will demonstrate how to use the GPIO pins with the Wolfram Language on a Raspberry Pi. This is an update of this post.

The following hardware is necessary:

• Raspberry Pi
• Pi Cobbler Breakout board
• 8x LEDs
• 8x 220 Ohm resistors (as long as the resistors are between 200 and 400 ohms, you should be fine)

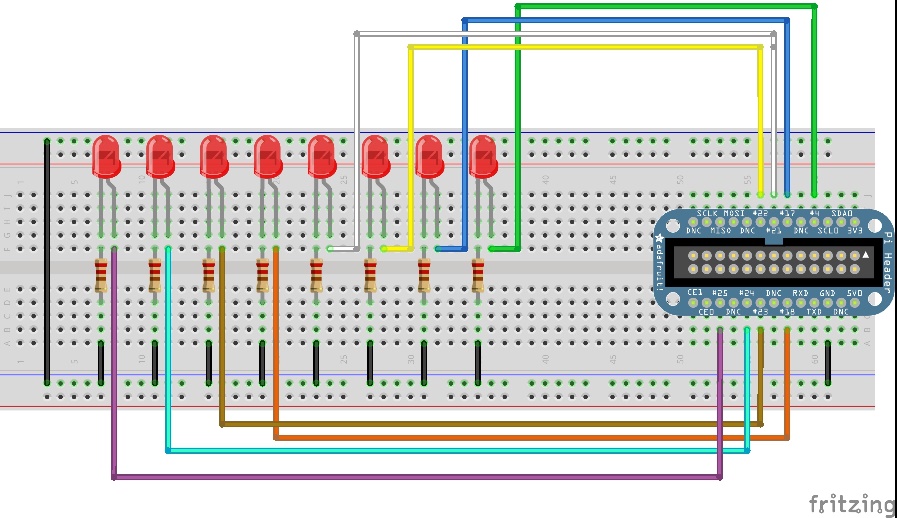

First, setup up the breadboard as shown below in the Fritzing Diagram. Pins 4, 17, 18, 22, 23, 24, 25, & 27 should all be hooked up to an LED, with each LED getting its own resistor. Alternatively, as long as no more than one of the LEDs is on at a time, you can do this with one resistor. The Cobbler breakout board plugs into the Raspberry Pi, and make sure that you plug it in correctly, as nothing will work if it is plugged in backwards.

The GPIO interface requires root privilege for access so the Wolfram Language or Mathematica needs to be started as root for this experiment.

In a terminal start the Wolfram Language using the following command (as root):

> sudo wolfram

Wolfram Language (Raspberry Pi Pilot Release)
Copyright 1988-2013 Wolfram Research
Information & help: wolfram.com/raspi

In[1]:=

First we define the pins that correspond to connected LEDs:

pins = {4,17,27,22,18,23,24,25}

Next we can turn on individual LEDs by writing the value '1' to it, which corresponds to turning it on:

DeviceWrite[ "GPIO", First[pins] -> 1 ]

And of course turn it back off, by writing the value '0':

DeviceWrite[ "GPIO", First[pins] -> 0 ]

Or turn the LEDs on and off one at a time:

Do[
 DeviceWrite[ "GPIO", pins[[i]]->1 ];
 Pause[.2];
 DeviceWrite[ "GPIO", pins[[i]]->0 ];
 ,{i,8}]
