I am not able to determine why the voltage of this circuit climbs to 10^6 volts then just drop to 0 . This is a modification of the voltage regulator from industry examples.

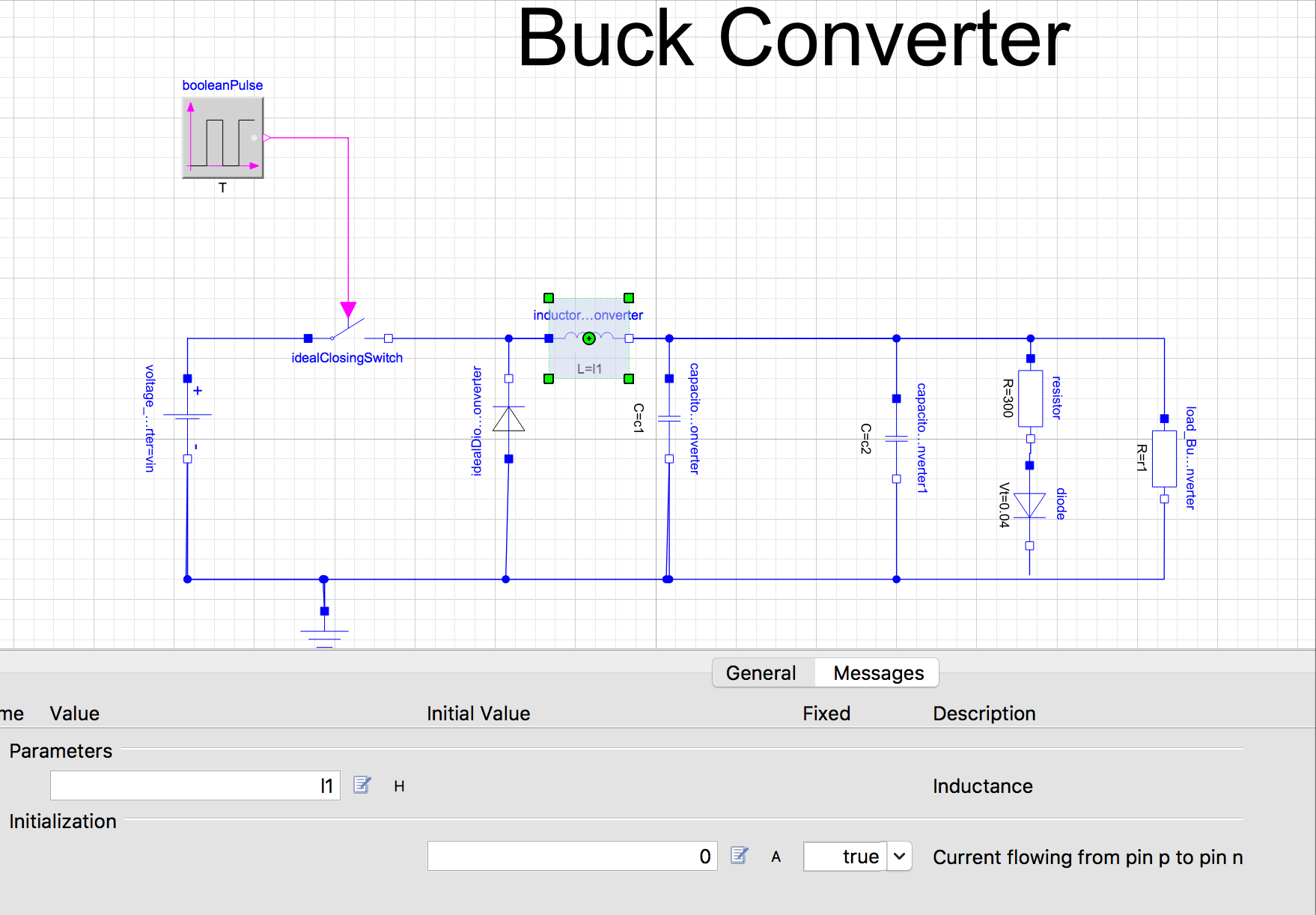

model SFDI_voltageRegulator "Buck converter and Zener regulator comparison."
extends Modelica.Icons.Example;
parameter Modelica.SIunits.Resistance r1 = 16 "Resistance for the load";
parameter Modelica.SIunits.Capacitance c1(displayUnit = "uF") = 4e-006 "Capacitance of the buck converter capacitor";
parameter Modelica.SIunits.Capacitance c2(displayUnit = "uF") = 4e-006 "Capacitance of the buck converter capacitor 2";
parameter Modelica.SIunits.Inductance l1(displayUnit = "mH") = 0.02 "Inductance of the buck converter inductor";
parameter Modelica.SIunits.Time T(displayUnit = "ms") = 5e-005 "Time for one period";
parameter Real D = 12 / 24 "Duty-ratio";
parameter Modelica.SIunits.Voltage vin = 24 "Input voltage into the buck converter";
Modelica.Electrical.Analog.Sources.ConstantVoltage voltage_BuckConverter(V = vin) annotation(Placement(visible = true, transformation(origin = {-116.682, 5}, extent = {{-10, -10}, {10, 10}}, rotation = -90)));
Modelica.Electrical.Analog.Basic.Resistor load_BuckConverter(R = r1) annotation(Placement(visible = true, transformation(origin = {126.766, -5}, extent = {{-10, -10}, {10, 10}}, rotation = -90)));
Modelica.Electrical.Analog.Basic.Capacitor capacitor_BuckConverter(C = c1) annotation(Placement(visible = true, transformation(origin = {3.376, 5}, extent = {{-10, -10}, {10, 10}}, rotation = -90)));
Modelica.Electrical.Analog.Basic.Inductor inductor_BuckConverter(L = l1) annotation(Placement(visible = true, transformation(origin = {-16.624, 25}, extent = {{-10, -10}, {10, 10}}, rotation = 0)));
Modelica.Electrical.Analog.Basic.Ground ground_BuckConverter annotation(Placement(visible = true, transformation(origin = {-82.533, -52.959}, extent = {{-10, -10}, {10, 10}}, rotation = -720)));
Modelica.Blocks.Sources.BooleanPulse booleanPulse(period = T, width = D * 100) annotation(Placement(visible = true, transformation(origin = {-107.893, 75}, extent = {{-10, -10}, {10, 10}}, rotation = 0)));
Modelica.Electrical.Analog.Ideal.IdealDiode idealDiode_BuckConverter(Vknee = 0.04, T = 308.15) annotation(Placement(visible = true, transformation(origin = {-36.624, 5}, extent = {{-10, -10}, {10, 10}}, rotation = -270)));
Modelica.Electrical.Analog.Ideal.IdealClosingSwitch idealClosingSwitch annotation(Placement(visible = true, transformation(origin = {-76.624, 25}, extent = {{-10, -10}, {10, 10}}, rotation = 0)));
Modelica.Electrical.Analog.Basic.Capacitor capacitor_BuckConverter1(C = c2) "Second capacitor" annotation(Placement(visible = true, transformation(origin = {60, 0}, extent = {{-10, -10}, {10, 10}}, rotation = -90)));
Modelica.Electrical.Analog.Semiconductors.Diode diode annotation(Placement(visible = true, transformation(origin = {93.172, -16.641}, extent = {{-10, -10}, {10, 10}}, rotation = -90)));
Modelica.Electrical.Analog.Basic.Resistor resistor(R = 300) "Lead light resistor" annotation(Placement(visible = true, transformation(origin = {93.422, 10}, extent = {{-10, -10}, {10, 10}}, rotation = -90)));
equation
connect(voltage_BuckConverter.n, ground_BuckConverter.p) annotation(Line(visible = true, origin = {-100, -34.49}, points = {{-16.682, 29.49}, {-17.074, -0.51}, {17.074, -0.51}, {17.467, -8.469}}, color = {0, 0, 255}));
connect(capacitor_BuckConverter.n, voltage_BuckConverter.n) annotation(Line(visible = true, origin = {-51.624, -30}, points = {{55, 25}, {55, -5}, {-65.058, -5}, {-65.058, 25}}, color = {0, 0, 255}));
connect(capacitor_BuckConverter.n, idealDiode_BuckConverter.p) annotation(Line(visible = true, origin = {-14.88, -32.25}, points = {{18.256, 27.25}, {17.5, -2.75}, {-22.5, -2.75}, {-21.744, 27.25}}, color = {0, 0, 255}));
connect(load_BuckConverter.n, voltage_BuckConverter.n) annotation(Line(visible = true, origin = {-41.695, -30}, points = {{168.461, 15}, {168.39, -5}, {-75, -5}, {-74.987, 25}}, color = {0, 0, 255}));
connect(voltage_BuckConverter.p, idealClosingSwitch.p) annotation(Line(visible = true, origin = {-106.663, 21.667}, points = {{-10.019, -6.667}, {-10.019, 3.333}, {20.039, 3.333}}, color = {0, 0, 255}));
connect(inductor_BuckConverter.n, load_BuckConverter.p) annotation(Line(visible = true, origin = {82.303, 18.333}, points = {{-88.927, 6.667}, {44.463, 6.667}, {44.463, -13.333}}, color = {0, 0, 255}));
connect(inductor_BuckConverter.p, idealDiode_BuckConverter.n) annotation(Line(visible = true, origin = {-33.291, 21.667}, points = {{6.667, 3.333}, {-3.333, 3.333}, {-3.333, -6.667}}, color = {0, 0, 255}));
connect(booleanPulse.y, idealClosingSwitch.control) annotation(Line(visible = true, origin = {-73.624, 49.333}, points = {{-23.269, 25.667}, {-3, 25.667}, {-3, -17.333}}, color = {255, 0, 255}));
connect(inductor_BuckConverter.p, idealClosingSwitch.n) annotation(Line(visible = true, origin = {-46.624, 25}, points = {{20, 0}, {-20, 0}}, color = {0, 0, 255}));
connect(inductor_BuckConverter.n, capacitor_BuckConverter.p) annotation(Line(visible = true, origin = {3.376, 21.667}, points = {{-10, 3.333}, {0, 3.333}, {0, -6.667}}, color = {0, 0, 255}));
connect(capacitor_BuckConverter1.p, inductor_BuckConverter.n) annotation(Line(visible = true, origin = {37.792, 20}, points = {{22.208, -10}, {22.208, 5}, {-44.416, 5}}, color = {0, 0, 255}));
connect(capacitor_BuckConverter1.n, ground_BuckConverter.p) annotation(Line(visible = true, origin = {-11.267, -35.74}, points = {{71.267, 25.74}, {71.267, 0.74}, {-71.267, 0.74}, {-71.266, -7.219}}, color = {0, 0, 255}));
connect(resistor.p, inductor_BuckConverter.n) annotation(Line(visible = true, origin = {60.073, 23.333}, points = {{33.349, -3.333}, {33.349, 1.667}, {-66.697, 1.667}}, color = {0, 0, 255}));
connect(resistor.n, diode.p) annotation(Line(visible = true, origin = {93.297, -3.481}, points = {{0.125, 3.481}, {0.125, -0.16}, {-0.125, -0.16}, {-0.125, -3.16}}, color = {0, 0, 255}));
connect(diode.n, ground_BuckConverter.p) annotation(Line(visible = true, origin = {5.319, -34.9}, points = {{87.852, 8.259}, {87.852, -0.1}, {-87.852, -0.1}, {-87.852, -8.059}}, color = {0, 0, 255}));
annotation(experiment(StopTime = 5, __Wolfram_SynchronizeWithRealTime = false), __Wolfram(openClass = BuckConverter, useDocumentationTemplate = false), __Wolfram(PlotSet(plots = {Plot(name = "LoadVoltageBuckConvertervsZenerRegulator ", preferred = true, subPlots = {SubPlot(curves = {Curve(x = time, y = load_BuckConverter.v), Curve(x = time, y = load_Zener.v)})}), Plot(name = "BuckConverterBehavior", subPlots = {SubPlot(curves = {Curve(x = time, y = load_BuckConverter.v), Curve(x = time, y = load_Zener.v)}, range = Range(xmin = 0.007985104552499202, xmax = 0.008516085813714526, ymin = 11.9518475877193, ymax = 12.13411793372319)), SubPlot(curves = {Curve(x = time, y = booleanPulse.y)}, range = Range(xmin = 0.007985104552499202, xmax = 0.008516085813714526, ymin = auto, ymax = auto))})})), uses(Modelica(version = "3.2.1")), Documentation(info = "<html><!--WSMINSERTIONTAGSTART BuckConverter.ExampleModel -->
