Solve this PDEs system?

Jonathan Crabbé

Posted 7 years ago

Hello everybody, I would like to solve numerically this system of PDEs with the following initial conditions: Here is my attempt to do it in Mathematica: clear[\[Phi], \[Chi]]; sol = NDSolve[{ -2D[\[Phi][x, t], t, t] + 2 D[\[Phi][x, t], x, x] + (Exp (\[Phi][x, t])/ 2)((D[\[Chi][x, t], t])^2 - (D[\[Chi][x, t], x])^2) - Exp[\[Phi][x, t]](Exp[\[Phi][x, t]] - 1) == 0, -D[\[Chi][x, t], t, t] + D[\[Chi][x, t], x, x] - D[\[Phi][x, t], t]D[\[Chi][x, t], t] + D[\[Phi][x, t], x]*D[\[Chi][x, t], x] == 0 , \[Phi][x, 0] == Exp[-x^2], D[\[Phi][0, t], t] == 0, \[Chi][x, 0] == Exp[-x^2], D[\[Chi][0, t], t] == 0 }, {\[Phi], \[Chi]}, {x, 0, 10}, {t, 0, 10}]; Plot3D[\[Phi][x, t] /. sol[[1]], {x, 0, 10}, {t, 0, 10}] Unfortunately it gives me an unexpected error. I have reread the code many times but I do not find the error. Can someone help me please?

Hello everybody,

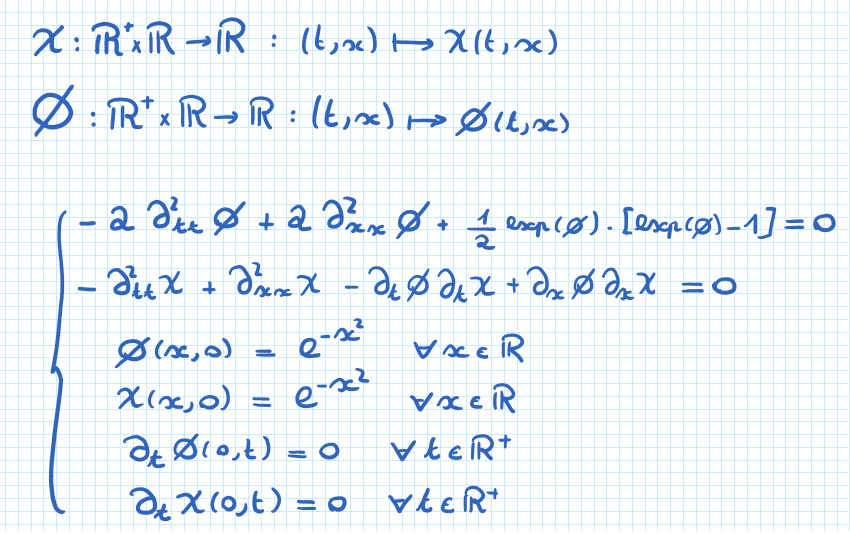

I would like to solve numerically this system of PDEs with the following initial conditions: PDEs System

Here is my attempt to do it in Mathematica:

clear[\[Phi], \[Chi]];
sol = NDSolve[{
    -2*D[\[Phi][x, t], t, t] +
      2 D[\[Phi][x, t], x,
        x] + (Exp (\[Phi][x, t])/
          2)*((D[\[Chi][x, t], t])^2 - (D[\[Chi][x, t], x])^2) -
      Exp[\[Phi][x, t]]*(Exp[\[Phi][x, t]] - 1) == 0,
    -D[\[Chi][x, t], t, t] + D[\[Chi][x, t], x, x] -
      D[\[Phi][x, t], t]*D[\[Chi][x, t], t] +
      D[\[Phi][x, t], x]*D[\[Chi][x, t], x] == 0 ,
      \[Phi][x, 0]  == Exp[-x^2],
     D[\[Phi][0, t], t] == 0,
    \[Chi][x, 0]  == Exp[-x^2],
    D[\[Chi][0, t], t] == 0
    },
   {\[Phi], \[Chi]}, {x, 0, 10}, {t, 0, 10}];
 Plot3D[\[Phi][x, t] /. sol[[1]], {x, 0, 10}, {t, 0, 10}]

Unfortunately it gives me an unexpected error.

I have reread the code many times but I do not find the error.

Can someone help me please?

POSTED BY: Jonathan Crabbé

1 Reply

Sort By:

Dent de Lion

Dent de Lion, Privatier

Posted 6 years ago

As it stands (fifth line) `(Exp (\[Phi][x,t])/` it is an syntax error. But even that fixed it runs into clear[\[Phi], \[Chi]]; sol = NDSolve[{-2D[\[Phi][x, t], t, t] + 2 D[\[Phi][x, t], x, x] + (Exp[\[Phi][x, t]]/ 2)((D[\[Chi][x, t], t])^2 - (D[\[Chi][x, t], x])^2) - Exp[\[Phi][x, t]](Exp[\[Phi][x, t]] - 1) == 0, -D[\[Chi][x, t], t, t] + D[\[Chi][x, t], x, x] - D[\[Phi][x, t], t]D[\[Chi][x, t], t] + D[\[Phi][x, t], x]D[\[Chi][x, t], x] == 0, \[Phi][x, 0] == Exp[-x^2], D[\[Phi][0, t], t] == 0, \[Chi][x, 0] == Exp[-x^2], D[\[Chi][0, t], t] == 0}, {\[Phi], \[Chi]}, {x, 0, 10}, {t, 0, 10}]; CoefficientArrays::poly: -E^\[Phi] (-1+E^\[Phi])-2 \[Phi]$4455+2 \[Phi]$4458+1/2 E^\[Phi] (\[Chi]$4456^2-\[Chi]$4457^2) is not a polynomial. >> NDSolve::femper: PDE parsing error of {-E^\[Phi] (-1+E^\[Phi])-2 \[Phi]$4455+2 \[Phi]$4458+1/2 E^\[Phi] (\[Chi]$4456^2-\[Chi]$4457^2),-\[Phi]$4459 \[Chi]$4456+\[Phi]$4461 \[Chi]$4457-\[Chi]$4460+\[Chi]$4462}. Inconsistent equation dimensions. >> if your modelling is meaningful and correct, then the first thing (`CoefficientArrays::poly`) is interesting (see also ref/message/General/poly in Mathematica Help) and can possibly treated by options, i.e. use another solver, else think about inconsistent* equation dimensions.

As it stands (fifth line) (Exp (\[Phi][x,t])/ it is an syntax error. But even that fixed it runs into

clear[\[Phi], \[Chi]];
sol = NDSolve[{-2*D[\[Phi][x, t], t, t] +
      2 D[\[Phi][x, t], x,
        x] + (Exp[\[Phi][x, t]]/
         2)*((D[\[Chi][x, t], t])^2 - (D[\[Chi][x, t], x])^2) -
      Exp[\[Phi][x, t]]*(Exp[\[Phi][x, t]] - 1) ==
     0, -D[\[Chi][x, t], t, t] + D[\[Chi][x, t], x, x] -
      D[\[Phi][x, t], t]*D[\[Chi][x, t], t] +
      D[\[Phi][x, t], x]*D[\[Chi][x, t], x] == 0, \[Phi][x, 0] ==
     Exp[-x^2], D[\[Phi][0, t], t] == 0, \[Chi][x, 0] == Exp[-x^2],
    D[\[Chi][0, t], t] == 0}, {\[Phi], \[Chi]}, {x, 0, 10}, {t, 0,
    10}];


CoefficientArrays::poly: -E^\[Phi] (-1+E^\[Phi])-2 \[Phi]$4455+2 \[Phi]$4458+1/2 E^\[Phi] (\[Chi]$4456^2-\[Chi]$4457^2) is not a polynomial. >>

NDSolve::femper: PDE parsing error of {-E^\[Phi] (-1+E^\[Phi])-2 \[Phi]$4455+2 \[Phi]$4458+1/2 E^\[Phi] (\[Chi]$4456^2-\[Chi]$4457^2),-\[Phi]$4459 \[Chi]$4456+\[Phi]$4461 \[Chi]$4457-\[Chi]$4460+\[Chi]$4462}. Inconsistent equation dimensions. >>

if your modelling is meaningful and correct, then the first thing (CoefficientArrays::poly) is interesting (see also ref/message/General/poly in Mathematica Help) and can possibly treated by options, i.e. use another solver, else think about inconsistent equation dimensions.

POSTED BY: Dent de Lion
