Compute transfer function of a linear system analytically?

Posted 8 months ago
696 Views
|
1 Reply
|
0 Total Likes
|

Hello everyone,

I am new to Mathematica and I would like to compute the transfer function matrix of a linear system.

The system has the following disturbance inputs:

enter image description here

The system has the following states:

enter image description here

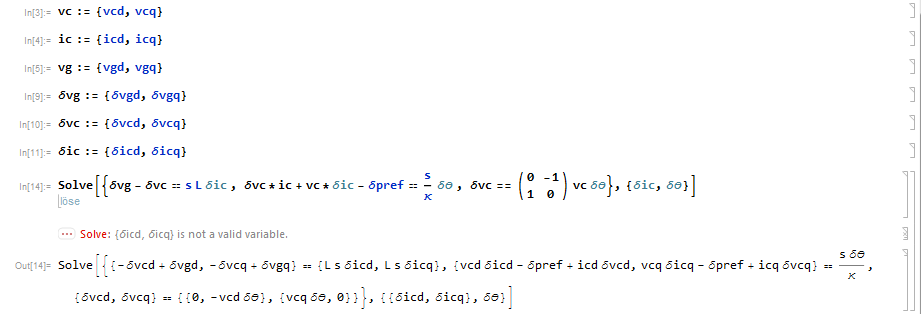

The dynamics of the system are given by two vectorial and one scalar equation. I tried to solve for the state variables as a function of the disturbances using the following code but I get an error message and I'm not sure why: (Note that vc, vg and ic which are defined at the beginning are constant vectors).

enter image description here

Posted 8 months ago

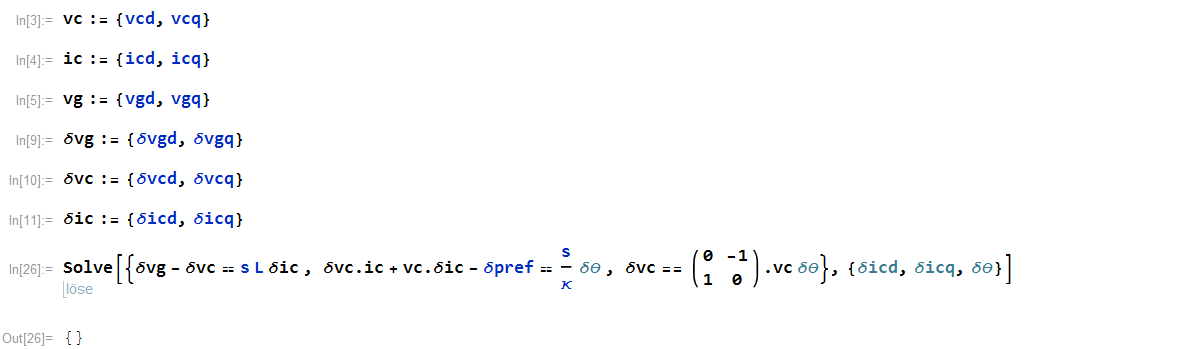

Okay, so far I've figured out I used the wrong syntax for the dot-product and the vector-matrix multiplication yet I still get an empty set as answer?
