How is WM 11.3 set to C++ compiler from Visual Studio 2017

I have not been able to get to work any of the Documentation CCompiler examples. My Windows 10 machine WM recognizes the compiler, but nothing is compile. FOr example. I am getting a following compilation error at end CreateLibrary::cmperr: Compile error: C:\Program Files\Wolfram Research\Mathematica\11.3\SystemFiles\IncludeFiles\C\WolframLibrary.h(24): fatal error C1083: Cannot open include file: 'stddef.h': No such file or directory

In[1]:= Needs["CCompilerDriver`"]
CCompilers[]
demoFile =
  FileNameJoin[ {$CCompilerDirectory, "SystemFiles", "CSource",
    "createDLL_demo.c"}];

Out[2]= {{"Name" -> "Visual Studio",
  "Compiler" ->
   CCompilerDriver`VisualStudioCompiler`VisualStudioCompiler,
  "CompilerInstallation" ->
   "C:\\Program Files (x86)\\Microsoft Visual \
Studio\\2017\\Community", "CompilerName" -> Automatic}}

In[6]:= "Compiler" /. {{"Name" -> "Visual Studio",
   "Compiler" ->
    CCompilerDriver`VisualStudioCompiler`VisualStudioCompiler,
   "CompilerInstallation" ->
    "C:\\Program Files (x86)\\Microsoft Visual \
Studio\\2017\\Community", "CompilerName" -> Automatic}}

Out[6]= {CCompilerDriver`VisualStudioCompiler`VisualStudioCompiler}

In[7]:= CreateLibrary[demoCString, "testDLL"]
$CCompilerDefaultDirectory


Out[7]= CreateLibrary[demoCString, "testDLL"]

Out[8]= "C:\\Users\\user\\AppData\\Roaming\\Mathematica\\SystemFiles\\\
LibraryResources\\Windows-x86-64"

In[9]:= SystemOpen["C:\\Users\\user\\AppData\\Roaming\\Mathematica\\\
SystemFiles\\LibraryResources\\Windows-x86-64"]

In[10]:= Needs["SymbolicC`"];

In[11]:= fun1 = CFunction[{"int"}, "fun1", {}, CBlock[{CReturn[0]}]];
funStr1 = ToCCodeString[fun1]

Out[12]= "int fun1()
{
return 0;
}
"

In[13]:= demoFile =
  FileNameJoin[ {$CCompilerDirectory, "SystemFiles", "CSource",
    "createDLL_demo.c"}];

In[14]:= CreateLibrary[{demoFile}, "testLib",
 "ShellOutputFunction" -> Print]

During evaluation of In[14]:=
C:\Users\user\AppData\Roaming\Mathematica\SystemFiles\LibraryResources\Windows-x86-64\Working-asus-1468-6472-1>call "C:\Program Files (x86)\Microsoft Visual Studio\2017\Community\VC\Auxiliary\Build\vcvarsall.bat" amd64
**********************************************************************
** Visual Studio 2017 Developer Command Prompt v15.6.7
** Copyright (c) 2017 Microsoft Corporation
**********************************************************************
[vcvarsall.bat] Environment initialized for: 'x64'
Microsoft (R) C/C++ Optimizing Compiler Version 19.13.26132 for x64
Copyright (C) Microsoft Corporation.  All rights reserved.

createDLL_demo.c
C:\Program Files\Wolfram Research\Mathematica\11.3\SystemFiles\IncludeFiles\C\WolframLibrary.h(24): fatal error C1083: Cannot open include file: 'stddef.h': No such file or directory

During evaluation of In[14]:= CreateLibrary::cmperr: Compile error: C:\Program Files\Wolfram Research\Mathematica\11.3\SystemFiles\IncludeFiles\C\WolframLibrary.h(24): fatal error C1083: Cannot open include file: 'stddef.h': No such file or directory

Out[14]= $Failed
POSTED BY: Jose Calderon
3 Replies

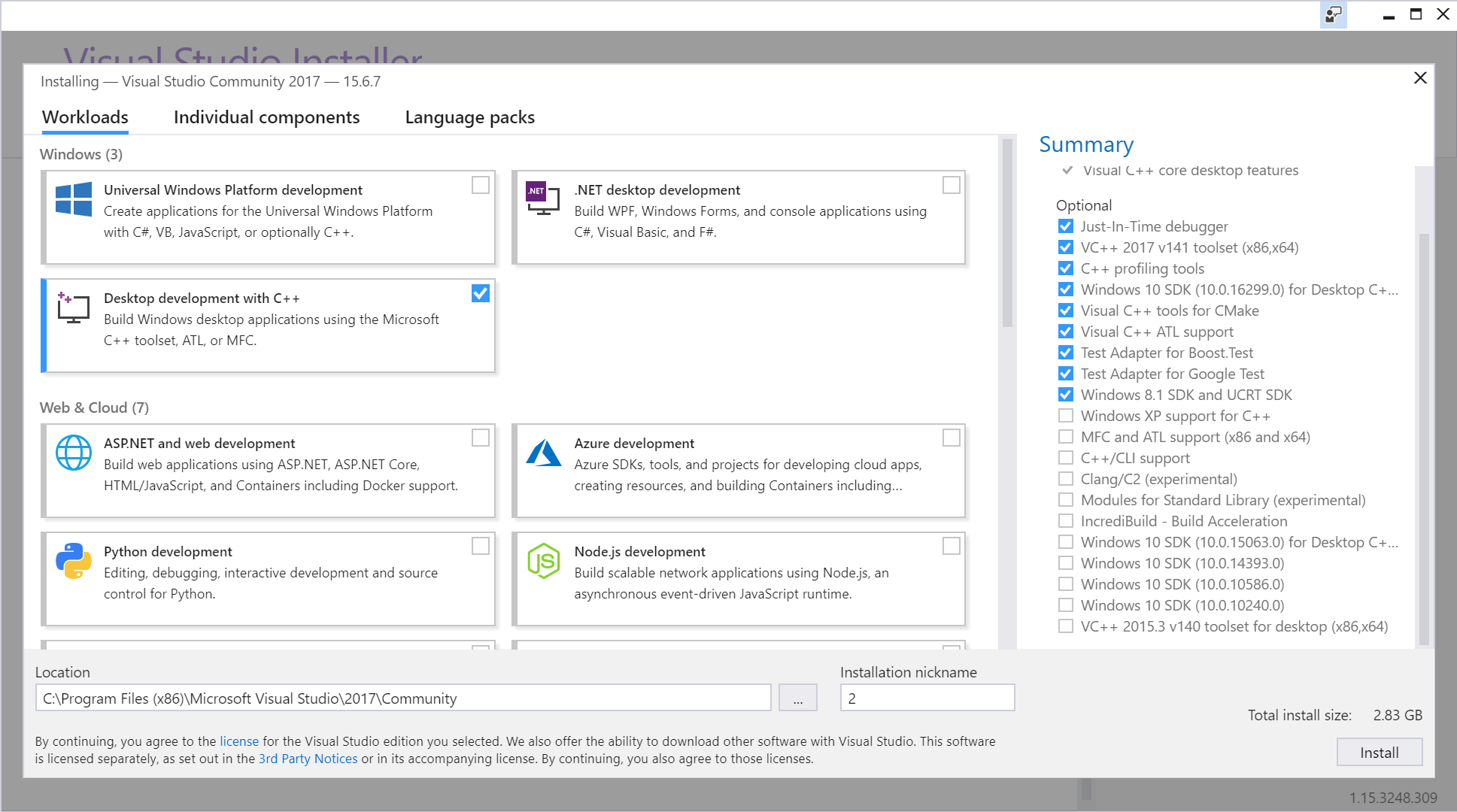

It is available in both, actually. The component is called "Windows 8.1 SDK and UCRT SDK"

enter image description here

POSTED BY: Ilian Gachevski

Make sure the "Universal CRT SDK" component is selected when installing Visual Studio.

POSTED BY: Ilian Gachevski

Thanks for your reply. Is this option ound under the Visual Studio Community 2017 installation or under the VOsual Studio Built tools?

enter image description here

POSTED BY: Jose Calderon
