Get a ParametricPlot with interactive parameter, to trace the coordinates?

Ehud Behar
Posted 8 years ago

I have noticed that by using the Free-form input for parametric plots, clicking the plus icon in the upper right-hand corner displays additional results provided by Wolfram|Alpha. One of which is a slider for the parameter which I am using to create the plot.

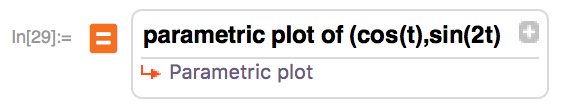

For example:

enter image description here
Clicking on the plus sign, I can see the plot, with a text balloon saying:

this subpod is selected. Press shift-enter to request this subpod form Wolfram|Alpha.

Doing what it says I get on a new line in my notebook the parametric plot with an option to trace the curve, somewhat like Manipulate does.

My question is: How can I create such a plot with Mathematica input, not using the free-form?

POSTED BY: Ehud Behar
3 Replies
Sort By:
DynamicModule[{tr = 1},
 Column[{
   Show[
    ParametricPlot[
     {Cos[t], Sin[2 t ]}, {t, 0, 2 Pi},
     GridLines ->
      Dynamic[List /@ CurrentValue[{"MousePosition", "Graphics"}]]
     , PlotStyle -> Directive[Thin, Gray]
     ],
    Graphics@{Dynamic[First@ParametricPlot[
          {Cos[t], Sin[2 t ]}, {t, 0.0001, 2 Pi tr},
          PlotStyle -> Thick
          ] /. Line -> Arrow]
      }
    , ImageSize -> Large],
   Slider@Dynamic@tr
   }]
 ]
POSTED BY: Kuba Podkalicki
Ehud Behar
Ehud Behar
Posted 8 years ago

Thanks. That's what I was looking for.

But, is there any way to extract out this command you wrote of the Wolfram|Alpha subpod?
POSTED BY: Ehud Behar

ParametricPlot[{Cos[t], Sin[2 t]}, {t, 0, 2 Pi}]
POSTED BY: Sunil Nandihalli
