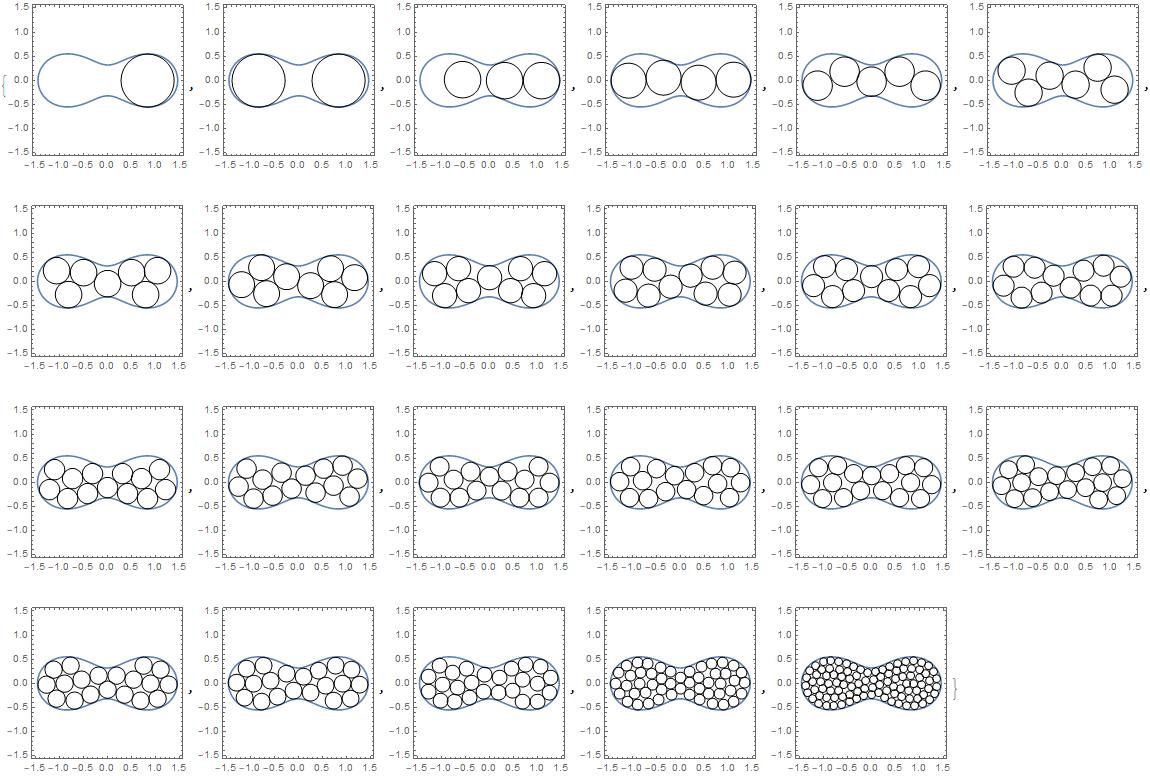

The code shown is for packing identical circles inside a Cassini oval. Results are shown for that curve and also for a cardioid. For small numbers of circles, best result were obtained using NMaximize. For larger numbers of circles, best results were obtained using ParametricIPOPTMinimize. The code to implement that has been previously posted.
Packing Code
formula for Cassini Oval
In[21]:= oval[{x_, y_}] = ((x - 1)^2 + y^2) ((x + 1)^2 + y^2) - (21/20)^4;
plot of Cassini Oval
In[22]:= ovalplot =
ContourPlot[Evaluate[oval[{x, y}] == 0], {x, -1.5, 1.5}, {y, -1.5, 1.5},
ImageSize -> Small];
signed distance from a point {xc,yc} to the oval
In[23]:= dist[{xc_, yc_}] := -N @Sign[oval[{xc, yc}]]*
Sqrt[MinValue[{(x - xc)^2 + (y - yc)^2, oval[{x, y}] == 0}, {x, y}]]
evaluate the distance at an array of points
In[24]:= AbsoluteTiming[
Quiet[disttbl =
Flatten[Table[{xc, yc, dist[{xc, yc}]}, {xc, -2, 2, 1/10}, {yc, -1, 1, 1/
10}], 1]];]
Out[24]= {14.3459, Null}
create an Interpolation function for the distance
In[25]:= disti = Interpolation[disttbl];
constraints that two circles be disjoint
In[26]:= disjointcircs[i_Integer,
j_Integer] := (xc[i] - xc[j])^2 + (yc[i] - yc[j])^2 >= 4 radius^2
maximize the radii of the circles, constrained to be in the oval, using NMaximize
In[27]:= pack[n_Integer] :=
Quiet[NMaximize[{radius,
Sequence @@ Table[disti[xc[i], yc[i]] >= radius, {i, n}] ,
Sequence @@
Flatten[Table[disjointcircs[i, j], {i, n - 1}, {j, i + 1, n}]]},
Join[{radius}, Table[xc[i], {i, n}], Table[yc[i], {i, n}]]]]
plot the result
In[28]:= plt[sln_, n_Integer] :=
Show[ovalplot,
Graphics @ Table[Circle[{xc[i], yc[i]}, radius] /. sln[[2]], {i, n}]]
perform the optimization using Ipopt
In[29]:= iMinPack[n_Integer, nrands_Integer, seed_Integer] :=
iMin[-radius, {Sequence @@ Table[disti[xc[i], yc[i]] >= radius, {i, n}] ,
Sequence @@
Flatten[Table[disjointcircs[i, j], {i, n - 1}, {j, i + 1, n}]]},
Join[{{radius, 0, 1}}, Table[{xc[i], -2, 2}, {i, n}],
Table[{yc[i], -1, 1}, {i, n}]], nrands, seed,
"IPOPTOptions" -> {"tol" -> 10^-6}]
