Plot GeoCircles from lat, lon, radius data?

Posted 5 years ago

Thus far I’ve been able to plot out points from a database table selecting the latitude and longitude. I want to be able to add a third parameter, accuracy in meters, and plot the map with GeoCircles with the accuracy in meters as the radius. I can’t seem to figure out how to get that third variable working.

So I get to GeoGraphics[GeoCircle @@@ data], which works with latitude and longitude alone ({latitude,longitude}), but I can’t figure out a way to add the accuracy piece to specify the circle radius in meters ({latitude,longitude,radius} doesn’t work).

Help?

POSTED BY: Steven Buehler
14 Replies
Posted 5 years ago

That was the issue. Thanks everyone for all the help; this product’s got a bit of a learning curve. :-)

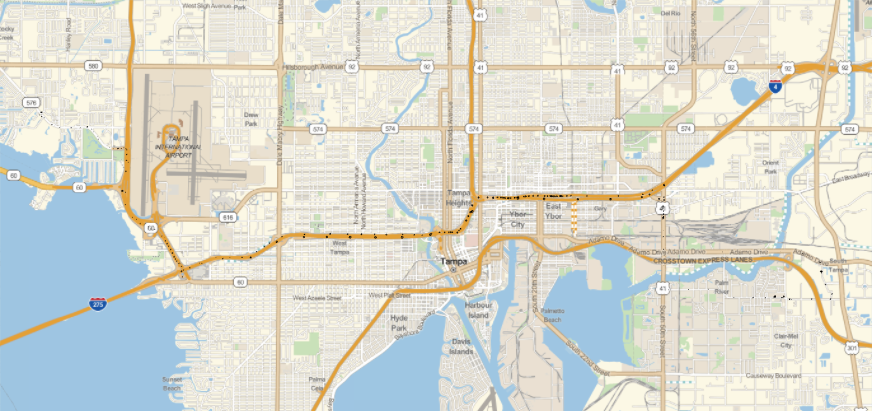

Result, large dot indicates greater GPS error

POSTED BY: Steven Buehler
Posted 5 years ago

My command was:

GeoGraphics[
 Map[GeoCircle[Take[#, 2], Quantity[#[[-1]], "km"]] &, dbdata]]

Apparently you have set the "]" brackets differently which you can spot if yoe look at the very end of your command (yours -> dbdata], mine -> dbdata]] )

POSTED BY: Michael Helmle
Posted 5 years ago

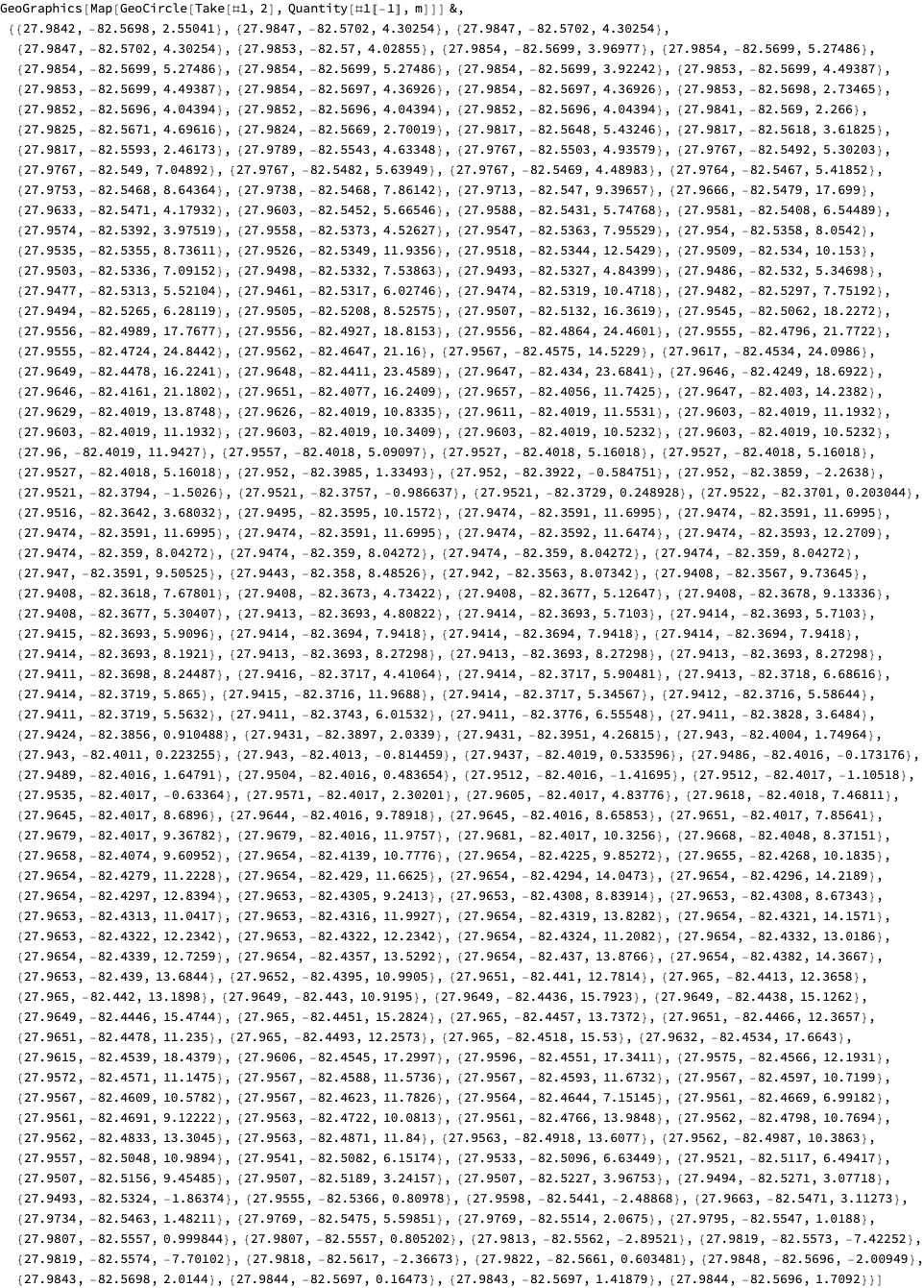

That didn’t quite work, neither:

Needs["DatabaseLink`"]; conn = OpenSQLConnection["Dash"]; data =
 SQLExecute[conn,
  "SELECT latitude, longitude, altitude FROM points WHERE \
DATETIME(time/1000,'unixepoch','localtime') >= DATETIME('now','start \
of day','-1 days') AND DATETIME(time/1000,'unixepoch','localtime') < \
DATETIME('now','start of day') ORDER BY time"]; img =
 GeoGraphics[Map[GeoCircle[Take[#, 2], Quantity[#[[-1]], "m"]]] &,
  data]; myFileName =
 "/Volumes/4TB External/Databases/Maps/" <>
  Riffle[ToString /@ PreviousDate["Day"][[1]][[;; 3]], "-"] <>
  "_circles.png";
Export[myFileName, img]

Result

POSTED BY: Steven Buehler
Posted 5 years ago

If you want to have all the GeoCircles in one image you just pull the GeoGraphics command out of the expression following Map:

GeoGraphics[
 Map[GeoCircle[Take[#, 2], Quantity[#[[-1]], "km"]] &, dbdata]]
POSTED BY: Michael Helmle
Posted 5 years ago

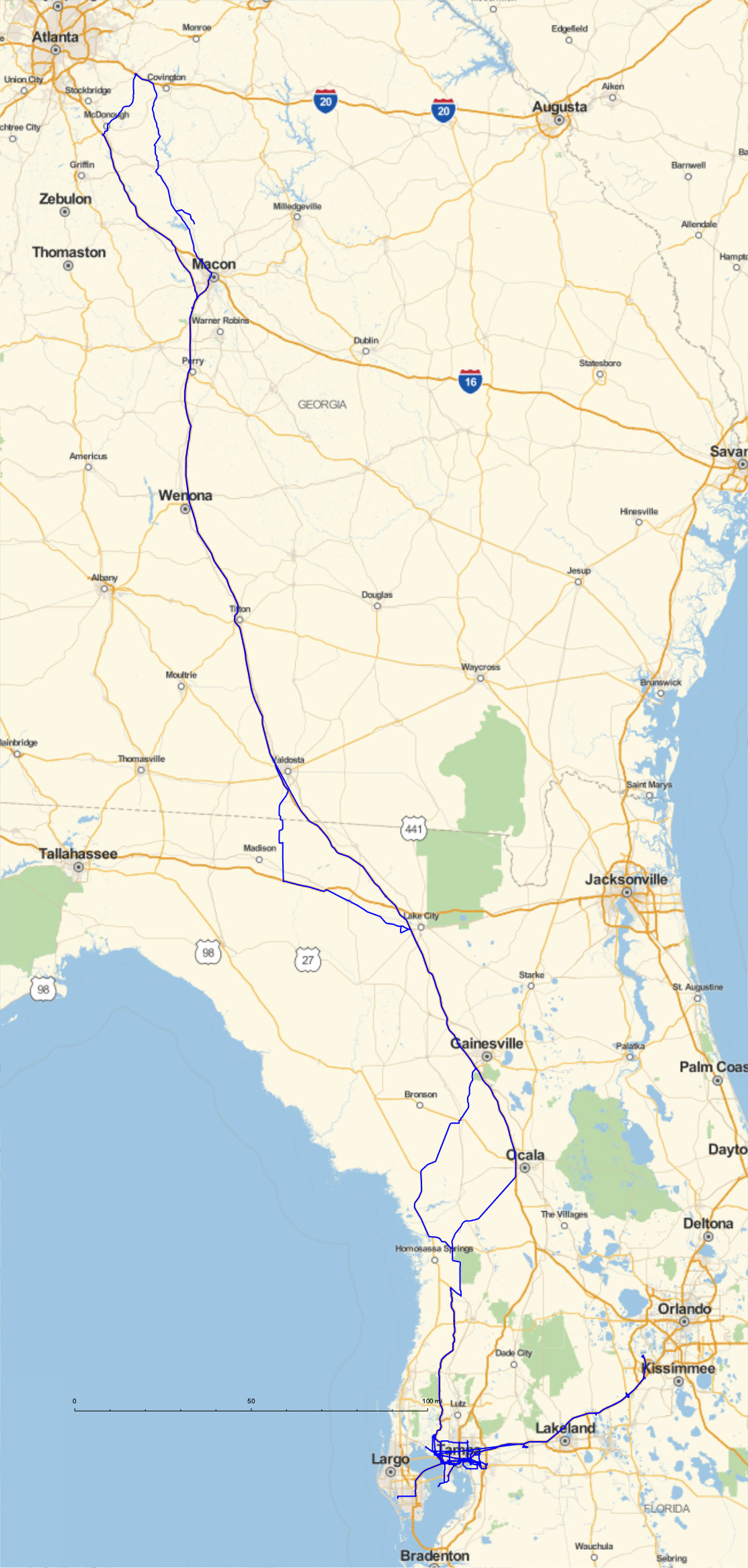

This is an example of what I started with; I wanted to create a new script that instead of the line would show the points with the accompanying margin of error. Most resulting maps would be zoomed enough to see large differences in the accuracy (the long excursion up to Atlanta and back was evacuating from Hurricane Irma in 2017).

Needs["DatabaseLink`"]; conn = OpenSQLConnection["Dash"]; data =
 SQLExecute[conn,
  "SELECT latitude, longitude FROM points ORDER BY time"]; img =
 GeoGraphics[{Blue, Thick, Line@GeoPosition@data},
  GeoScaleBar -> "Imperial", ImageSize -> Full,
  GeoBackground -> GeoStyling["StreetMap"]]; myFileName =
 "/Volumes/4TB External/Databases/Maps/" <>
  Riffle[ToString /@ PreviousDate["Day"][[1]][[;; 3]], "-"] <>
  ".png";
Export["/Volumes/4TB External/Databases/Maps/alltrips.png", img]

Resulting Map

POSTED BY: Steven Buehler
Posted 5 years ago

Didn’t quite work the way I wanted; it produced 265 page png with just the circles rather than a larger image with all the circles in one page.

Needs["DatabaseLink`"]; conn = OpenSQLConnection["Dash"]; data =
 SQLExecute[conn,  "SELECT latitude, longitude, altitude FROM points WHERE DATETIME(time/1000,'unixepoch','localtime') >= DATETIME('now','start of day','-1 days') AND DATETIME(time/1000,'unixepoch','localtime') < DATETIME('now','start of day') ORDER BY time"]; img = Map[GeoGraphics[GeoCircle[Take[#, 2], Quantity[#[[-1]], "m"]]] &,
  data]; myFileName = "/Volumes/4TB External/Databases/Maps/" <> Riffle[ToString /@ PreviousDate["Day"][[1]][[;; 3]], "-"] <> ".png";
Export[myFileName, img]
POSTED BY: Steven Buehler
Posted 5 years ago

OK, I did here with the data you supplied:

dbdata = {{27.9842, -82.5698, 2.55041}, {27.9847, -82.5702,
   4.30254}, {27.9847, -82.5702, 4.30254}, {27.9847, -82.5702,
   4.30254}}
Map[GeoGraphics[
   GeoCircle[Take[#, 2], Quantity[#[[-1]], "km"]]] &, dbdata]

Note that according to your spec "km" should be replaced with "m", but if you do so the resulting images will not show much interesting stuff due to the limited resolution of th emap

POSTED BY: Michael Helmle
Posted 5 years ago

I suppose these are {{lat,lon,R},..} data each. So you extract the data from the sqldata base, call this resulting table "dbdata" or whatever and you replace

(ds[Values] // Normal)

(which is so to say the query from my dataset) with dbdata

Map[GeoGraphics[
   GeoCircle[Take[#, 2], Quantity[#[[-1]], "km"]]] &, dbdata]
POSTED BY: Michael Helmle
Posted 5 years ago

The output from the query looks like this (showing just the first part because it’s 57,000 points in the database and growing); basically triplets/vectors of {latitude, longitude, accuracy in meters}:

{{27.9842, -82.5698, 2.55041}, {27.9847, -82.5702, 4.30254}, {27.9847, -82.5702, 4.30254}, {27.9847, -82.5702, 4.30254}, … }

POSTED BY: Steven Buehler
Posted 5 years ago

Well, you did not supply any data earlier so I had to cook something up. If I understand correctly, the data you extract should look like what you get from

(ds[Values] // Normal)

in the example I attached. It is a vector of three numbers for each record. Can you bring it to this form?

POSTED BY: Michael Helmle
Posted 5 years ago

Sorry, but I’m still confused. I’m pulling the data from an SQLite database, and your response suggests that I’m supposed to enter it all manually. This language has got a steep learning curve.

Needs[“DatabaseLink`"]
conn = OpenSQLConnection["Dash"]; data =
 SQLExecute[conn,
  "SELECT latitude, longitude, accuracy FROM points WHERE DATETIME(time/1000,'unixepoch','localtime') >= DATETIME('now','start of day','-1 days') AND DATETIME(time/1000,'unixepoch','localtime') < DATETIME('now','start of day') ORDER BY time"];

This is going to give me tuplets (triplets, if you will) in response

POSTED BY: Steven Buehler
Posted 5 years ago

You could do it this way:

ds = Dataset[
  Map[<|Thread[{"lat", "lon", "r"} -> #]|> &, {{45., 11., 100.}, {48.,
      10., 25.}}]]
Map[GeoGraphics[
   GeoCircle[Take[#, 2], Quantity[#[[-1]], "km"]]] &, (ds[Values] //
   Normal)]
POSTED BY: Michael Helmle
Posted 5 years ago

Using Mathematica 12.0:

data = {{{45., 11.}, Quantity[100., "km"]}, {{48., 10.},
    Quantity[25., "Miles"]}};


Map[GeoGraphics[GeoCircle[#[[1]], #[[2]]]] &, data]
POSTED BY: Michael Helmle
Posted 5 years ago

I’m pulling this data from a database (latitude, longitude, accuracy), so how would it format for that? I’ve got GeoCircle @@@ data, but is there a way to select a specific field in data so I could structure it like GeoCircle [{{data.latitude, data.longitude}, Quantity[data.accuracy,”m”]}?

POSTED BY: Steven Buehler
