Achieve a proper display of WSM-Diagrams in Mathematica?

Posted 26 days ago
270 Views
|
3 Replies
|
4 Total Likes
|

Hi everyone,

I just noted that the icons for some components I have created are not properly visualized when having them displayed in Mathematica using SytemModel["model"]["Diagram"]. Here is a very short minimal example for the behavior:

model DemoIconDisplay
  partial model UnidirectionalFlow "Icon for unidirectional flow classes"
    annotation(Icon(coordinateSystem(extent = {{-100, -100}, {100, 100}}, preserveAspectRatio = true, initialScale = 0.1, grid = {10, 10}), graphics = {Rectangle(visible = true, lineColor = {0, 128, 0}, fillColor = {255, 255, 255}, fillPattern = FillPattern.Solid, lineThickness = 5, extent = {{-100, -100}, {100, 100}}), Rectangle(visible = true, lineColor = {0, 128, 0}, fillColor = {255, 255, 255}, fillPattern = FillPattern.Solid, lineThickness = 5, extent = {{-100, -100}, {100, 100}}), Line(visible = true, origin = {-2.596, -11.973}, points = {{-72.3, 0}, {72.3, 0}}, color = {0, 128, 0}, thickness = 5), Line(visible = true, origin = {-1.216, 11.777}, points = {{-73.637, 0}, {73.637, 0}}, color = {0, 128, 0}, thickness = 5), Polygon(visible = true, origin = {72.114, -0.25}, rotation = -450, lineColor = {0, 128, 0}, fillColor = {0, 128, 0}, fillPattern = FillPattern.Solid, points = {{-22.295, -7.943}, {22.191, -7.943}, {0.104, 15.886}}), Text(visible = true, origin = {-73.452, 37.479}, textColor = {0, 128, 0}, extent = {{-13.452, -20}, {13.452, 20}}, textString = "A"), Text(visible = true, origin = {73.452, -43.134}, textColor = {0, 128, 0}, extent = {{-13.452, -20}, {13.452, 20}}, textString = "B"), Ellipse(visible = true, origin = {1.899, 0}, lineColor = {0, 128, 0}, fillColor = {0, 128, 0}, fillPattern = FillPattern.Solid, lineThickness = 5, extent = {{-15.107, -15.107}, {15.107, 15.107}}), Text(visible = true, origin = {2.487, 1}, textColor = {255, 255, 255}, extent = {{-16.513, -12.307}, {16.513, 12.307}}, textString = "X", textStyle = {TextStyle.Bold})}), Diagram(coordinateSystem(extent = {{-148.5, -105}, {148.5, 105}}, preserveAspectRatio = true, initialScale = 0.1, grid = {5, 5})));
  end UnidirectionalFlow;

  partial model Interaction "Icon for interactional flow classes"
    annotation(Icon(coordinateSystem(extent = {{-100, -100}, {100, 100}}, preserveAspectRatio = true, initialScale = 0.1, grid = {10, 10}), graphics = {Rectangle(visible = true, lineColor = {0, 128, 0}, fillColor = {255, 255, 255}, fillPattern = FillPattern.Solid, lineThickness = 5, extent = {{-100, -100}, {100, 100}}), Line(visible = true, origin = {-1.596, -11.973}, points = {{-71, 0}, {71, 0}}, color = {0, 128, 0}, thickness = 5), Line(visible = true, origin = {-0.216, 11.777}, points = {{-73, 0}, {73, 0}}, color = {0, 128, 0}, thickness = 5), Polygon(visible = true, origin = {72.114, -0.25}, rotation = -450, lineColor = {0, 128, 0}, fillColor = {0, 128, 0}, fillPattern = FillPattern.Solid, points = {{-22.295, -7.943}, {22.191, -7.943}, {0.104, 15.886}}), Text(visible = true, origin = {-73.452, 37.479}, textColor = {0, 128, 0}, extent = {{-13.452, -20}, {13.452, 20}}, textString = "A"), Text(visible = true, origin = {73.452, -43.134}, textColor = {0, 128, 0}, extent = {{-13.452, -20}, {13.452, 20}}, textString = "B"), Polygon(visible = true, origin = {-72.424, 0}, rotation = 450, lineColor = {0, 128, 0}, fillColor = {0, 128, 0}, fillPattern = FillPattern.Solid, points = {{22.295, -7.943}, {-22.191, -7.943}, {-0.104, 15.886}}), Rectangle(visible = true, origin = {40.723, 0.173}, lineColor = {0, 128, 0}, fillColor = {0, 128, 0}, fillPattern = FillPattern.Solid, extent = {{-26.573, -12.251}, {26.573, 12.251}}), Ellipse(visible = true, origin = {1.899, 0}, lineColor = {255, 255, 255}, fillColor = {0, 128, 0}, fillPattern = FillPattern.Solid, lineThickness = 5, extent = {{-15.107, -15.107}, {15.107, 15.107}}), Text(visible = true, origin = {2.487, 0}, textColor = {255, 255, 255}, extent = {{-16.513, -12.307}, {16.513, 12.307}}, textString = "X", textStyle = {TextStyle.Bold}), Text(visible = true, origin = {74.452, -0.51}, textColor = {255, 255, 255}, extent = {{-13.452, -20}, {13.452, 20}}, textString = "+", fontSize = 72), Text(visible = true, origin = {-74.548, -0.51}, textColor = {255, 255, 255}, extent = {{-13.452, -20}, {13.452, 20}}, textString = "+", fontSize = 72)}), Diagram(coordinateSystem(extent = {{-148.5, -105}, {148.5, 105}}, preserveAspectRatio = true, initialScale = 0.1, grid = {5, 5})));
  end Interaction;

  replaceable Interaction interaction1 annotation(Placement(visible = true, transformation(origin = {-30, 10}, extent = {{-10, -10}, {10, 10}}, rotation = 0)));
  replaceable UnidirectionalFlow unidirectionalFlow1 annotation(Placement(visible = true, transformation(origin = {10, 10}, extent = {{-10, -10}, {10, 10}}, rotation = 0)));
  annotation(Diagram(coordinateSystem(extent = {{-150, -90}, {150, 90}}, preserveAspectRatio = true, initialScale = 0.1, grid = {5, 5})), Icon(coordinateSystem(extent = {{-100, -100}, {100, 100}}, preserveAspectRatio = true, initialScale = 0.1, grid = {10, 10}), graphics = {Rectangle(visible = true, lineColor = {0, 114, 195}, fillColor = {255, 255, 255}, extent = {{-100, -100}, {100, 100}}, radius = 25), Text(visible = true, textColor = {64, 64, 64}, extent = {{-150, 110}, {150, 150}}, textString = "%name")}));
end DemoIconDisplay;

Now in a Mathematica notebook I can read in the model or enter it as a string (escaping the quotes and backlashes to appear verbatim) model = ImportString[ " <paste code here> ", "mo" ].

model = SystemModel["DemoIconDisplay"] (* or model = ImportString[ " <paste code here> ", "mo" ] *)

ModelRepresentation

The model representation already does not look too good being very coarsely rendered. Let's look at the individual components' icons:

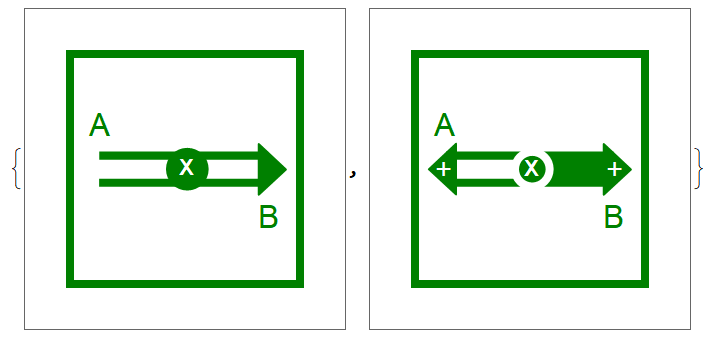

Through[ model["Children"]["ModelicaIcon"] ]

IconView

That is exactly how the components' icons look in System Model and in System Modeler Diagrams (using Version 12.0). All is nice and crisp.

But now, let's have a look at a model diagram, where the partial models have been instantiated. Again, in Mathematica, we do:

model["Diagram"]

DiagramView

The display is "broken" and looks rather ugly. Unfortunately, there are even worse examples.

What can be done about this?

Regards,

Guido

EDIT:

While the above is a minimal example, I feel like giving more explicit examples to demonstrate, that the display of diagrams (i.e. SystemModel["model"]["Diagram"] ) in its present form is rather completely useless:

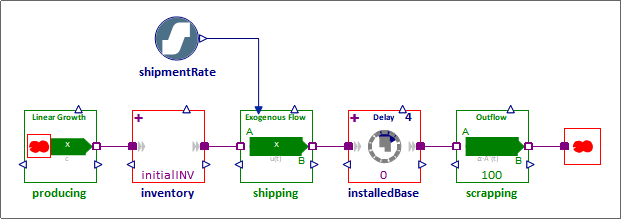

Example1 (WSM Model Center):

Example1_Original

Example1 (Mathematica):

Example1

Example2 (WSM Model Center):

Example2_Original

Example2 (Mathematica):

Example2

3 Replies

This looks like a HighDPI support issue. Mathematica has been compatible with macOS's "Retina display" for awhile, but I tested your code and it looks like the SystemModel functions don't fully support HighDPI displays

Eric, I wasn't even thinking about a HighDPI-issue, since I am just working with FullHD resolution here? Is this about vector graphics as opposed to rasterized graphics?

Posted 24 days ago

Hi Guido,

The rendering of line thickness in models/icons is a bug that we are working on. We have had an ongoing and previously reported issue of unexpected behavior with the general rendering of line thickness in Mathematica and its relative size compared to other graphical objects.

Similarly, as part of the development efforts of the upcoming release, we are reporting a bug related to text objects size, which is not always rendered as expected.

The output of SystemModel["model"] is a rasterized bitmap which is expected to be enhanced only by clicking in the plus icon on the upper-left corner.

Thanks for your input.

Sergio
