Resolve "Boundary condition discretization failed" error in NDSolve?

Posted 12 days ago
89 Views
|
0 Replies
|
0 Total Likes
|

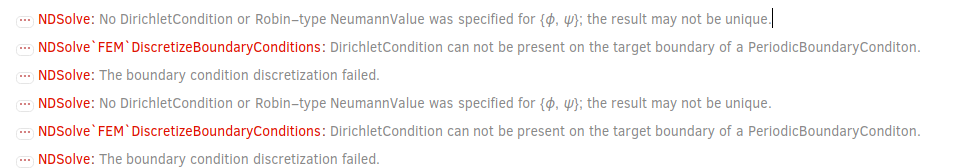

Hi all, I'm trying to solve a system of PDEs with periodic boundary conditions using NDSolve. This works if I don't specify an initial condition (but is uninteresting, giving the trivial solution u(x,y,t)=0). I tried specifying random initial conditions (which I believe are the most physical for the system of interest), but I get these "Boundary condition discretization failed" errors.

I haven't been able to find any reference to this error on a google search. What is causing it? I am enforcing this condition before feeding the initial condition into the solver. Any help is highly appreciated! (cross-posted to StackExchange to get some more eyes, as there doesn't seem to be much documentation of this problem anywhere) Boundary condition discretization failed

eps = 0.1
g1 = 1
random = Table[{x, y, RandomReal[]}, {x, 0, 2 \[Pi], 2 \[Pi]/10}, {y,
    0, 2 \[Pi], 2 \[Pi]/10}];
random[[All, -1, -1]] = random[[All, 1, -1]];
random[[-1, All, -1]] = random[[1, All, -1]];
iniIF = Interpolation[Flatten[random, 1]];
ini[x_, y_] := 1 + iniIF[x, y]

sols = NDSolve[{D[u[x, y, t], t] == (1 + eps)*u[x, y, t] +
     2 (\[Psi][x, y, t] + \[Phi][x, y, t]) +
     Laplacian[\[Psi][x, y, t], {x, y}] +
     Laplacian[\[Phi][x, y, t], {x, y}] + g1*u[x, y, t]^2 -
     u[x, y, t]^3,
    \[Phi][x, y, t] == D[u, {y, 2}],
    \[Psi][x, y, t] == D[u, {x, 2}],
    u[x, y, 0] == ini[x, y],
    PeriodicBoundaryCondition[u[x, y, t], x == 2 \[Pi],
    Function[x, x - 2 \[Pi]]],
   PeriodicBoundaryCondition[u[x, y, t], y == 2 \[Pi],
    Function[y, y - 2 \[Pi]]]},
        {u, \[Psi], \[Phi]},
        {t, 0, 100},
        {x, 0, 2 \[Pi]},
        {y, 0, 2 \[Pi]}
    ]
POSTED BY: Zhen L
