# [GIF] Rotation Redux (Inverse Cayley transform of rotating grid of circles)

Posted 2 months ago
744 Views
|
|
4 Total Likes
|

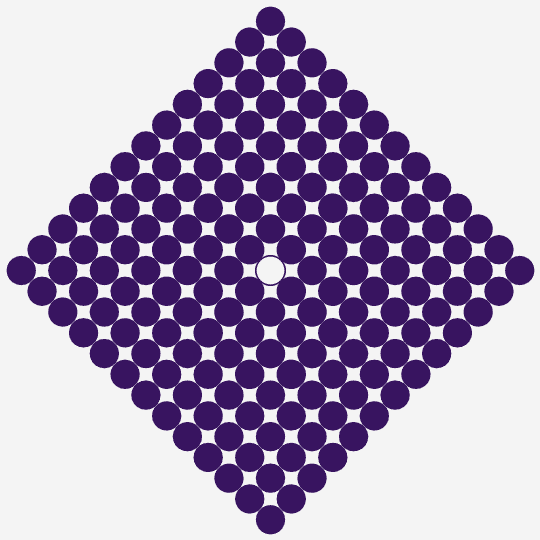

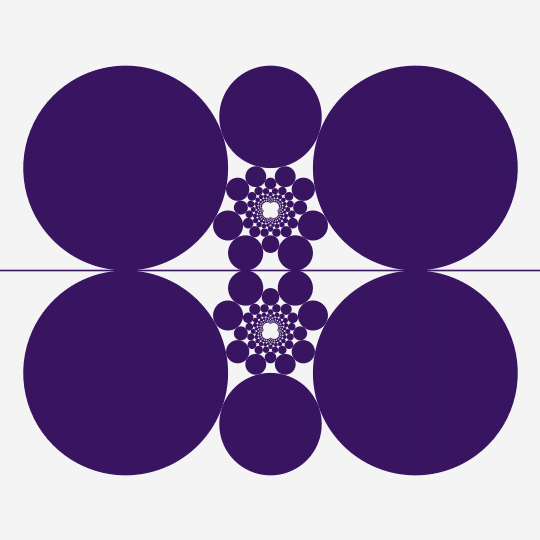

 Rotation ReduxA recent post by Dave Whyte (a.k.a. @beesandbombs) on Twitter reminded me of my old GIF Rotation, which is almost 5 years old (and dates back to before I was posting on the Wolfram Community). I figured it would be fun to do a new twist on the same basic animation.The basic idea is fairly simple: start with a rotating grid of circles:Apply the map $z \mapsto 1/z$ to the circles to invert them inside the unit circle:(Notice that the inside circles are rotating the other way; not surprising since $1/z$ is proportional to $\bar{z}$.)Now just apply the inverse of the Cayley transform which maps the upper half-plane to the interior of the unit circle (and the lower half-plane to the exterior) and you get the animation from the top of the post. InverseCayley[z_] := I (1 + z)/(1 - z); Here's the rest of the code: With[{r = 12., cols = RGBColor /@ {"#381460", "#f4f4f4"}}, Manipulate[ Graphics[ {cols[[1]], Thickness[.003], Line[{{-8, 0}, {8, 0}}], Table[ Polygon /@ Transpose[ Table[ {ReIm[InverseCayley[E^(I t) + #]], ReIm[InverseCayley[1/(E^(I t) + #)]]} &[E^(I ?)*(a + I b)], {t, 0., 2 ?, If[Norm[a + I b] < 8, 2 ?/400, 2 ?/20]} ] ], {a, -r, r, 2}, {b, DeleteCases[Range[-r, r, 2], If[a == 0., 0., 100]]}], If[Abs[? - ?/2] < .01, {Polygon[{{-8, 2.1}, {8, 2.1}, {8, 10}, {-8, 10}}], Polygon[{{-8, -2.1}, {8, -2.1}, {8, -10}, {-8, -10}}]}] }, PlotRange -> 4.5, Axes -> False, ImageSize -> {540, 540}, Background -> cols[[-1]]], {?, ?/4, 3 ?/4}] ]
