How to fill Table with with for sentence?

Posted 1 year ago
2496 Views
|
1 Reply
|
1 Total Likes
|

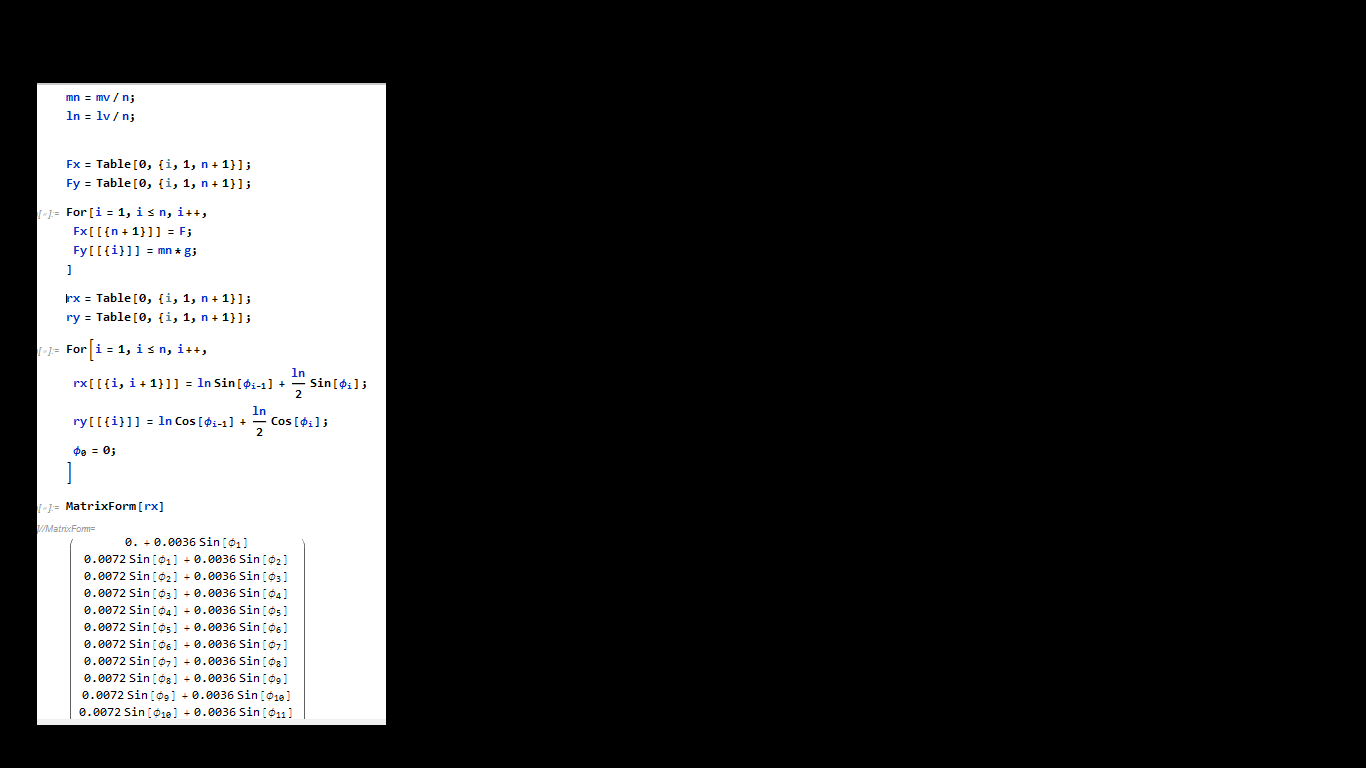

enter image description hereSo i have this code, and I have Fx and Fy as components of force vector and rx and ry as move vector (x,y components). I don't have any issue with Force vector, but i would like to fill rx and ry vector with this form of data for n components:

rx1=l/2 * Sin [fi1],
rx2=l * Sin [fi1] + l/2 * Sin [fi2]
rx3=l * Sin [fi1] + l * Sin [fi2] + l/2 * Sin [fi3] and so on

(I hope that pattern is recognizable, and for ry is the same only with cosines)

To write this by hand would take me too much time, so I am trying to use for sentence, but I am assuming I would use at least two FOR sentences and I have no idea how to do that.

You probably see where the problem is: each next element should have 1 element than the one before.

Thanks for your help.

Attachments:
Posted 1 year ago

Can you adapt this

n=3;
rx=Table[Sum[If[j<i,1,1/2]*I*Sin[Subscript[\[Phi],j]],{j,1,i}],{i,1,n}];
ry=Table[Sum[If[j<i,1,1/2]*I*Cos[Subscript[\[Phi],j]],{j,1,i}],{i,1,n}];

and then rx has the value

{(I/2)*Sin[Subscript[\[Phi], 1]],
 I*Sin[Subscript[\[Phi], 1]] + (I/2)*Sin[Subscript[\[Phi], 2]],
 I*Sin[Subscript[\[Phi], 1]] + I*Sin[Subscript[\[Phi], 2]] + (I/2)*Sin[Subscript[\[Phi], 3]]}

and ry is similar with Cos

If you only wish to use For then

n=3;
rx=Table[0,{n}];
For[i=1,i<=n,i++,
  For[j=1,j<=i,j++,
    rx[[i]]=rx[[i]]+If[j<i,1,1/2]*I*Sin[Subscript[\[Phi],j]]
  ]
];

will give you the same values for rx and similar code with Cos will give you the same values for ry
