Dear Daniel,
Thanks for your reply.
I sorted out the issue.
If you write the exponential (exp) by means of Taylor's polynomial you can see what the max n tern which suit you. The max n term to be chosen for Taylor's poly must be the one by which the grade of the polynomial at numerator of the transfer function is lower than the one at the denominator. That's the key to plot Bode plot properly.
In my case n=2. In this way, at the numerator the grade of the poly is 7. At denominator I got 8.

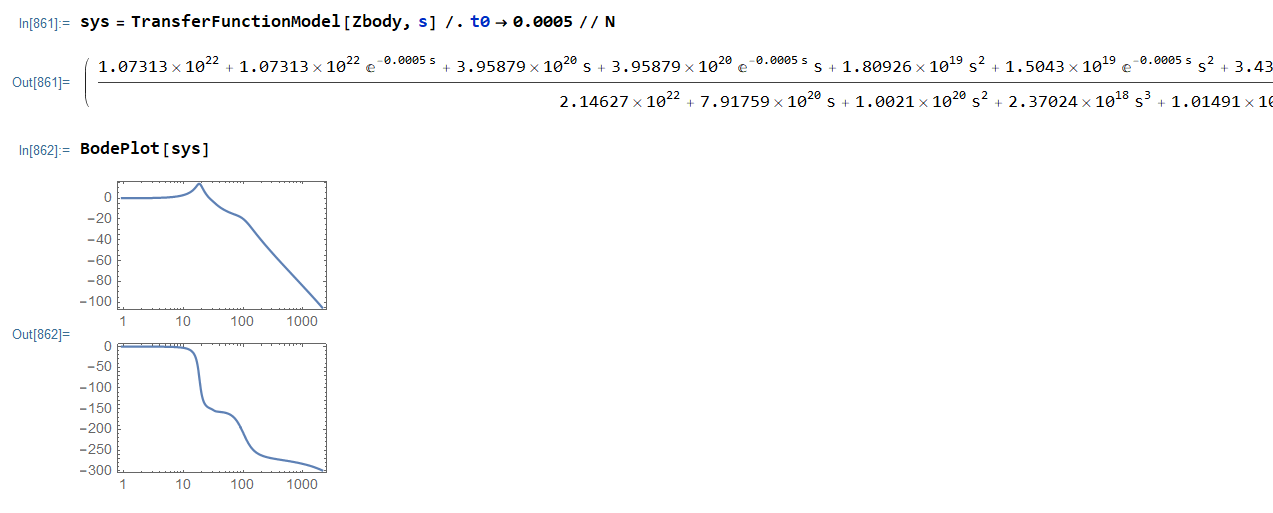

So by n=2 the system is stable and Bode plot looks good.
See below.
Please advise and give me your feeback.
Regards,
tay = Normal[Series[Exp[-T*s], {s, 0, 2}]]
Zbody2 = (1 (kf kft kr krt lf lr + kf kft kr krt lr^2 +
tay (kf kft kr krt lf^2 +
kf kft kr krt lf lr) + (cr kf kft krt lf lr +
cf kft kr krt lf lr + cr kf kft krt lr^2 +
cf kft kr krt lr^2 +
tay (cr kf kft krt lf^2 + cf kft kr krt lf^2 +
cr kf kft krt lf lr +
cf kft kr krt lf lr)) s + (Jyy kf kft kr +
Jyy kf kft krt + cf cr kft krt lf lr + cf cr kft krt lr^2 +
tay (Jyy kf kr krt + Jyy kft kr krt + cf cr kft krt lf^2 +
cf cr kft krt lf lr + kf kr krt lf^2 mf +
kf kr krt lf lr mf) + kf kft kr lf lr mr +
kf kft kr lr^2 mr) s^2 + (cr Jyy kf kft + cf Jyy kft kr +
cf Jyy kft krt +
tay (cr Jyy kf krt + cr Jyy kft krt + cf Jyy kr krt +
cr kf krt lf^2 mf + cf kr krt lf^2 mf +
cr kf krt lf lr mf + cf kr krt lf lr mf) +
cr kf kft lf lr mr + cf kft kr lf lr mr + cr kf kft lr^2 mr +
cf kft kr lr^2 mr) s^3 + (cf cr Jyy kft +
tay (cf cr Jyy krt + Jyy kr krt mf + cf cr krt lf^2 mf +
cf cr krt lf lr mf) + Jyy kf kft mr + cf cr kft lf lr mr +
cf cr kft lr^2 mr) s^4 + (cr tay Jyy krt mf +
cf Jyy kft mr) s^5))/(kf kft kr krt (lf +
lr)^2 + (cr kf kft krt (lf + lr)^2 +
cf kft kr krt (lf + lr)^2) s + (Jyy kf kr krt +
Jyy kft kr krt + cf cr kft krt (lf + lr)^2 +
kft kr krt lr^2 m + kf kft krt (Jyy + lf^2 m) +
kf kr krt (lf^2 mf + 2 lf lr mf + lr^2 (m + mf)) +
kf kft kr (Jyy + 2 lf lr mr + lr^2 mr +
lf^2 (m + mr))) s^2 + (cr Jyy kf krt + cr Jyy kft krt +
cf Jyy kr krt + cr kft krt lr^2 m + cf kft krt (Jyy + lf^2 m) +
cr kf krt (lf^2 mf + 2 lf lr mf + lr^2 (m + mf)) +
cf kr krt (lf^2 mf + 2 lf lr mf + lr^2 (m + mf)) +
cr kf kft (Jyy + 2 lf lr mr + lr^2 mr + lf^2 (m + mr)) +
cf kft kr (Jyy + 2 lf lr mr + lr^2 mr +
lf^2 (m + mr))) s^3 + (cf cr Jyy krt + Jyy kft krt m +
Jyy kr krt mf + kf krt lf^2 m mf + kr krt lr^2 m mf +
Jyy kf krt (m + mf) +
cf cr krt (lf^2 mf + 2 lf lr mf + lr^2 (m + mf)) +
kft kr lr^2 m mr + kf kft (Jyy + lf^2 m) mr +
Jyy kft kr (m + mr) + Jyy kf kr (m + mf + mr) +
cf cr kft (Jyy + 2 lf lr mr + lr^2 mr + lf^2 (m + mr)) +
kf kr (2 lf lr mf mr + lr^2 (m + mf) mr +
lf^2 mf (m + mr))) s^4 + (cr Jyy krt mf + cf krt lf^2 m mf +
cr krt lr^2 m mf + cf Jyy krt (m + mf) + cr kft lr^2 m mr +
cf kft (Jyy + lf^2 m) mr + cr Jyy kft (m + mr) +
cr Jyy kf (m + mf + mr) + cf Jyy kr (m + mf + mr) +
cr kf (2 lf lr mf mr + lr^2 (m + mf) mr + lf^2 mf (m + mr)) +
cf kr (2 lf lr mf mr + lr^2 (m + mf) mr +
lf^2 mf (m + mr))) s^5 + (Jyy krt m mf + Jyy kft m mr +
kf lf^2 m mf mr + kr lr^2 m mf mr + Jyy kf (m + mf) mr +
Jyy kr mf (m + mr) + cf cr Jyy (m + mf + mr) +
cf cr (2 lf lr mf mr + lr^2 (m + mf) mr +
lf^2 mf (m + mr))) s^6 + (cf lf^2 m mf mr +
cr lr^2 m mf mr + cf Jyy (m + mf) mr +
cr Jyy mf (m + mr)) s^7 + Jyy m mf mr s^8)
(2.14627*10^22 + 2.55191*10^20 s + 2.67558*10^19 s^2 +
4.25213*10^17 s^3 + 7.93216*10^15 s^4 + 3.27433*10^14 s^5 +
2.43854*10^12 s^6 + 2.42798*10^10 s^7) / (
2.14627*10^22 + 7.91759*10^20 s + 1.0021*10^20 s^2 +
2.37024*10^18 s^3 + 1.01491*10^17 s^4 + 1.37044*10^15 s^5 +
1.92069*10^13 s^6 + 1.09906*10^11 s^7 + 6.56832*10^8 s^8)

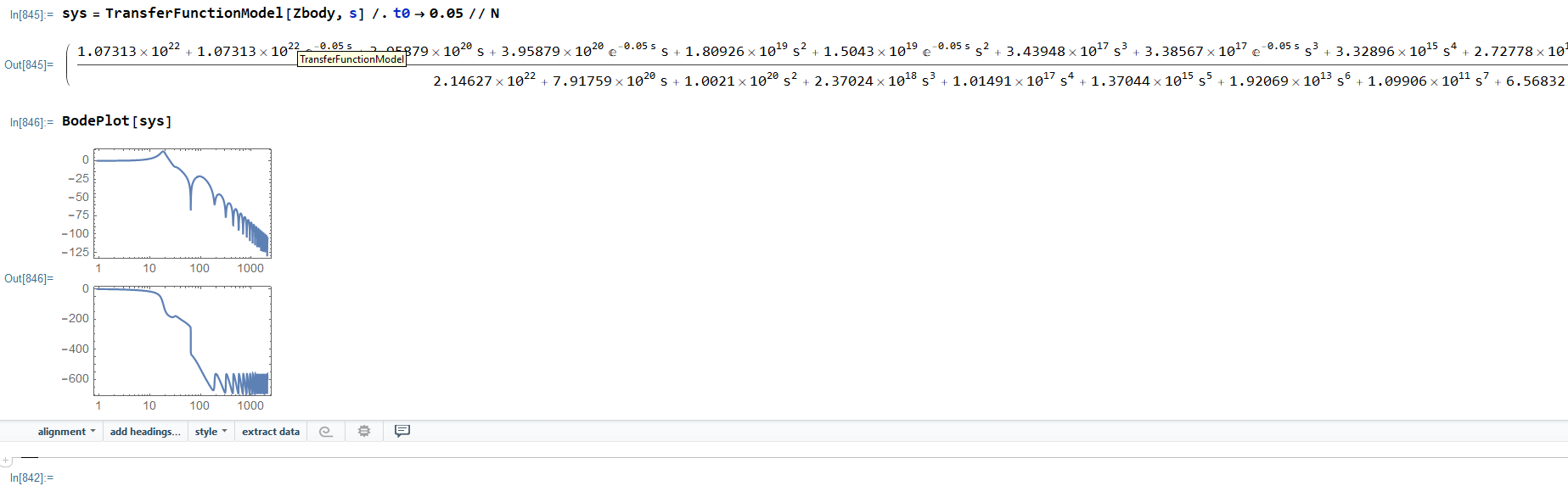

sys2 = TransferFunctionModel[Zbody2, s] /. T -> 0.05 // N
