[Solved] How to rotate FrameTicks by 90 Degree?

Jos Klaps

Jos Klaps, Home / Hobbyist

Posted 5 years ago

Hello, Please can you help? How to rotate the "FrameTicks" by 90 Degree? fakedata = {8, 1, 7, 61, 38, 0, 2, 0, 11, 10, 2, 0, 4, 26, 26, 3, 1, 1, 74, 52, 0, 0, 0, 3, 16}; ListPlot[Tooltip[fakedata] , Filling -> Axis , ImageSize -> 600 , AspectRatio -> 1/3 , Frame -> True , FrameTicksStyle -> Directive[Black, 10] , FrameTicks -> {{Automatic, Automatic} , {{{1, "0->0"}, {2, "0->1"}, {3, "0->2"}, {4, "0->3"}, {5, "0->4"} , {6, "1->0"}, {7, "1->1"}, {8, "1->2"}, {9, "1->3"}, {10, "1->4"} , {11, "2->0"}, {12, "2->1"}, {13, "2->2"}, {14, "2->3"}, {15, "2->4"} , {16, "3->0"}, {17, "3->1"}, {18, "3->2"}, {19, "3->3"}, {20, "3->4"} , {21, "4->0"}, {22, "4->1"}, {23, "4->2"}, {24, "4->3"}, {25, "4->4"} }, Automatic}} ] Best Regards and Thanks,....Jos

Hello,

Please can you help?

How to rotate the "FrameTicks" by 90 Degree?

fakedata = {8, 1, 7, 61, 38, 0, 2, 0, 11, 10, 2, 0, 4, 26, 26, 3, 1,
   1, 74, 52, 0, 0, 0, 3, 16};

ListPlot[Tooltip[fakedata]
 , Filling -> Axis
 , ImageSize -> 600
 , AspectRatio -> 1/3
 , Frame -> True
 , FrameTicksStyle -> Directive[Black, 10]
 , FrameTicks -> {{Automatic, Automatic}
   , {{{1, "0->0"}, {2, "0->1"}, {3, "0->2"}, {4, "0->3"}, {5, "0->4"}
     , {6, "1->0"}, {7, "1->1"}, {8, "1->2"}, {9, "1->3"}, {10, "1->4"}
     , {11, "2->0"}, {12, "2->1"}, {13, "2->2"}, {14, "2->3"}, {15,
      "2->4"}
     , {16, "3->0"}, {17, "3->1"}, {18, "3->2"}, {19, "3->3"}, {20,
      "3->4"}
     , {21, "4->0"}, {22, "4->1"}, {23, "4->2"}, {24, "4->3"}, {25,
      "4->4"}
     }, Automatic}}
 ]

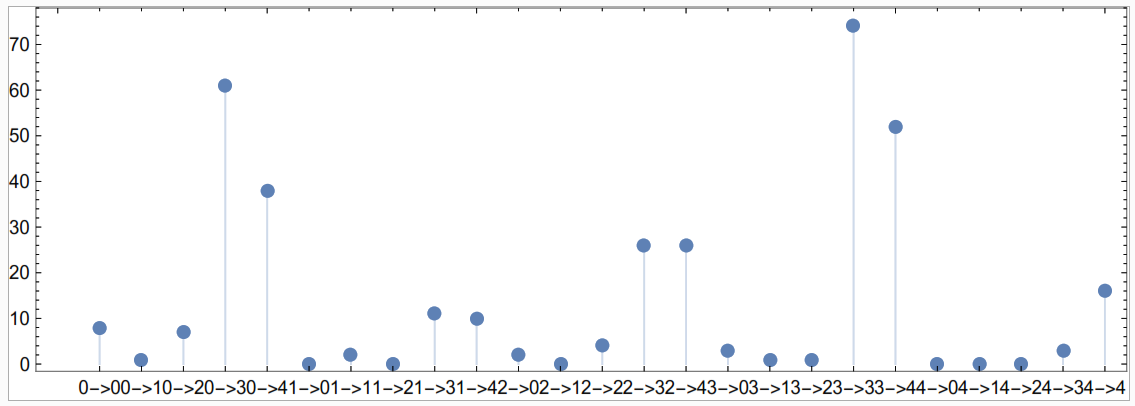

enter image description here

Best Regards and Thanks,....Jos

POSTED BY: Jos Klaps

2 Replies

Sort By:

Jos Klaps

Jos Klaps, Home / Hobbyist

Posted 5 years ago

Hello Rohit, Thanks for your quick reply and help. The code works perfectly now ! Best Regards,....Jos

POSTED BY: Jos Klaps

Rohit Namjoshi

Posted 5 years ago

Hi Jos, One way to do this tickValues={{1,"0->0"},{2,"0->1"},{3,"0->2"},{4,"0->3"}, {5,"0->4"},{6,"1->0"},{7,"1->1"},{8,"1->2"},{9,"1->3"}, {10,"1->4"},{11,"2->0"},{12,"2->1"},{13,"2->2"},{14,"2->3"}, {15,"2->4"},{16,"3->0"},{17,"3->1"},{18,"3->2"},{19,"3->3"}, {20,"3->4"},{21,"4->0"},{22,"4->1"},{23,"4->2"},{24,"4->3"},{25,"4->4"}}; ticks = MapAt[Rotate[#, Pi/2] &, tickValues, {All, -1}]; ListPlot[Tooltip[fakedata], Filling -> Axis, ImageSize -> 600, AspectRatio -> 1/3, Frame -> True, FrameTicksStyle -> Directive[Black, 10], FrameTicks -> {{Automatic, Automatic}, {ticks, Automatic}}]

Hi Jos,

One way to do this

tickValues={{1,"0->0"},{2,"0->1"},{3,"0->2"},{4,"0->3"},
  {5,"0->4"},{6,"1->0"},{7,"1->1"},{8,"1->2"},{9,"1->3"},
  {10,"1->4"},{11,"2->0"},{12,"2->1"},{13,"2->2"},{14,"2->3"},
  {15,"2->4"},{16,"3->0"},{17,"3->1"},{18,"3->2"},{19,"3->3"},
  {20,"3->4"},{21,"4->0"},{22,"4->1"},{23,"4->2"},{24,"4->3"},{25,"4->4"}};

ticks = MapAt[Rotate[#, Pi/2] &, tickValues, {All, -1}];

ListPlot[Tooltip[fakedata],
 Filling -> Axis,
 ImageSize -> 600,
 AspectRatio -> 1/3,
 Frame -> True,
 FrameTicksStyle -> Directive[Black, 10],
 FrameTicks -> {{Automatic, Automatic}, {ticks, Automatic}}]

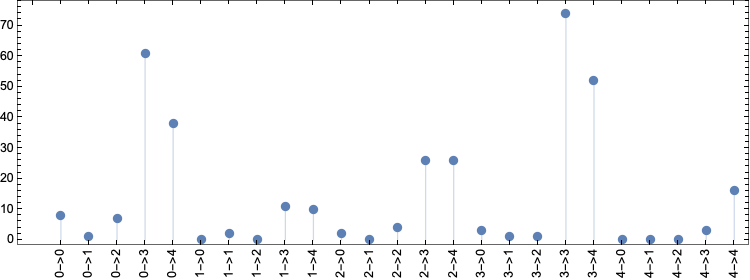

enter image description here

POSTED BY: Rohit Namjoshi
