[Solved] Multiple di-edges between same vertices with different colors?

Richard Frost

Richard Frost, Frost Concepts

Posted 3 years ago

I'd like these edges to be different colors. Is there a way to specify it?

POSTED BY: Richard Frost

2 Replies

Sort By:

Rohit Namjoshi

Posted 3 years ago

Hi Richard, In V 12.1 you can use `EdgeTaggedGraph`. g = EdgeTaggedGraph[{Style["A" \[DirectedEdge] "B", Green], Style["A" \[DirectedEdge] "B", Cyan], Style["A" \[DirectedEdge] "B", Blue]}, VertexStyle -> Black, GraphLayout -> "LayeredDigraphEmbedding", ImageSize -> 48]

Hi Richard,

In V 12.1 you can use EdgeTaggedGraph.

g = EdgeTaggedGraph[{Style["A" \[DirectedEdge] "B", Green],
   Style["A" \[DirectedEdge] "B", Cyan],
   Style["A" \[DirectedEdge] "B", Blue]},
  VertexStyle -> Black,
  GraphLayout -> "LayeredDigraphEmbedding",
  ImageSize -> 48]

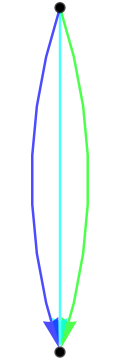

enter image description here

POSTED BY: Rohit Namjoshi

Richard Frost

Richard Frost, Frost Concepts

Posted 3 years ago

Ok! Thank you for all your help to date.

POSTED BY: Richard Frost
