Moisture equation

Posted 2 months ago
304 Views
|
1 Reply
|
1 Total Likes
|

Hi,

My problem It is about the diffusive transport equation designed for a two-dimensional plane. The physical problem consists in predicting the drying time according to the radial and tangential humidity of a 48 mm by 48 mm piece of radiata pine wood.

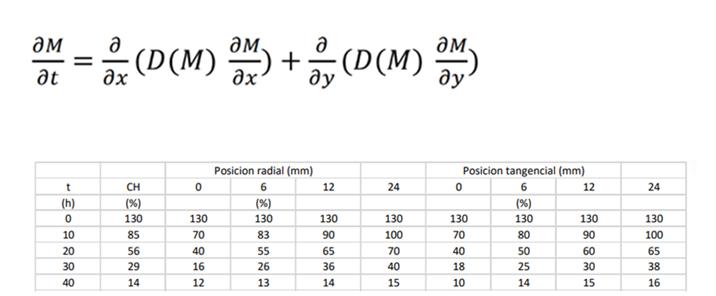

I need to use this equation.

I need to be able to get this same data:

The idea is to design a code in wolfram mathematica to obtain radial vs. CHO (Moisture Content) and tangential vs. CHO graphs. I've been using this code but I can't get the necessary results

Ec = D[CH[x, y, t], t] ==
   Dm*(D[CH[x, y, t], x, x] + D[CH[x, y, t], y, y]);

Ecx = D[CH[x, y, t], t] == Dm*(D[CH[x, y, t], x, x]);

Ecy = D[CH[x, y, t], t] == Dm*(D[CH[x, y, t], y, y]);

M0 = 130;

a = -21.05;

b = 18.5;

Dm = Exp[a + (b*CH[x, y, t])];

ci = CH[x, y, 0] == M0;

ejes = 24;

R = {D[CH[x, y, t], x] == 0 /. x -> 0,
   D[CH[x, y, t], y] == 0 /. y -> 0,
   D[CH[x, y, t], x] == 0 /. x -> ejes,
   D[CH[x, y, t], y] == 0 /. y -> ejes};

H = NDSolve[{Ec, ci, R}, CH, {t, 0, 40}, {x, 0, ejes}, {y, 0, ejes}];

enter image description here

Welcome to Wolfram Community!
Please make sure you know the rules: https://wolfr.am/READ-1ST
Your post is too vague. Please EDIT your post and describe your subject extensively providing the details, examples, and other relevant ideas, so it is clear what exactly you are looking for.
