Change ColorFunction in imported stl file into graphics3D expression?

Ehud Behar
Posted 5 years ago

I have a .stl file that I want to import into a Graphics3D expression, for which I use the command

Import["ExampleData/seashell.stl", "Graphics3D"]

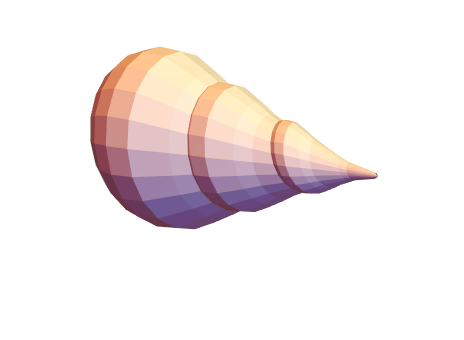

enter image description here

As you can see, the color function mainly consists of pink and purple, and I want to change it.

Adding the ColorFunction option to the Import command doesn't make any change:

Import["ExampleData/seashell.stl", "Graphics3D",
 ColorFunction -> "TemperatureMap"(*for example*)]

How can I change the color appearance of the 3D object?
POSTED BY: Ehud Behar
2 Replies
Sort By:

Ehud,

what you basically need is Show. From documentation:

[Show] shows graphics with the specified options added.

The imported object is a Graphics3D, so you can apply the respective options like so (as an example):

shell = Import["ExampleData/seashell.stl", "Graphics3D"];
Show[shell, BaseStyle -> {Gray, Opacity[.6], Specularity[Red, 8]}, Lighting -> Automatic]

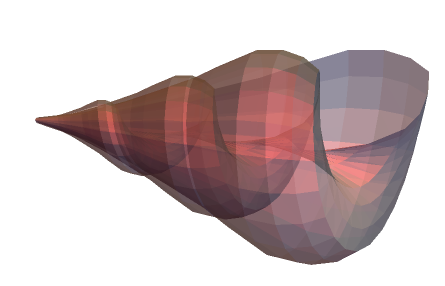

enter image description here
POSTED BY: Henrik Schachner
Ehud Behar
Ehud Behar
Posted 5 years ago

Thanks!
POSTED BY: Ehud Behar
