Nice visualisations of complex functions similar to ComplexPlot

Posted 3 years ago

First example:

Image[
 With[{s = N[2 Pi], r = N[Range[-4, 4, 8/299]]},
  Map[{Arg[#]/s,
     1, (# Conjugate[#])^0.33 &[Times @@ Sin[s ReIm[#]]]} &,
   Mod[#/LogGamma[Abs[#]^-10.5] (1 + I Sin[s/2 Abs[#]]), 2] &[
    Outer[Complex, r, r]], {2}]], ColorSpace -> "HSB"]

Here's the result:

enter image description here

Second example:

Image[
 With[{s = N[2 Pi], r = N[Range[4/3, -4/3, -8/1497]]},
  Map[{Arg[#]/s,
     1, (# Conjugate[#])^0.33 &[Times @@ Sin[s ReIm[#]]]} &,
   Mod[Log[(1 + Abs[#])/(1 - Abs[#])]^0.25 # (-0.5 + I 0.1 Abs[#]),
      2] &[Outer[Complex, r, r]], {2}]], ColorSpace -> "HSB"]

Here's the result:

enter image description here

Sugesstion for Mathematica 13:

ComplexPlot could have the option ColorFunction -> "CyclicReIm" additionaly to the existing ColorFunction -> "CyclicReImLogAbs", then these above functions could be expressed directly in ComplexPlot.

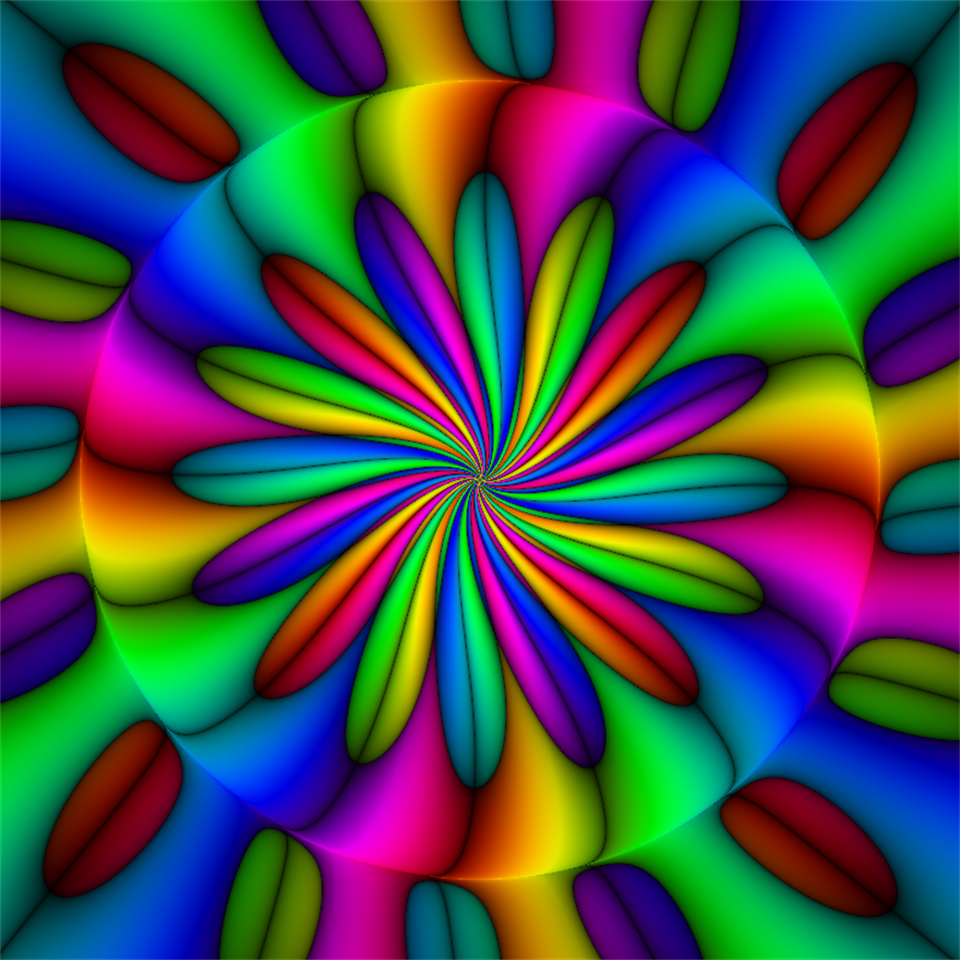

Some more functions generated with the code above (coffee beans?):

enter image description here

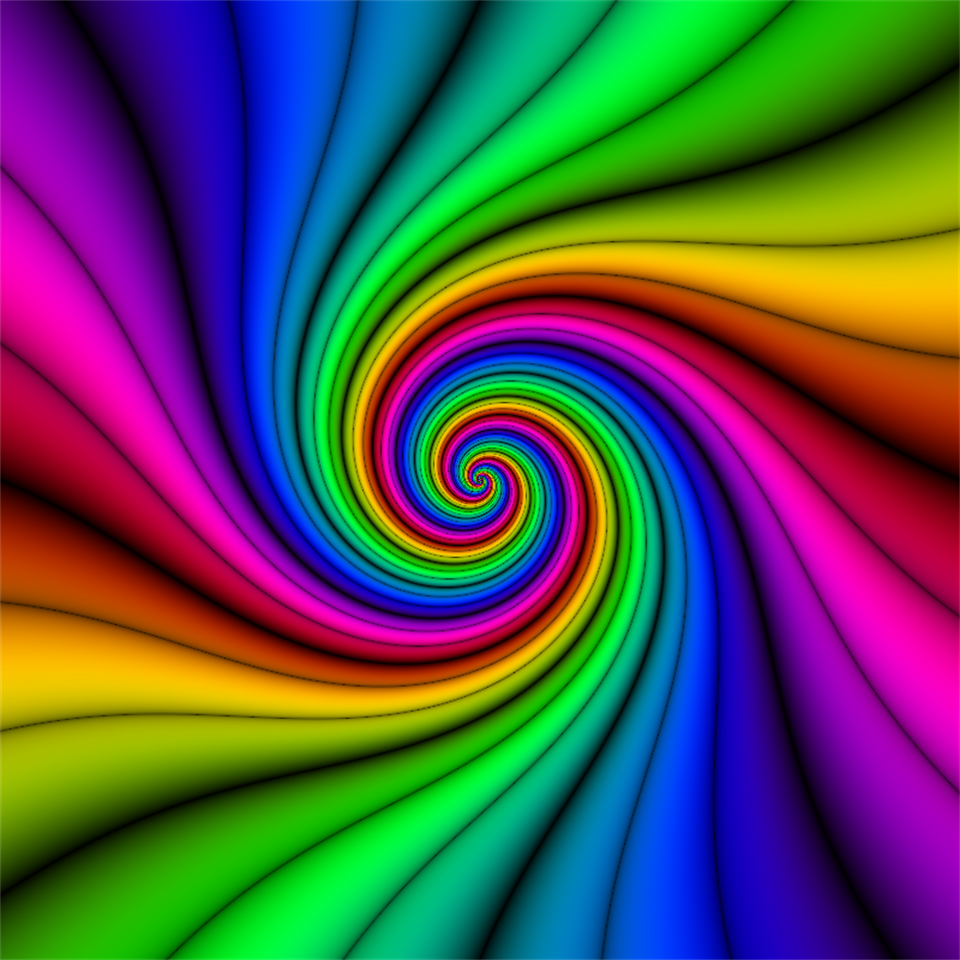

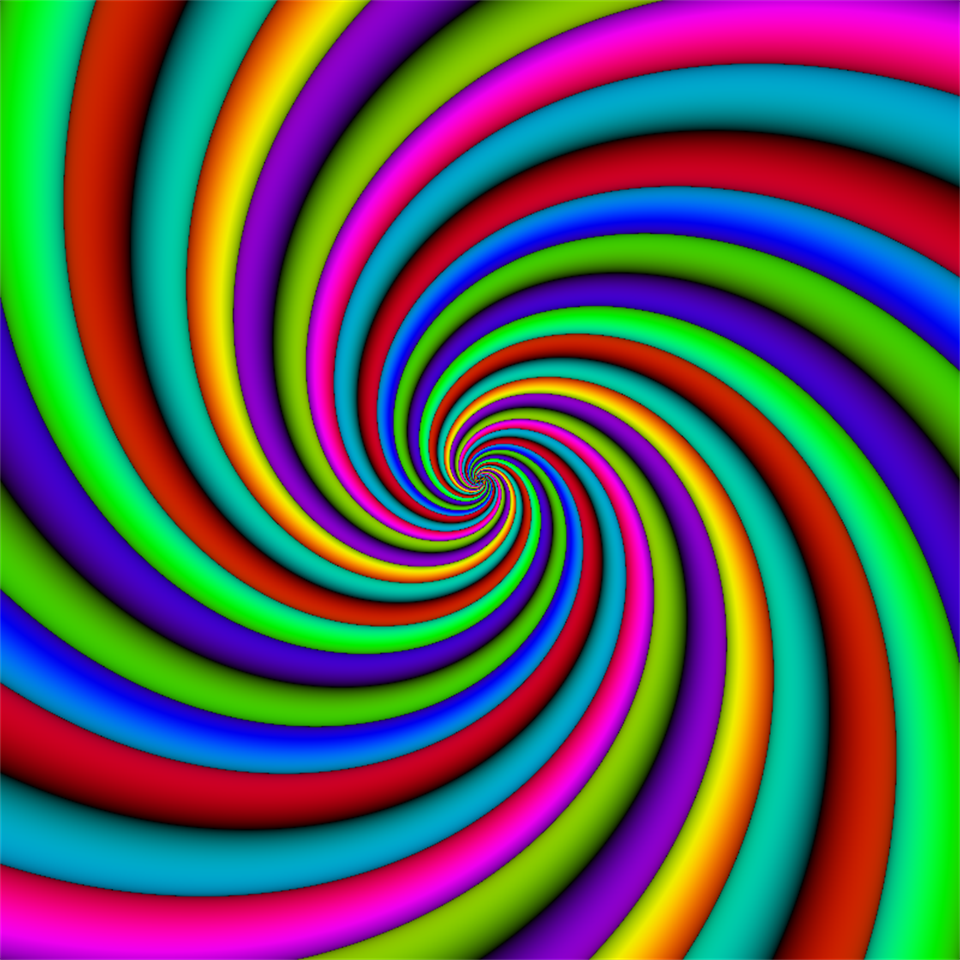

somehow hypnotic:

enter image description here

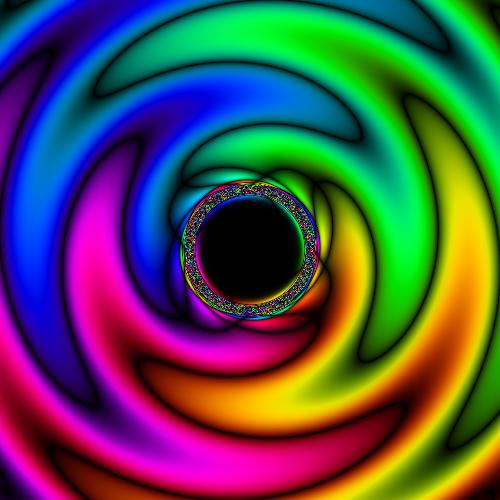

and even more whisked:

enter image description here

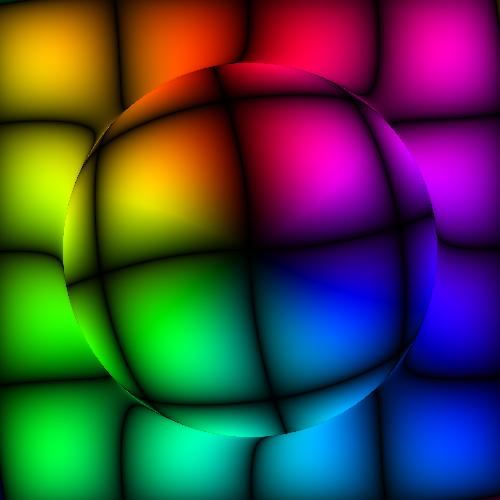

and simple again:

enter image description here

POSTED BY: Oliver Seipel
