I wrote this some time ago to put in the function repository, but have not done so yet because I wanted to add more functionality. To call the plot use
PeriodicTable[]

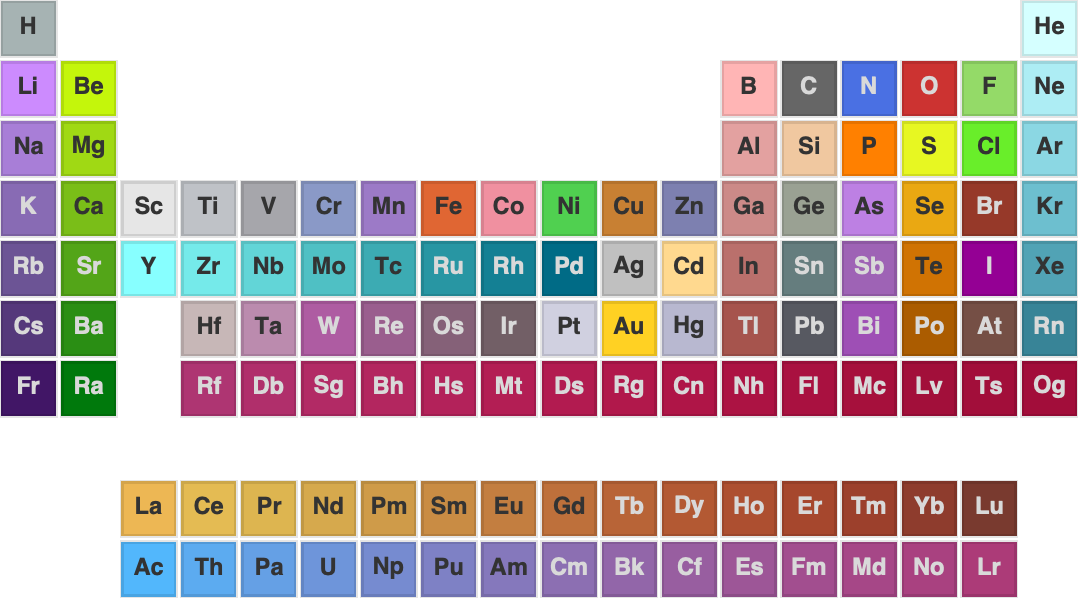

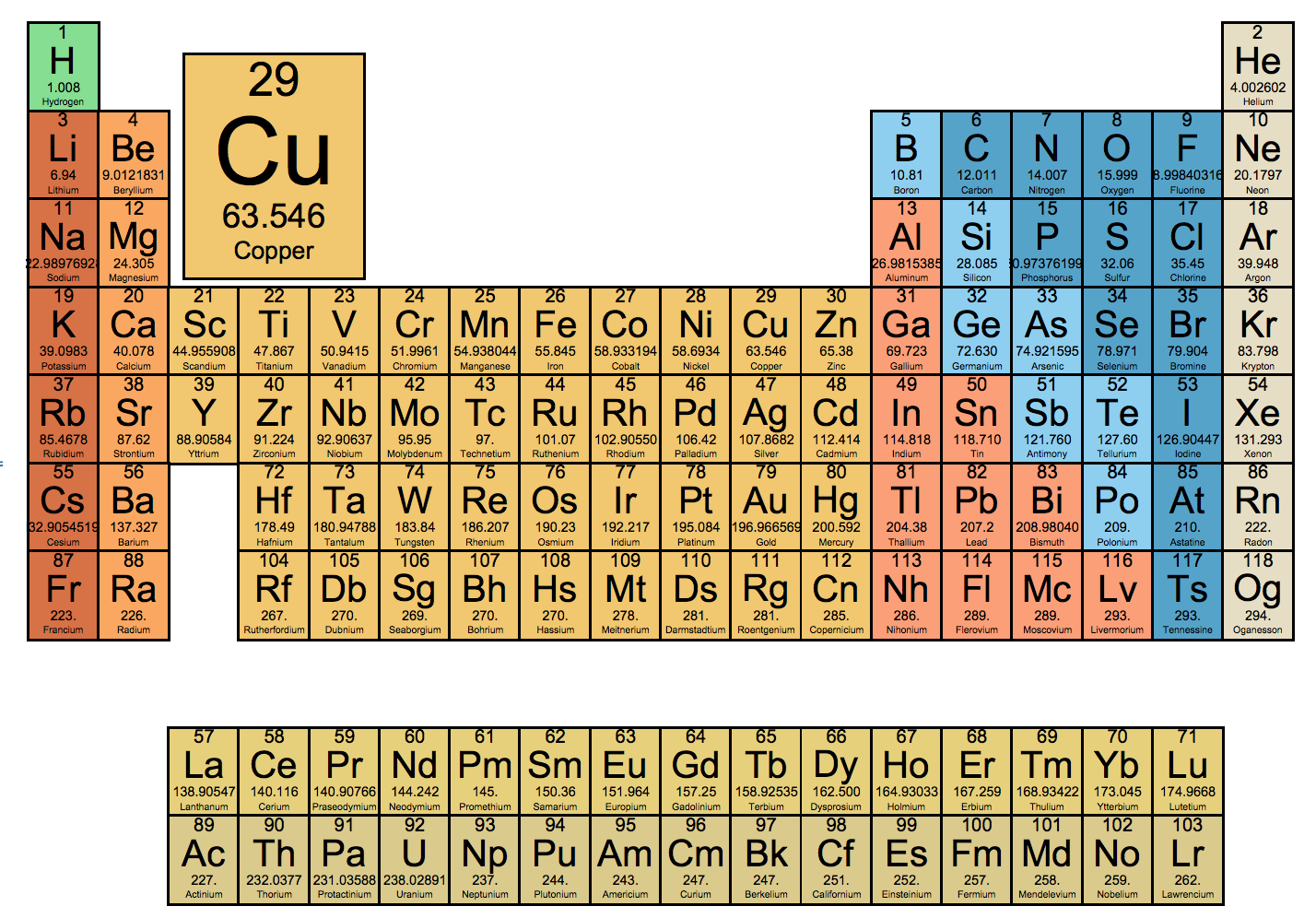

Just click on any element to view its box in larger detail. The function is defined as follows:
layout = {
{1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 2},
{3, 4, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 5, 6, 7, 8, 9, 10},
{11, 12, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 13, 14, 15, 16, 17, 18},
{19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35, 36},
{37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 47, 48, 49, 50, 51, 52, 53, 54},
{55, 56, 0, 72, 73, 74, 75, 76, 77, 78, 79, 80, 81, 82, 83, 84, 85, 86},
{87, 88, 0, 104, 105, 106, 107, 108, 109, 110, 111, 112, 113, 114, 115, 116, 117, 118},
{0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0},
{0, 0, 57, 58, 59, 60, 61, 62, 63, 64, 65, 66, 67, 68, 69, 70, 71, 0},
{0, 0, 89, 90, 91, 92, 93, 94, 95, 96, 97, 98, 99, 100, 101, 102, 103, 0}
};
hydrogenColor = RGBColor[130 / 255., 223 / 255., 142 / 255.];
alkaliColor = RGBColor[217 / 255., 114 / 255., 64 / 255.];
alkalineColor = RGBColor[252 / 255., 169 / 255., 90 / 255.];
transitionMetalColor = RGBColor[242 / 255., 200 / 255., 104 / 255.];
lanthanideColor = RGBColor[232 / 255., 209 / 255., 118 / 255.];
actinideColor = RGBColor[219 / 255., 203 / 255., 136 / 255.];
metalColor = RGBColor[252 / 255., 159 / 255., 116 / 255.];
semimetalColor = RGBColor[140 / 255., 207 / 255., 242 / 255.];
nonmetalColor = RGBColor[82 / 255., 162 / 255., 203 / 255.];
nobleGasColor = RGBColor[230 / 255., 222 / 255., 195 / 255.];
defaultcolors = {
"H" -> hydrogenColor, "He" -> nobleGasColor, "Li" -> alkaliColor, "Be" -> alkalineColor,
"B" -> semimetalColor, "C" -> nonmetalColor, "N" -> nonmetalColor, "O" -> nonmetalColor,
"F" -> nonmetalColor, "Ne" -> nobleGasColor, "Na" -> alkaliColor, "Mg" -> alkalineColor,
"Al" -> metalColor, "Si" -> semimetalColor, "P" -> nonmetalColor, "S" -> nonmetalColor,
"Cl" -> nonmetalColor, "Ar" -> nobleGasColor, "K" -> alkaliColor, "Ca" -> alkalineColor,
"Sc" -> transitionMetalColor, "Ti" -> transitionMetalColor, "V" -> transitionMetalColor,
"Cr" -> transitionMetalColor, "Mn" -> transitionMetalColor, "Fe" -> transitionMetalColor,
"Co" -> transitionMetalColor, "Ni" -> transitionMetalColor, "Cu" -> transitionMetalColor,
"Zn" -> transitionMetalColor, "Ga" -> metalColor, "Ge" -> semimetalColor, "As" -> semimetalColor,
"Se" -> nonmetalColor, "Br" -> nonmetalColor, "Kr" -> nobleGasColor, "Rb" -> alkaliColor,
"Sr" -> alkalineColor, "Y" -> transitionMetalColor, "Zr" -> transitionMetalColor,
"Nb" -> transitionMetalColor, "Mo" -> transitionMetalColor, "Tc" -> transitionMetalColor,
"Ru" -> transitionMetalColor, "Rh" -> transitionMetalColor, "Pd" -> transitionMetalColor,
"Ag" -> transitionMetalColor, "Cd" -> transitionMetalColor, "In" -> metalColor, "Sn" -> metalColor,
"Sb" -> semimetalColor, "Te" -> semimetalColor, "I" -> nonmetalColor, "Xe" -> nobleGasColor,
"Cs" -> alkaliColor, "Ba" -> alkalineColor, "Hf" -> transitionMetalColor, "Ta" -> transitionMetalColor,
"W" -> transitionMetalColor, "Re" -> transitionMetalColor, "Os" -> transitionMetalColor,
"Ir" -> transitionMetalColor, "Pt" -> transitionMetalColor, "Au" -> transitionMetalColor,
"Hg" -> transitionMetalColor, "Tl" -> metalColor, "Pb" -> metalColor, "Bi" -> metalColor,
"Po" -> semimetalColor, "At" -> nonmetalColor, "Rn" -> nobleGasColor, "Fr" -> alkaliColor,
"Ra" -> alkalineColor, "Rf" -> transitionMetalColor, "Db" -> transitionMetalColor,
"Sg" -> transitionMetalColor, "Bh" -> transitionMetalColor, "Hs" -> transitionMetalColor,
"Mt" -> transitionMetalColor, "Ds" -> transitionMetalColor, "Rg" -> transitionMetalColor,
"Cn" -> transitionMetalColor, "Nh" -> metalColor, "Fl" -> metalColor, "Mc" -> metalColor,
"Lv" -> metalColor, "Ts" -> nonmetalColor, "Og" -> nobleGasColor, "La" -> lanthanideColor,
"Ce" -> lanthanideColor, "Pr" -> lanthanideColor, "Nd" -> lanthanideColor, "Pm" -> lanthanideColor,
"Sm" -> lanthanideColor, "Eu" -> lanthanideColor, "Gd" -> lanthanideColor, "Tb" -> lanthanideColor,
"Dy" -> lanthanideColor, "Ho" -> lanthanideColor, "Er" -> lanthanideColor, "Tm" -> lanthanideColor,
"Yb" -> lanthanideColor, "Lu" -> lanthanideColor, "Ac" -> actinideColor, "Th" -> actinideColor,
"Pa" -> actinideColor, "U" -> actinideColor, "Np" -> actinideColor, "Pu" -> actinideColor,
"Am" -> actinideColor, "Cm" -> actinideColor, "Bk" -> actinideColor, "Cf" -> actinideColor,
"Es" -> actinideColor, "Fm" -> actinideColor, "Md" -> actinideColor, "No" -> actinideColor,
"Lr" -> actinideColor
};
Needs @ "Chemistry`";
selected = 1;
h = Length[layout] + 1;
elementBox[None] := "";
elementBox[atnum_, opts___] := Module[
{
sym = FromAtomicNumber @ atnum,
name = Capitalize @ ElementData[atnum, "Name"],
color,
mass = QuantityMagnitude @ ElementData[atnum, "AtomicMass"]
},
color = sym /. defaultcolors;
EventHandler[
Graphics[
{
{
color,
EdgeForm @ Directive @ Black,
Rectangle[{0, 0}, {1, 1.25}]
},
Inset[Style[atnum, Black, FontSize -> Scaled[0.25]], {0.5, 1.1}],
Inset[Style[sym, Black, FontSize -> Scaled[0.5]], {0.5, 0.7}],
Inset[Style[mass, Black, FontSize -> Scaled[0.18]], {0.5, 0.35}],
Inset[Style[name, Black, FontSize -> Scaled[0.13]], {0.5, 0.15}]
},
opts
],
{"MouseClicked" :> (selected = atnum)}
]
];
PeriodicTable[] := (
selected = None;
Graphics[
{
Inset[
Dynamic[elementBox @ selected, TrackedSymbols :> {selected}],
{3, 9},
{Center, Center},
{2.5, 2.5}
],
MapIndexed[
Function[
If[UnsameQ[#, 0],
Inset[
elementBox @ #,
{0, h} + {0.75, -0.94} * Reverse[#2],
{Center, Center},
{1, 1}
],
Nothing
]
],
layout, {2}
]
},
ImageSize -> 700
]
)
