What is the procedure of solving DAE in System Modeler?

Posted 2 months ago
447 Views
|
3 Replies
|
0 Total Likes
|

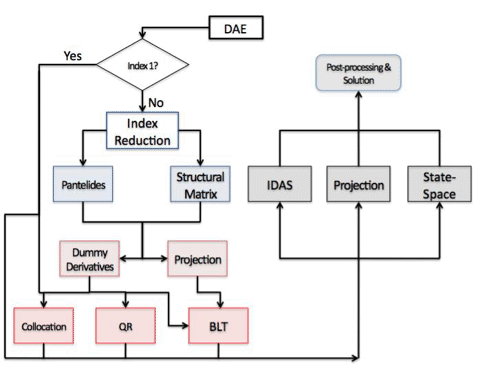

I am trying to understand the process of solving DAE in System Modeler, I found some illustration about how Mathematica solves DAE. Here is the link of how Mathematica solving DAE My question is:
Does System Modeler adopt the same procedure? enter image description here

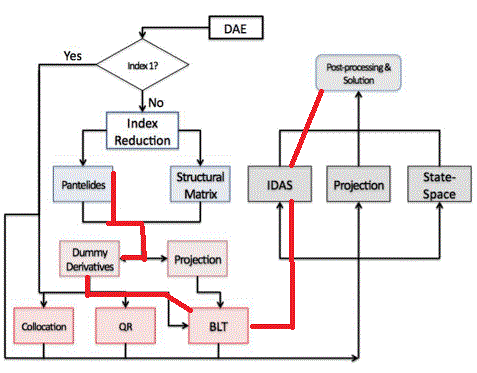

Here is the procedure I think Dymola and other platforms adopt, Does System Modeler also use the same procedure?
enter image description here

3 Replies
Posted 2 months ago

Yes, that is roughly what System Modeler does.

Posted 2 months ago

If there are many options in different phases, how does System Modeler determine to choose which method? I don't see any option to allow users to choose the method, so System Modeler must do this automatically. Where could I find the detailed info about the solving DAE process in the system modeler?

Posted 2 months ago

This question is far too broad to answer.

If you have a specific question, something you would like to with System Modeler, or a suggestion about the product, I might be able to help you better.
