On the use of WhenEvent[]

Posted 3 months ago
595 Views
|
2 Replies
|
0 Total Likes
|

Friends from the community,

I am using the function WhenEvent as explained inder WhenEvent/Applications/Power electronics/Boost Converter. The model use there considers only one logical(discrete variable) q[t]. However, it is a nice but oversimplified example, though. A beter example muts consider two logical variables. Is this possible with WhenEvent[]? I have searched a case like that without any luck.

I have tiried this

tf = 0.03;
system = {vo'[t] == -vo[t]/(r c) + i[t] (1 - q[t])/c ,
   i'[t] == (-(1 - q[t]) vo[t]/l + vi/l) g[t], vo[0] == 0,
   i[0] == 0};
control = {q[0] == 0,
   WhenEvent[Mod[t, \[Tau]] == 0.695 \[Tau], q[t] -> 0],
   WhenEvent[Mod[t, \[Tau]] == 0, q[t] -> 1]};
control1 = {g[0] == 0, WhenEvent[q[t] == 1, g[t] -> 1],
   WhenEvent[q[t] == 0 && i[t] != 0, g[t] -> 1],
   WhenEvent[q[t] == 0 && i[t] == 0, g[t] -> 0]};
pars = {vi -> 5, vd -> 16, r -> 15, l -> 50 10^-6,
   c -> 100 10^-6, \[Tau] -> 1/50000};
sol = NDSolve[{system, control, control1} /. pars, {vo, i, q, g}, {t,
    0, tf}, DiscreteVariables -> {q, g}, MaxSteps -> Infinity];
GraphicsColumn[{Plot[{vo[t] /. sol, vd /. pars}, {t, 0, tf},
   PlotRange -> All, PlotPoints -> 100],
  Plot[{i[t] /. sol}, {t, 0, tf}, PlotRange -> All],
  Plot[q[t] /. sol, {t, 0, .0004}]}]

Note that in this case q[t] and g[t] are related and must hold several constraints.

Can anyone help?

Thanks in advance.

Jesus

2 Replies

Jesus,

This code seems to work for me. What problem are you seeing? g[t] and q[t] are set separately. Since you never hit the case when q[t]==0 and i[t]==0, g[t] is never reset to 0. If you try this code, you will see that the concept works I set g[t] ->0 when q[t] is 0 and i[t] <5 (but clearly it is meaningless for your application).

tf = 0.03;
system = {vo'[t] == -vo[t]/(r c) + i[t] (1 - q[t])/c,
   i'[t] == (-(1 - q[t]) vo[t]/l + vi/l) g[t], vo[0] == 0,
   i[0] == 0};
control = {q[0] == 0,
   WhenEvent[Mod[t, \[Tau]] == 0.695 \[Tau], q[t] -> 0],
   WhenEvent[Mod[t, \[Tau]] == 0, q[t] -> 1]};
control1 = {g[0] == 0, WhenEvent[q[t] == 1, g[t] -> 1],
   WhenEvent[(q[t] == 0) && (i[t] != 0), g[t] -> 1],
   WhenEvent[(q[t] == 0) && (i[t] < 5), g[t] -> 0]};
pars = {vi -> 5, vd -> 16, r -> 15, l -> 50*^-6,
   c -> 100*^-6, \[Tau] -> 1/50000};
sol = NDSolve[{system, control, control1} /. pars, {vo, i, q, g}, {t,
    0, tf}, DiscreteVariables -> {q, g}, MaxSteps -> Infinity];
GraphicsColumn[{Plot[{vo[t] /. sol, vd /. pars}, {t, 0, tf},
   PlotRange -> All, PlotPoints -> 100],
  Plot[{i[t] /. sol}, {t, 0, tf}, PlotRange -> All],
  Plot[q[t] /. sol, {t, 0, .0004}],
  Plot[{g[t] /. sol}, {t, 0, tf}, PlotRange -> All]}]

One other note:

Mathematica notation for scientific notation is 50*^-6 to mean 50E-6 or 50 x 10^-6

Regards,

Neil

Dear Neil, Based on you observation I have changed my code to be

tf = 0.003;
system = {vo'[t] == -vo[t]/(r c) + i[t] (1 - q[t])/c,
   i'[t] == (-(1 - q[t]) vo[t]/l + vi/l) g[t], vo[0] == 0,
   i[0] == 0};
control = {q[0] == 0,
   WhenEvent[Mod[t, \[Tau]] == 0.695 \[Tau], q[t] -> 0],
   WhenEvent[Mod[t, \[Tau]] == 0, q[t] -> 1]};
control1 = {g[0] == 0, WhenEvent[q[t] == 1, g[t] -> 1],
   WhenEvent[(q[t] == 0) && (i[t] != 0), g[t] -> 1],
   WhenEvent[(q[t] == 0) && (i[t] <= 0), g[t] -> 0]};
pars = {vi -> 5, vd -> 16, r -> 15, l -> 50*^-6,
   c -> 100*^-6, \[Tau] -> 1/50000};
sol = NDSolve[{system, control, control1} /. pars, {vo, i, q, g}, {t,
    0, tf}, DiscreteVariables -> {q, g}, MaxSteps -> Infinity];
{Plot[{vo[t] /. sol, vd /. pars}, {t, 0, tf}, PlotRange -> All,
  PlotPoints -> 100],
 Plot[{i[t] /. sol}, {t, 0, tf}, PlotRange -> All],
 Plot[q[t] /. sol, {t, 0, .0004}],
 Plot[{g[t] /. sol}, {t, 0, tf}, PlotRange -> All]}

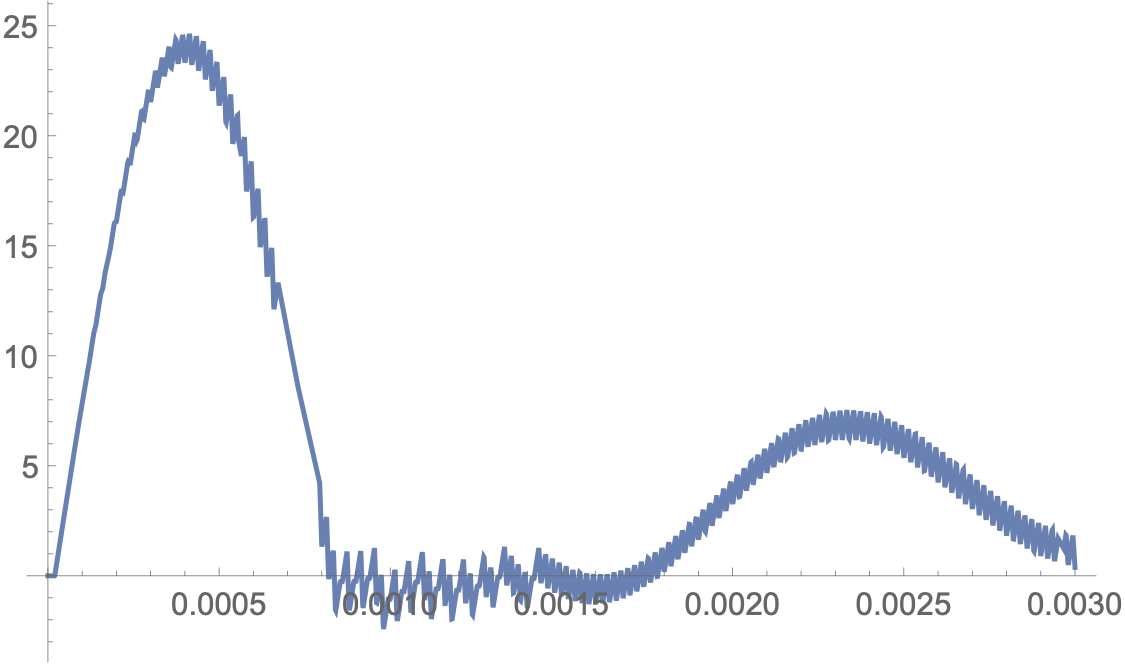

The response

enter image description here

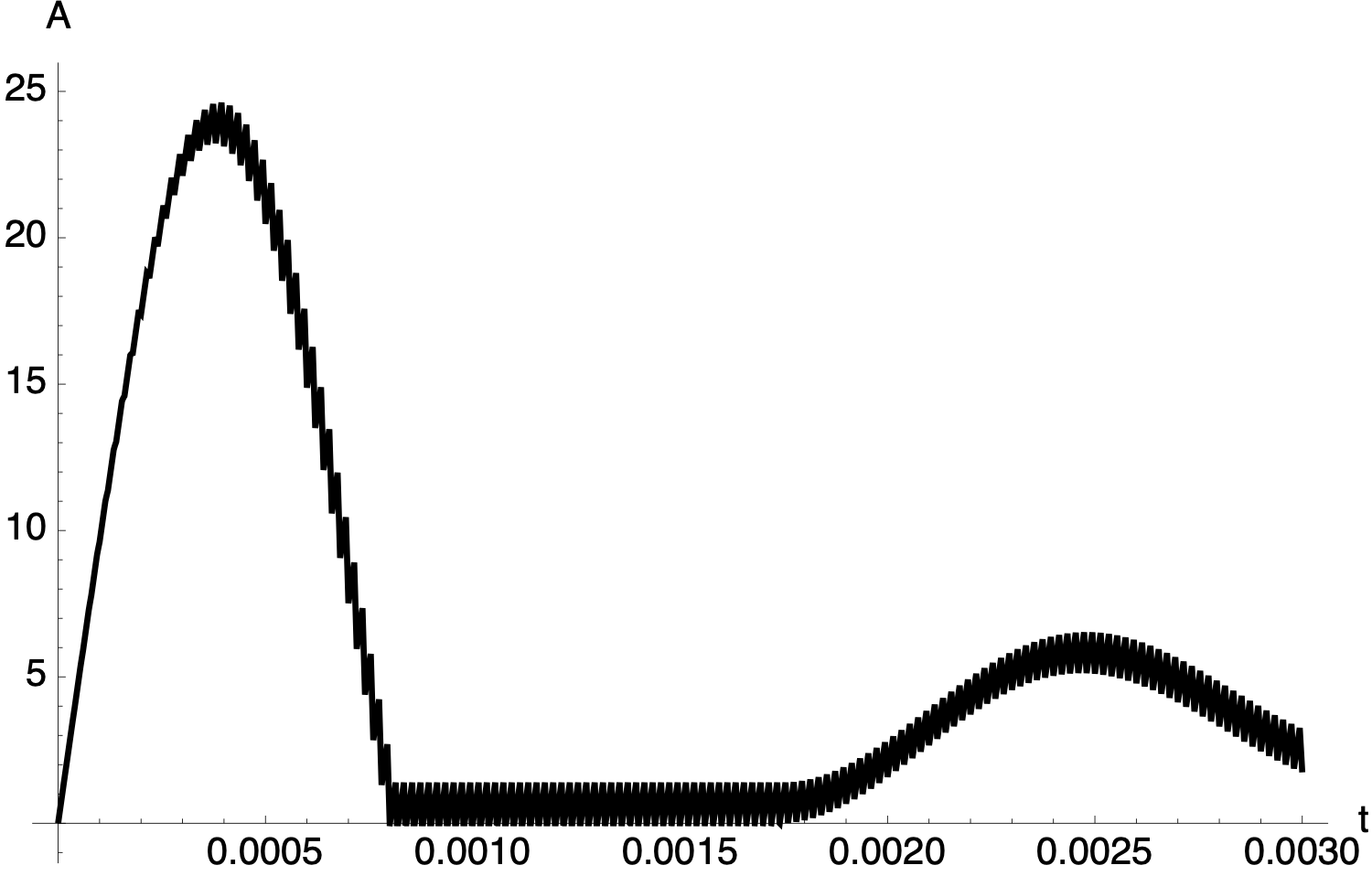

is closer to what is should be. See what happens in SystemModeler

enter image description here

It seems that some additional tuning is required but WhenEvent[] does a good job. Any ideas to improve the response to equate the WSM solution?

Regards,

Jesus
