Looking for a closed-form solution using Solve[ ]

Posted 4 years ago
4 Replies

Thank you for the suggestion.

Based on that, you can plot the answer. I put a Quiet[] in there because sometimes the solution has issues but you can get the idea by doing something like this:

Manipulate[
 ListLinePlot[
  Quiet[ans =
    Table[x /.
      FindRoot[
       a^2*Exp[x/a] + x^2/2*(1 - b) - a^2 - a*x*Exp[x/a] ==
        0, {x, -1, -100, -0.001}], {b, 0.01, 0.9, 0.01}]]], {{a, 0.3},
   0.1, 1}]

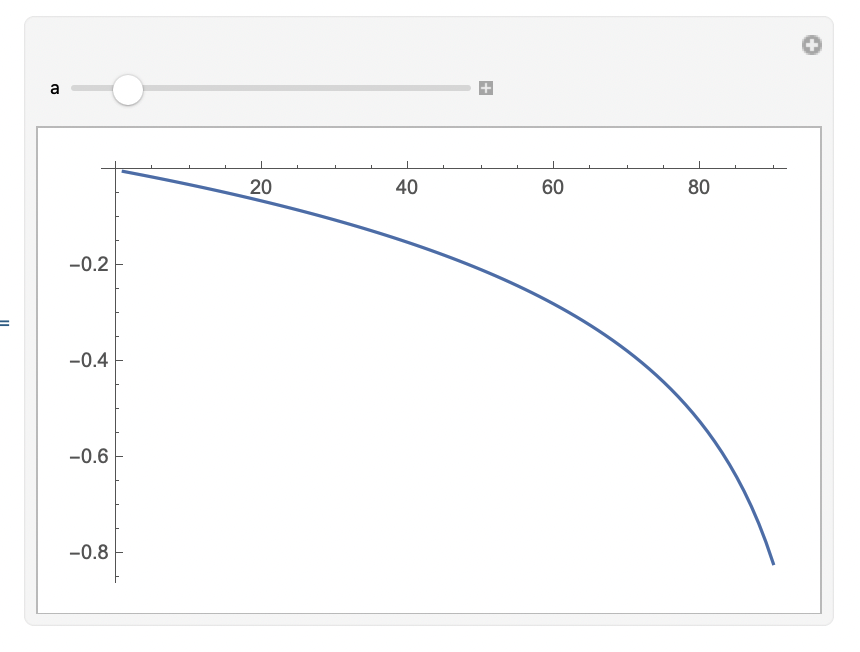

Giving a plot that looks like this for any value of a (only the y axis seems to change with a). This suggests you can easily do an excellent interpolation or an approximate curve fit.

enter image description here

POSTED BY: Neil Singer

It does not appear to have solutions for x<0. Just a cursory numerical exploration gives:

ans = Table[
  NSolve[a^2*Exp[x/a] + x^2/2*(1 - b) - a^2 - a*x*Exp[x/a] == 0 , x,
   Reals], {a, 1, 10}, {b, -5, 5}]

All solutions are zero and a positive number for x. I would make sure the equation is correct before "diving into" solving it.

Regards

Neil

POSTED BY: Neil Singer

Thank you for the quick reply. As I expect based on the physical reasoning that stays behind the derivation of this equation and looking at its plot, the solutions of this equation should be:

  • x1=x2=0 when b>=1

  • x1=0 and x2<0 when 0<b<1

  • x1=0 and x2>0 when b<0

So, one solution is always x=0. I'm mainly interested to derive the solution when 0<b<1. For example, when I solve it with NSolve and assuming a = 0.3 and b=0.5, the solutions are x=0 and x=-0.327474 as confirmed by the plot. I guess that the cursory numerical exploration suggested above did not provide negative solutions because the table command did not explore values 0<b<1.
