Solving from previous results

Posted 3 years ago

Hello, I require in this program to use only all the value of “p” form “solution 1” in “solution 2”. Instead of copy and paste each value of “p” individually in solution 2, I am trying to write a function to automatically calculate “da” and “s” from all output “p” in the same manipulate. Thanks for your help.

Attachments:
POSTED BY: Ma noj
8 Replies
Posted 3 years ago

Dear Mr. Rohit, I've been able to formulate the calculation I require. However, on the first run of the program, I obtain solutions. After , It automatically give errors, I attached the Notebook file. Thanks for your usual kind help

sol2 = Table[
  Take[Solve[
    -10 p - 26 t == 5 &&
     -5.3 p + 19 t == (var1 - 50),
    {p, t}]], {var1, 10, 20}]

pSol1 = p /. sol2 // Flatten

Dynamic[Manipulate[
  Column@Flatten[
     var2 = Solve[
         # == 0.42 - 2.4 s + 1.52 c &&
          d == 15 - 1.4 s + 0.4258 c] & /@ pSol1, 1] &&
   Dynamic[Column@Flatten[t = Sqrt[c]/var3]],
  {c, 10, 20, 1, Appearance -> {"Labeled", "Open"}}]]

Dynamic[var3 = s /. var2 // Flatten]
Attachments:
POSTED BY: Ma noj
Posted 3 years ago

Dear Sir, I would thank you very much again, it's working. I took the previous example to clarify. You'll notice that As we slide the s values changes, together with the c value. It would be that Sqrt[c] divide by the s value obtained as c changes. I attached the notebook also. Thank you for your kind consideration

    sol = Table[
       Take[Solve[
         -10 p - 26 t == 5 &&
          -5.3 p + 19 t == (var1 - 50),
         {p, t}]], {var1, 10, 20}];

    pSol = p /. sol // Flatten;

    Dynamic[Manipulate[
      Column@Flatten[
        var2 = Solve[
            # == 0.42 - 2.4 s + 1.52 c &&
             d == 15 - 1.4 s + 0.4258 c] & /@ pSol, 1],
      {c, 10, 50, 1, Appearance -> {"Labeled", "Open"}}]]

Dynamic[var3 = s /. var2 // Flatten]&[Wolfram Notebook][1]
Dynamic[tab1 = Table[i++, {i, 10, 30, 1}] // Flatten]
Sqrt[10]/var3, Sqrt[11]/var3, ... ....  (Sqrt[30]/var3) (*divide \
Sqrt[c] from 10 to 30 for their respective s value obtained from each \
c*)
POSTED BY: Ma noj
Posted 3 years ago

Dear Sir Thank you very much it works fine. I trying a last calculation whereby need to divide the Sqrt[c] from 10 to 30 for their respective s obtained from each c. I tried with the dynamic and For loop are not working. I’d be grateful for your help. Thanks and Regards,

Dynamic[var3 = s /. var2 // Flatten]
Dynamic[tab1 = Table[i++, {i, 10, 30, 1}] // Flatten]
Dynamic[Sqrt[10]/var3]
For[i = 10, i <= 50, i++, Print[Sqrt[i]/var3]]
Attachments:
POSTED BY: Ma noj
Posted 3 years ago

I am not sure I understand exactly what you are asking. I don't think Dynamic is needed.

Write a function to generate the solutions for given c so you can use it for many different purposes.

solutions[c_] :=
 Solve[# == 0.42 - 2.4 s + 1.52 c && d == 15 - 1.4 s + 0.4258 c] & /@ pSol // Flatten[#, 1] &

Display as a table

tableDisplay[c_] := solutions[c] // TableForm
Manipulate[tableDisplay[c], {c, 10, 50, 5}]

enter image description here

Display as a grid

gridDisplay[c_] :=
 solutions[c] // Values // Prepend[{"d", "s"}] //
  Grid[#,
    Frame -> All,
    Background -> {Automatic, 1 -> LightYellow},
    ItemStyle -> {Automatic, 1 -> Bold},
    Alignment -> {Center, Automatic, {{{2, -1}, {1, -1}} -> "."}}] &

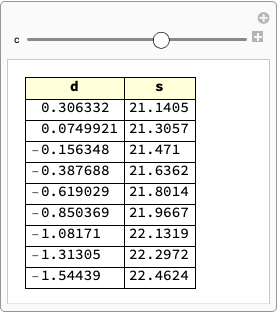

Manipulate[gridDisplay[c], {c, 10, 50, 5}]

enter image description here

Generate a set of solutions for c between 10 and 30 as an Association

solutionSet = AssociationMap[Association /@ solutions[#] &, Range[10, 30]]

All the s values for c = 10

sc10 = solutionSet[10] // Map[KeyTake[#, s] &] // Merge[Identity]
(* <|s -> {5.30714, 5.47239, 5.63763, 5.80287, 5.96812, 6.13336, 6.2986,
   6.46384, 6.62909}|> *)

Divide Sqrt[10] by each s value

Sqrt[10] / Flatten@Values@sc10
(* {0.595853, 0.577861, 0.560923, 0.54495, 0.529862, 0.515587, 0.50206, \
0.489225, 0.477031} *)

If you need to do this for many different values of c then combine the steps above into a single function.

POSTED BY: Rohit Namjoshi
Posted 3 years ago

Thanks you very much. It works well. Regarding the manipulate, can I have the results individually for each values of pSol I've been trying with MatrixForm and Map but they both yield all solved.

Manipulate[
 MatrixForm[Solve[
     # == 0.42 - 2.4 s + 1.52 c &&
      d == 15 - 1.4 s + 0.4258 c] & /@ pSol, {2}], {c, 10, 50, 5}]

Map[{Manipulate[
     Solve[
      # == 0.42 - 2.4 s + 1.52 c &&
       d == 15 - 1.4 s + 0.4258 c], {c, 10, 50, 5}] & /@ pSol}]
Attachments:
POSTED BY: Ma noj
Posted 3 years ago

Do you mean something like this?

Manipulate[
 Column@Flatten[Solve[
    # == 0.42 - 2.4 s + 1.52 c && d == 15 - 1.4 s + 0.4258 c] & /@ pSol, 1], {c, 10, 50, 5}]

enter image description here

POSTED BY: Rohit Namjoshi
Posted 3 years ago

Crossposted here.

POSTED BY: Rohit Namjoshi
Posted 3 years ago

Something like this?

sol = Table[
  Take[Solve[-10 p - 26 t == 5 && -5.3 p + 19 t == (var1 - 50),
    {p, t}]], {var1, 10, 30, 4}]

pSol = p /. sol // Flatten

Solve[# == 0.42 - 2.4 s + 1.52 c && da == 15 - 1.4 s + 0.425723972217329 c] & /@ pSol
POSTED BY: Rohit Namjoshi
