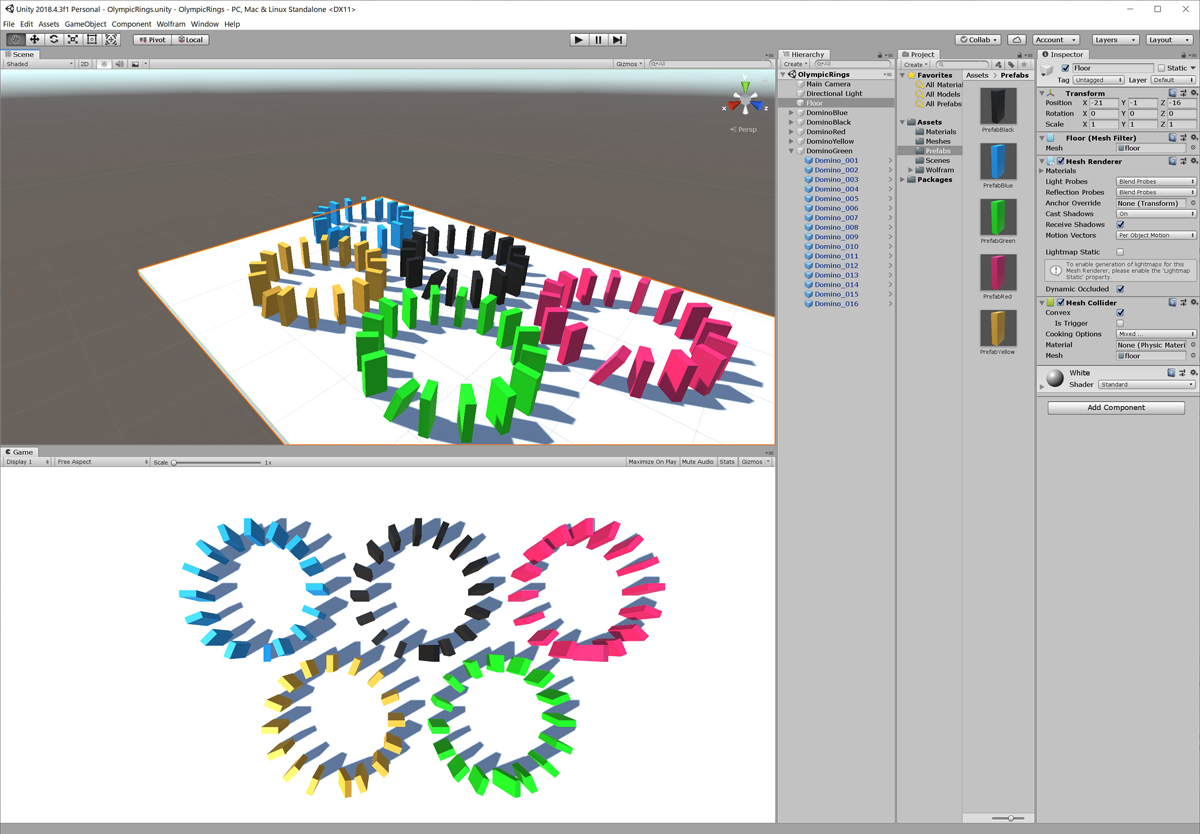

Olympic rings with Wolfram Language's UnityLink by Kotaro Okazaki The Tokyo Olympic Games are about to begin. The athletes from more than 200 countries will compete. My family has some tickets, but we will be watching the games at home. Init In[]:= Needs["UnityLink`"]UnityOpen["OlympicRings"] Generating Regions In[]:= (domino)width=2.5;height=5.0;depth=1.0;coordinates={{0,0},{width,0},{width,depth},{0,depth}};polygon=Polygon[coordinates];line=BoundaryMeshRegion[{{0},{height}},Point[{{1},{2}}]];regionDomino=RegionBoundary[RegionProduct[BoundaryMeshRegion[polygon],line]]; In[]:= (floor)width=60.0;height=1.0;depth=85.0;coordinates={{0,0},{width,0},{width,depth},{0,depth}};polygon=Polygon[coordinates];line=BoundaryMeshRegion[{{0},{height}},Point[{{1},{2}}]];regionFloor=RegionBoundary[RegionProduct[BoundaryMeshRegion[polygon],line]]; Preparing the Project In[]:= (Directories)CreateUnityAssetDirectory[{"Meshes","Materials","Scenes","Prefabs"}]; In[]:= (Meshes)meshDomino=CreateUnityMesh[File["Meshes/domino"],regionDomino];meshFloor=CreateUnityMesh[File["Meshes/floor"],regionFloor]; In[]:= (Materials)whiteMaterial=CreateUnityMaterial[File["Materials/White"],CMYKColor[0,0,0,0]];blueMaterial=CreateUnityMaterial[File["Materials/Blue"],CMYKColor[1,.37,0,0]];greenMaterial=CreateUnityMaterial[File["Materials/Green"],CMYKColor[1,0,1,0]];blackMaterial=CreateUnityMaterial[File["Materials/Black"],CMYKColor[0,0,0,1]];redMaterial=CreateUnityMaterial[File["Materials/Red"],CMYKColor[0,.94,.65,0]];yellowMaterial=CreateUnityMaterial[File["Materials/Yellow"],CMYKColor[0,.34,.91,0]]; In[]:= (Prefabs)domino=CreateUnityGameObject["domino",meshDomino];CreateUnityRigidbody[domino];domino[["MeshCollider","convex"]]=True;domino[["SharedMaterial"]]=blueMaterial;prefabBlue=CreateUnityPrefab[File["Prefabs/PrefabBlue"],domino];domino[["SharedMaterial"]]=blackMaterial;prefabBlack=CreateUnityPrefab[File["Prefabs/PrefabBlack"],domino];domino[["SharedMaterial"]]=redMaterial;prefabRed=CreateUnityPrefab[File["Prefabs/PrefabRed"],domino];domino[["SharedMaterial"]]=yellowMaterial;prefabYellow=CreateUnityPrefab[File["Prefabs/PrefabYellow"],domino];domino[["SharedMaterial"]]=greenMaterial;prefabGreen=CreateUnityPrefab[File["Prefabs/PrefabGreen"],domino];DeleteUnityGameObject[domino] Setting the Scene In[]:= (Scene)CreateUnityScene[File["Scenes/OlympicRings"]]; In[]:= (Floor)name="Floor";go=CreateUnityGameObject[name,meshFloor];go[["MeshCollider","convex"]]=True;go[["Transform","Position"]]={-21,-1,-16};go[["SharedMaterial"]]=whiteMaterial; In[]:= (fiveRings)createring[parentname_,prefab_]:=Module[{parent,dominocnt,name},parent=CreateUnityTransform[parentname];dominocnt=16;Do[name="Domino_"<>StringPadLeft[ToString[i],3,"0"];CreateUnityGameObject[name,prefab,Properties{"Position"8{Cos[2(i-1)Pi/dominocnt],0,Sin[2(i-1)Pi/dominocnt]},"EulerAngles"{If[i1,20.0`,0.`],-(360/(2Pi))2(i-1)Pi/dominocnt,0.`},"Parent"parent}];,{i,dominocnt}]](blue)createring["DominoBlue",prefabBlue];(black)createring["DominoBlack",prefabBlack];dominosbase=FindUnityGameObject["DominoBlack"];dominosbase[["Position"]]={0,0,25};(red)createring["DominoRed",prefabRed];dominosbase=FindUnityGameObject["DominoRed"];dominosbase[["Position"]]={0,0,50}(yellow)createring["DominoYellow",prefabYellow];dominosbase=FindUnityGameObject["DominoYellow"];dominosbase[["Position"]]={20,0,12}(green)createring["DominoGreen",prefabGreen];dominosbase=FindUnityGameObject["DominoGreen"];dominosbase[["Position"]]={20,0,37} In[]:= (MainCamera)camera=FindUnityComponent[All,"Camera"];camera[["Transform","Position"]]={8,50,20};camera[["Transform","EulerAngles"]]={90.`,0.`,90.`};camera[["ClearFlags"]]="SolidColor";camera[["BackgroundColor"]]=GrayLevel[1];
