[GIF] Perpetual 2 (Parallelograms with vertices traversing curves)

Posted 2 years ago

enter image description here

Inspired by the neat post from @Clayton Shonkwiler, I thought it would be cool to generalize his approach. I started by defining three families of curves:

(* A typical elliptic orbit. *)
ellipticOrbit[t_,a_:1,b_:1]:={a Cos[t],b Sin[t]};

(* The circle of radius b rolls on the outside of the circle of radius a. Setting a=b results in a cardioid, setting a=2b results in a nephroid. *)
epicycloidOrbit[t_,a_:1,b_:1]:={(a+b)Cos[t]-b Cos[(a/b+1)t],(a+b)Sin[t]-b Sin[(a/b+1)t]};

(* The circle of radius b rolls on the outside of the circle of radius a. The point P is at a distance c from the center of the circle of radius b. *)
epitrochoidOrbit[t_,a_:1,b_:.25,c_:.5]:={(a+b)Cos[t]-c Cos[(a/b+1)t],(a+b)Sin[t]-c Sin[(a/b+1)t]};

This next bit of code lays out k copies of a curve f around a circle of radius r:

compositeOrbits[t_,k_:4,f_:ellipticOrbit,r_:2,curvePars__]:=Table[
    r ReIm[Exp[2 I i Pi/k]]+f[t-(2 i Pi/k),##]&@@{curvePars},
    {i,0,k-1}
];

To generate an animation in your notebook evaluate:

animatedCurves[n_:12,k_:4,f_:ellipticOrbit,r_:1,curvePars___]:=Animate[
    Graphics[{
       Thickness[.005],
       Table[
         {FaceForm[{RGBColor["#E5F6C6"],Opacity[.2]}],
         EdgeForm[{RGBColor["#E5F6C6"],Thickness[.002]}],
         Polygon[compositeOrbits[t+i,k,f,r,curvePars]],
         RGBColor["#E5F6C6"],
         Point/@compositeOrbits[t+i,k,f,r,curvePars]},
         {i,0,2Pi(1-1/n),2Pi/n}
       ]},
       Background->RGBColor["#5D414D"],
       PlotRange->If[
         Length@{curvePars}==0,
         {{-4r,4r},{-4r,4r}},
         {{-1.5(r+Total[{curvePars}]),1.5(r+Total[{curvePars}])},{-1.5(r+Total[{curvePars}]),1.5(r+Total[{curvePars}])}}
       ],
       AspectRatio->Automatic
    ],
    {t,0,2Pi},
    AnimationRate->Pi/30
];

The first argument determines the number of polygons, the second argument determines the number of curves, the third argument sets the type of curve, the fourth determines their distance from the origin, and the remaining arguments are curve parameters.

To export this as a GIF use the following function. After the first argument the argument structure is the same as before. Remember to set your directory before exporting to make it easier to locate your GIF:

gifAnimatedCurves[name_String,n_:12,k_:4,f_:ellipticOrbit,r_:1,curvePars___]:=Export[
    name<>".gif",
    Table[
       Graphics[{
         Thickness[.005],
          Table[
              {FaceForm[{RGBColor["#E5F6C6"],Opacity[.2]}],
              EdgeForm[{RGBColor["#E5F6C6"],Thickness[.002]}],
              Polygon[compositeOrbits[t+i,k,f,r,curvePars]],
              RGBColor["#E5F6C6"],
              Point/@compositeOrbits[t+i,k,f,r,curvePars]},
              {i,0,2Pi(1-1/n),2Pi/n}
          ]},
         Background->RGBColor["#5D414D"],
         PlotRange->If[
          Length@{curvePars}==0,
          {{-4r,4r},{-4r,4r}},
          {{-1.5(r+Total[{curvePars}]),1.5(r+Total[{curvePars}])},{-1.5(r+Total[{curvePars}]),1.5(r+Total[{curvePars}])}}
         ],
         AspectRatio->Automatic
       ],
       {t,0,4Pi/n,.05}
    ]
];

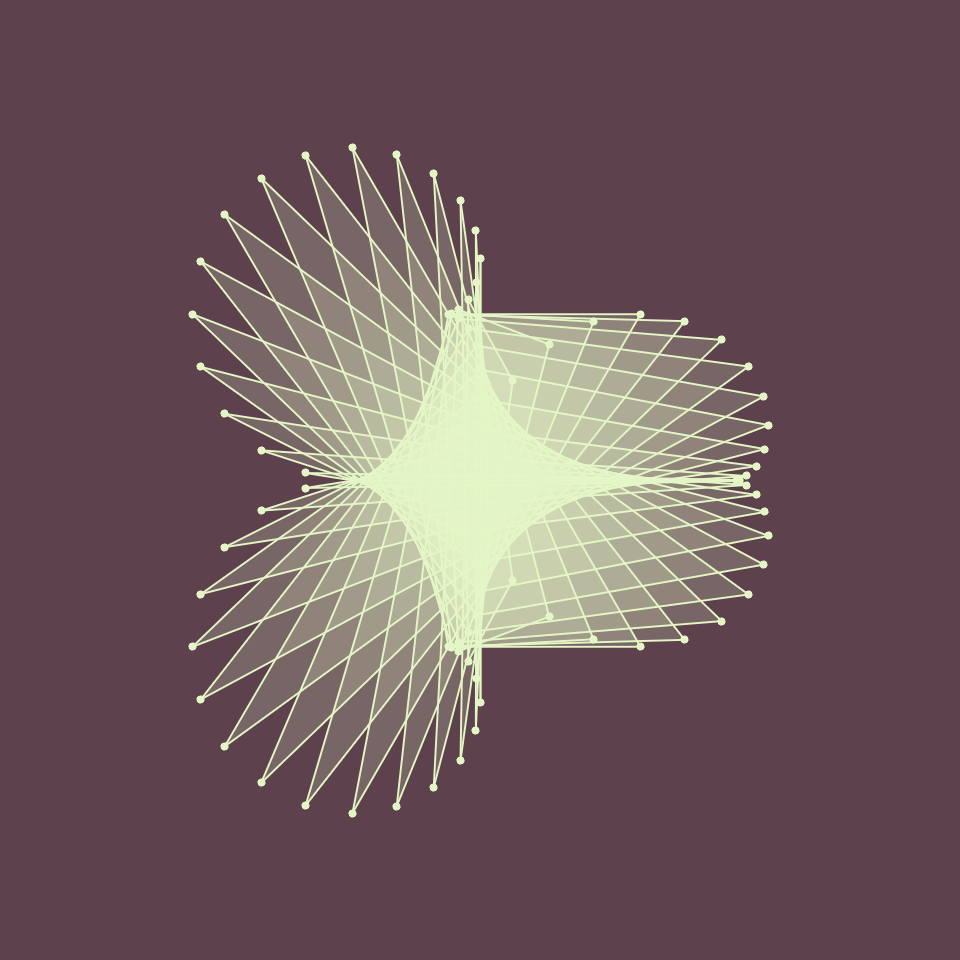

For example, in the GIF at the top of this post each vertex of a triangle traverses a different cardioid. The animation was generated by:

gifAnimatedCurves["animation", 12, 3, epicycloidOrbit, 1.5, .5, 0.5]

With this approach any 2D parametric curve, with any number of parameters, can be used to generate animations of this type.

POSTED BY: Jack Heimrath
3 Replies

If you've made it this far and like this kind of animation, definitely check out @Clayton Shonkwiler's other posts!

POSTED BY: Jack Heimrath

enter image description here -- you have earned Featured Contributor Badge enter image description here Your exceptional post has been selected for our editorial column Staff Picks http://wolfr.am/StaffPicks and Your Profile is now distinguished by a Featured Contributor Badge and is displayed on the Featured Contributor Board. Thank you!

POSTED BY: Moderation Team

A neat side effect of the GIF having a period of 2Pi/n is that the size of the GIF file will be more or less proportional to 1/n, at least for small values of n. This means you can generate quite "complex" animations with a tiny memory footprint.

POSTED BY: Jack Heimrath
