Issue with ticks of axis display in Plot[ ]?

Tamara Dejardin

Posted 3 years ago

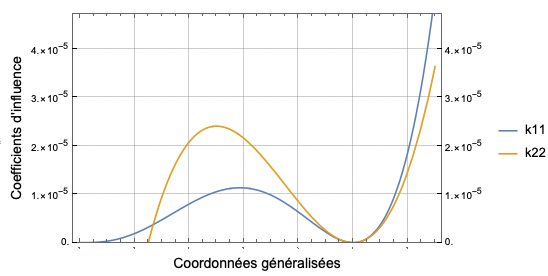

Hello everyone! I'm new to Mathematica, and I have trouble with the display of the following plot: p1 = Plot[{(9.64* x^3 (4 - 9 x + 6 x^2 - x^3))/10^5, ( 9.64* (4 x^3 - 9 x^2 + 6 x - 1))/10^5}, {x, 0, 1.3}, PlotRange -> {0, 4.71710^-5}, PlotLegends -> {k11, k22}, Frame -> True, FrameLabel -> {Style["Coordonnées généralisées", Black, 14], Style["Coefficients d'influence", Black, 14]}, FrameTicks -> {Automatic, {#, ScientificForm@#} & /@ Range[0., 4.710^-5, 10^-5.]}, FrameTicksStyle -> {Black, 1}, GridLines -> Automatic] Because I'm not yet familiar with Mathematica, I picked up from various sources bits of code to plot the function. My main concern was displaying the y-axis using a scientific notation, which worked. However, I realise that the x-axis doesn't display any ticks (at least, it doesn't show for me). I have tried for a few days to sort it out, without any success. I am really sorry in advance if the solution to my issue is trivial. As I said, I'm not sure I understand every aspect of the code. Thanks a lot! Attachments: graphk.png

POSTED BY: Tamara Dejardin

2 Replies

Sort By:

Henrik Schachner

Henrik Schachner, Radiation Therapy Center, Weilheim, Germany

Posted 3 years ago

Tamara, the problem is caused by the option `FrameTicksStyle -> {Black, 1}`, i.e. try it without this option: p1 = Plot[{(9.64x^3 (4 - 9 x + 6 x^2 - x^3))/10^5, (9.64(4 x^3 - 9 x^2 + 6 x - 1))/10^5}, {x, 0, 1.3}, PlotRange -> {0, 4.71710^-5}, PlotLegends -> {"k11", "k22"}, Frame -> True, FrameLabel -> {Style["Coordonnées généralisées", Black, 14], Style["Coefficients d'influence", Black, 14]}, FrameTicks -> {Automatic, {#, ScientificForm@#} & /@ Range[0., 4.710^-5, 10^-5.]}, GridLines -> Automatic] Addendum: OK, if you really need black frameticks, then use e.g.: `FrameTicksStyle -> {Black, 10}`

Tamara,

the problem is caused by the option FrameTicksStyle -> {Black, 1}, i.e. try it without this option:

p1 = Plot[{(9.64*x^3 (4 - 9 x + 6 x^2 - x^3))/10^5, (9.64*(4 x^3 - 9 x^2 + 6 x - 1))/10^5}, {x, 0, 1.3},
  PlotRange -> {0, 4.717*10^-5}, PlotLegends -> {"k11", "k22"},
  Frame -> True, FrameLabel -> {Style["Coordonnées généralisées", Black, 14],
    Style["Coefficients d'influence", Black, 14]},
  FrameTicks -> {Automatic, {#, ScientificForm@#} & /@ Range[0., 4.7*10^-5, 10^-5.]},
  GridLines -> Automatic]

Addendum:

OK, if you really need black frameticks, then use e.g.: FrameTicksStyle -> {Black, 10}

POSTED BY: Henrik Schachner

Tamara Dejardin

Posted 3 years ago

Thank you so very much, it works perfectly now. I have indeed just realised, thanks to your help, that this was an issue with the font size. I will remember that!

POSTED BY: Tamara Dejardin
