Conversion to a system of second order ODEs then first order ODEs

Posted 17 days ago
281 Views
|
2 Replies
|
1 Total Likes
|

Dear Colleagues,

I have used Andrew Moylan's most excellent blog on the n-link pendulum on a cart as inspiration for my own notebook to derive the Equations of Motion (EoMs) for the pendulum. I have included viscous and friction in the revolute joints and my notation is slightly different than Andrew's but the structure of the EoMs is similar. For example, for a two-link pendulum I get.

{Subscript[b, 0] Derivative[1][Subscript[q, 0]][t] +
   Subscript[m, 0] (Subscript[q, 0]^\[Prime]\[Prime])[t] +
   Subscript[m, 1] (Subscript[q, 0]^\[Prime]\[Prime])[t] +
   Subscript[m, 2] (Subscript[q, 0]^\[Prime]\[Prime])[t] +
   1/2 Cos[Subscript[q, 2][t]] Subscript[l, 2] Subscript[m,
    2] (Subscript[q, 2]^\[Prime]\[Prime])[t] ==
  u[t] + 1/2 (Sin[Subscript[q, 2][t]] Subscript[l, 2] Subscript[m, 2]
        Derivative[1][Subscript[q, 2]][t]^2 +
      Subscript[l,
       1] (Subscript[m, 1] +
         2 Subscript[m,
          2]) (Sin[Subscript[q, 1][t]] Derivative[1][Subscript[q, 1]][
           t]^2 - Cos[Subscript[q, 1][t]] (Subscript[q,
           1]^\[Prime]\[Prime])[t])), \!\(
\*SubsuperscriptBox[\(l\), \(1\), \(2\)]\ \((
\*SubscriptBox[\(m\), \(1\)] + 4\
\*SubscriptBox[\(m\), \(2\)])\)\ \(\*
SuperscriptBox[
SubscriptBox["q", "1"], "\[Prime]\[Prime]",
MultilineFunction->None][t]\)\) +
   4 (Subscript[k, 1] Subscript[q, 1][t] +
      Subscript[k, 2] (Subscript[q, 1][t] - Subscript[q, 2][t]) +
      Subscript[b, 1] Derivative[1][Subscript[q, 1]][t] +
      Subscript[moi, 1] (Subscript[q, 1]^\[Prime]\[Prime])[t]) +
   2 Subscript[l,
    1] (Subscript[m,
       1] (-g Sin[Subscript[q, 1][t]] +
         Cos[Subscript[q, 1][t]] (Subscript[q, 0]^\[Prime]\[Prime])[
           t]) + Subscript[m,
       2] (-2 g Sin[Subscript[q, 1][t]] +
         2 Cos[Subscript[q, 1][t]] (Subscript[q, 0]^\[Prime]\[Prime])[
           t] + Subscript[l,
          2] (Sin[Subscript[q, 1][t] - Subscript[q, 2][t]] Derivative[
              1][Subscript[q, 2]][t]^2 +
            Cos[Subscript[q, 1][t] - Subscript[q, 2][t]] (Subscript[q,
               2]^\[Prime]\[Prime])[t]))) == 0,
 Subscript[k, 2] (-Subscript[q, 1][t] + Subscript[q, 2][t]) +
   Subscript[b, 2] Derivative[1][Subscript[q, 2]][t] + 1/4 (\!\(
\*SubsuperscriptBox[\(l\), \(2\), \(2\)]\
\*SubscriptBox[\(m\), \(2\)]\) + 4 Subscript[moi, 2]) (Subscript[q,
     2]^\[Prime]\[Prime])[t] ==
  1/2 Subscript[l, 2] Subscript[m,
   2] (g Sin[Subscript[q, 2][t]] -
     Cos[Subscript[q, 2][t]] (Subscript[q, 0]^\[Prime]\[Prime])[t] +
     Subscript[l,
      1] (Sin[Subscript[q, 1][t] - Subscript[q, 2][t]] Derivative[1][
          Subscript[q, 1]][t]^2 -
        Cos[Subscript[q, 1][t] - Subscript[q, 2][t]] (Subscript[q,
          1]^\[Prime]\[Prime])[t]))}

where q0 is the position of the cart and q1 and q2 are the angles of the links measured from the positive vertical.

I have a requirement to cast the EoMs in a form that is called, in some texts, State-Dependent Coefficient form. Right now I am doing this by hand. In the first step I convert the EoMs above to a system of coupled second order ODEs of the form

$ M(\mathbf{q}) \ddot{\mathbf{q}} + C(\mathbf{q}, \dot{\mathbf{q}}) \dot{\mathbf{q}} + K(\mathbf{q}) \mathbf{q} = 0. $

In the second step I use standard matrix manipulation to get to the state space form of the EoMs

$ \dot{\mathbf{x}} = A(\mathbf{x}, t) \mathbf{x}, $

where the state vector is $\mathbf{x}=(\mathbf{q},\dot{\mathbf{q}})^\text{T}$

While this is time consuming but manageable for a two-link pendulum it becomes quite tedious and prone to errors for three or more links.

I have tried to find a way to program the conversion from the EoMs generated with Mathematica to the second order form using Simplify[] with assumptions but I have made no progress. Are there any documented methods for symbolic manipulation to convert the EoMs to a vector equation? I'm sure folks in robotics have figured this out already.

Thank you!

Bogdan

2 Replies

Bogdan,

I have two suggestions:

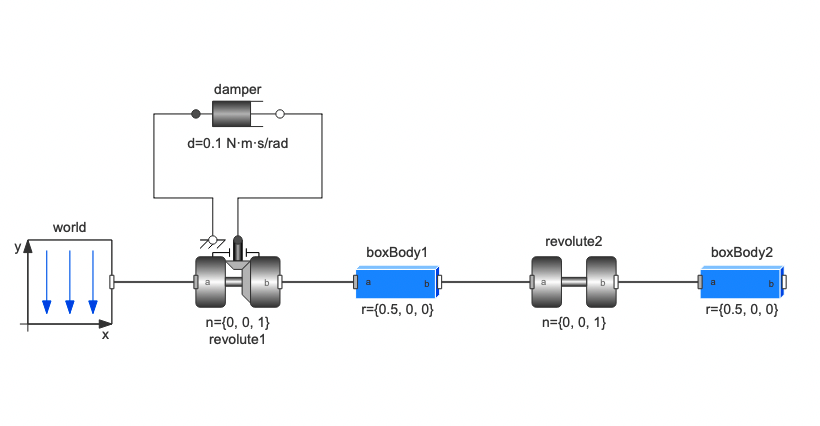

First, If your goal is to simulate and explore the dynamics and control of an inverted N link pendulum, it is significantly easier if you use Wolfram System Modeler (either from within Mathematica or using it stand-alone). In SystemModeler, this double pendulum is already modeled as an example using six built-in components and connecting them.

enter image description here

You can easily invert the pendulum and add a cart (There are some examples of a single link inverted pendulum as well). This would give you a simulation and 3D animation of the links. Additionally, you can export the equations of motion to Mathematica for manipulation. (including a linearized state space model)

Second, In the blog post, the author linearizes the model around equilibrium and creates his model from StateSpaceModel[]. He also could have generated the nonlinear model with NonlinearStateSpaceModel[]. Why can't you use NonlinearStateSpaceModel or StateSpaceModel since you have the same equations?

Regards,

Neil

Posted 13 days ago

Neil,

Thank you for your suggestions. I should have opened my question with details of the application.

I am working on a few control and estimation algorithms.The system is highly dynamical and I have to operate away from equilibrium so linearization is a last resort. One of the nonlinear controls uses the solution of the State Dependent Riccati Equation (SDRE) that requires the dynamics of the system to be cast in the State-Dependent Coefficients (SDC) form. $ \dot{\mathbf{x}}=A(\mathbf{x}) \mathbf{x}+B(\mathbf{x}) \mathbf{u} $ I have to verify all sort of requirements on the $A(\mathbf{x})$ and $B(\mathbf{x})$ matrices and I would like to do that by hand or symbolically.

Moreover, the control designer has quite a bit of freedom in converting the nonlinear system state function to the SDC form, i.e., $f(\mathbf{x} = A(\mathbf{x}) \mathbf{x}$. Some papers suggest that this factorization can be somewhat optimized and I want to put that to test.

For the estimator I would like to have a "truth model" of the dynamics so I can determine on-line the "goodness" of the estimation.

Bogdan
