Hi Shivank
The intersection points have to be determined first. Here is one way (probably not the best)
(* All pairs of expressions *)
pairs = Subsets[M, {2}]
(* Convert to equations *)
eqns = Equal @@@ pairs
(* Find solutions *)
soln = Solve[Rationalize@#, c, Assumptions -> c > 0] & /@ eqns // Flatten
(* x and y coordinate of solutions *)
y = MapThread[ReplaceAll, {pairs, soln}] // Flatten // Round[#, .001] & // DeleteDuplicates
x = soln // Values
(* Intersection points *)
intersections = Transpose[{x, y}]

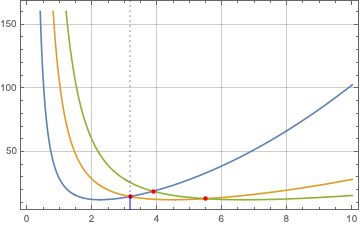

Then construct an Epilog
with the type of lines you want e.g.
epilog = {Red, PointSize[Medium], Point[intersections], Blue,
Line[{{x[[1]], 0}, {x[[1]], y[[1]]}}], Dotted,
Line[{{x[[1]], y[[1]]}, {x[[1]], 180}}]}
Plot[M, {c, 0, 10},
GridLines -> Automatic,
Frame -> True,
Epilog -> epilog]
