GraphicsGrid lost Callout featues with ListPointPlot3D?

Zhenyu Zeng
Posted 3 years ago

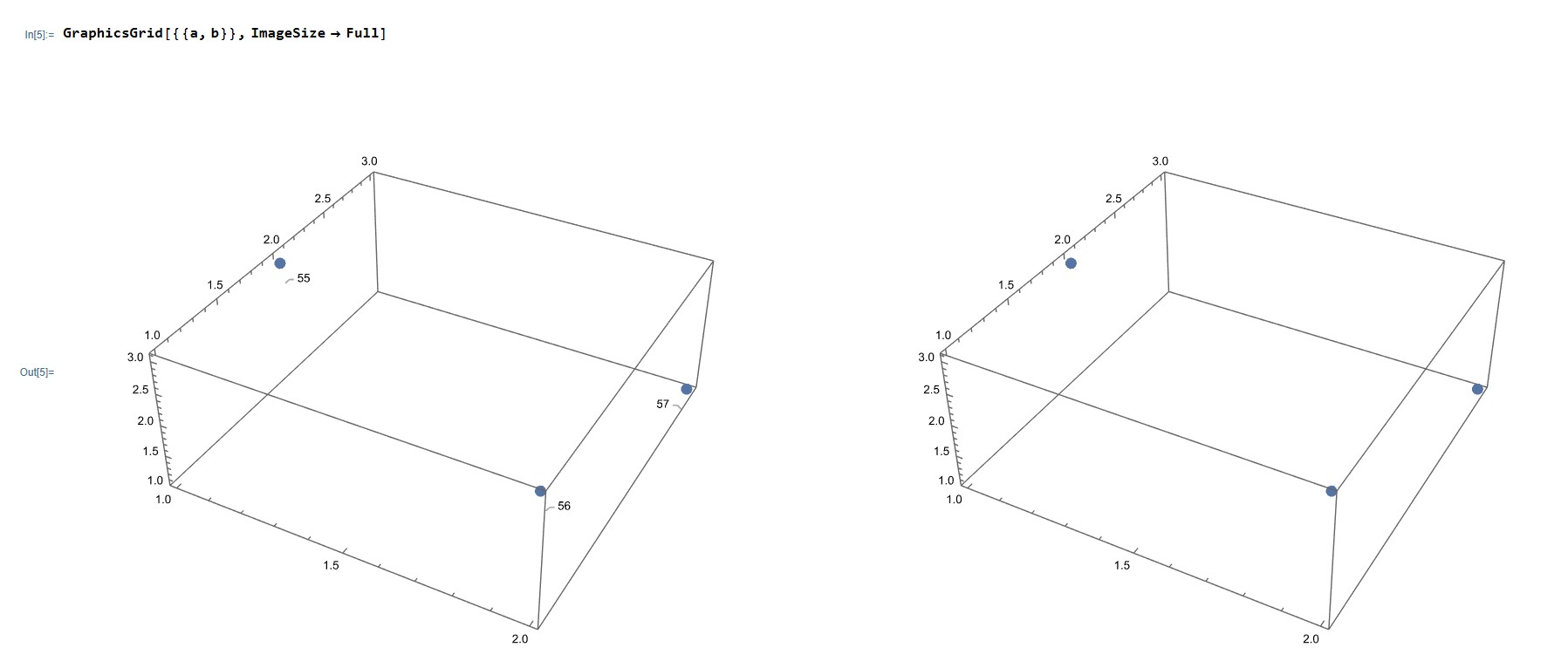

Hello, I find GraphicsGrid can only show the first picture's callout. May code

a = ListPointPlot3D[{{1, 2, 3}, {2, 1, 3}, {2, 3, 1}} -> {55, 56, 57},
   LabelingFunction -> Callout];b = ListPointPlot3D[{{1, 2, 3}, {2, 1, 3}, {2, 3, 1}} -> {55, 56, 57},
   LabelingFunction -> Callout];GraphicsGrid[{{a, b}}, ImageSize -> Full]

The second picture lost callouts. enter image description here
POSTED BY: Zhenyu Zeng
5 Replies
Sort By:
Rohit Namjoshi
Rohit Namjoshi
Posted 3 years ago

GraphicsGrid seems to have all kinds of quirky behavior. In addition to the missing callouts, if you drag a corner to increase the size, the callouts get clipped and eventually just vanish.

Unless you really need a Graphics result use Grid instead. Callouts are displayed and manual resizing does not cause callouts to vanish.

Grid[{{a, b}}]
POSTED BY: Rohit Namjoshi
Zhenyu Zeng
Zhenyu Zeng
Posted 3 years ago

Ìf use Grid instead, the PlotLabel of each graphic will be in the too high position.

POSTED BY: Zhenyu Zeng
Zhenyu Zeng
Zhenyu Zeng
Posted 3 years ago

The text of the file exported by Grid can not be copied in PDF format, so there is still a need to use GraphicsGrid.
POSTED BY: Zhenyu Zeng
Rohit Namjoshi
Rohit Namjoshi
Posted 3 years ago

the PlotLabel of each graphic will be in the too high position

Please provide an example

The text of the file exported by Grid can not be copied in PDF format

What is wrong with this?

Export["grid.pdf", Grid[{{a, b}}]]
POSTED BY: Rohit Namjoshi
Zhenyu Zeng
Zhenyu Zeng
Posted 3 years ago

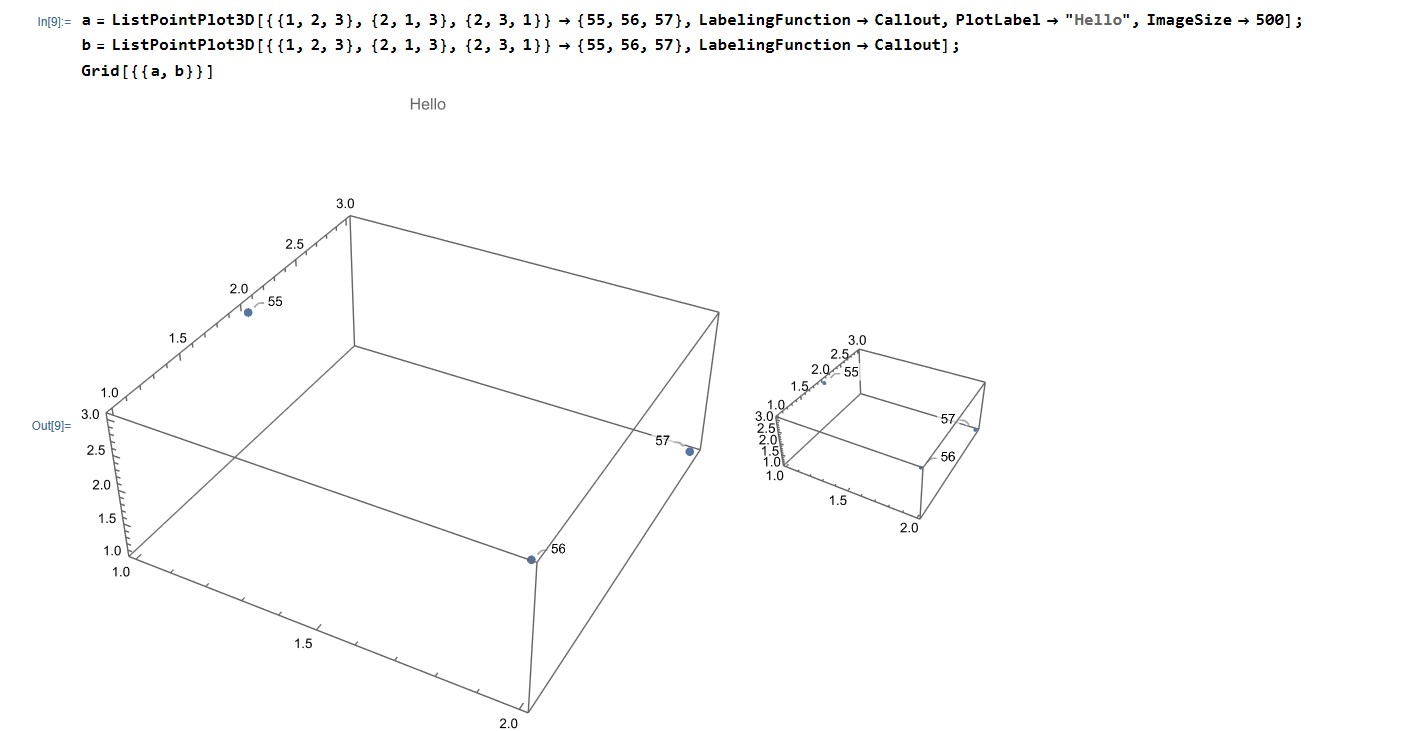

a = ListPointPlot3D[{{1, 2, 3}, {2, 1, 3}, {2, 3, 1}} -> {55, 56, 57}, LabelingFunction -> Callout, PlotLabel -> "Hello", ImageSize -> 500]; b = ListPointPlot3D[{{1, 2, 3}, {2, 1, 3}, {2, 3, 1}} -> {55, 56, 57}, LabelingFunction -> Callout]; Grid[{{a, b}}]

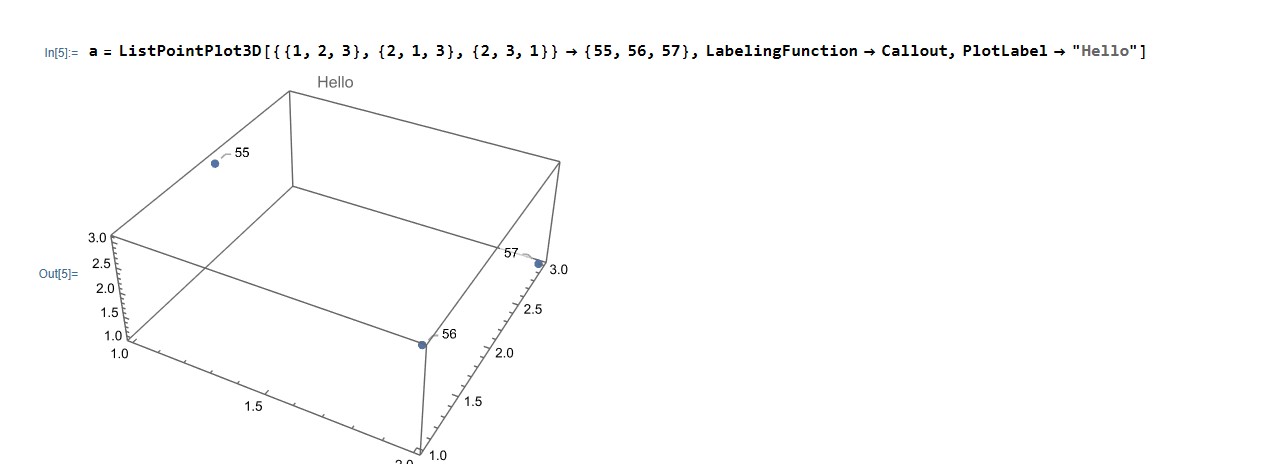

Then you export graphics to pdf, you will see the text in it can't be copied. enter image description here

enter image description here
POSTED BY: Zhenyu Zeng
