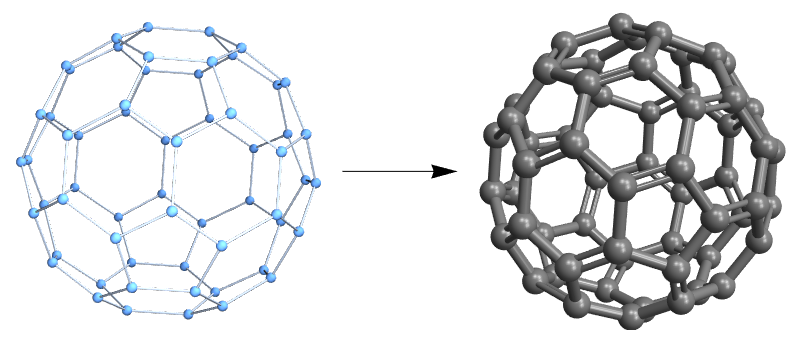

Creating fullerene molecules using BuckyballGraph

Posted 1 year ago

enter image description here

POSTED BY: J. M.
2 Replies

@J.M. - this is a great application of FindIndependentEdgeSet.

It's interesting to note that you can convert a BuckyballGraph to a molecule using the XYZ importer,

In[109]:= bucky = BuckyballGraph[];
xyzString = StringJoin[IntegerString[VertexCount[bucky]], "\n\n",
   ExportString[Prepend[#, "C"] & /@ GraphEmbedding[bucky], "Table"]
   ];
ImportString[xyzString, "XYZ"] // OutputForm

Out[111]//OutputForm= Molecule[<C60>]

In[112]:= Counts[%["BondType"]]

Out[112]= <|"Aromatic" -> 90|>
POSTED BY: Jason Biggs

enter image description here -- you have earned Featured Contributor Badge enter image description here Your exceptional post has been selected for our editorial column Staff Picks http://wolfr.am/StaffPicks and Your Profile is now distinguished by a Featured Contributor Badge and is displayed on the Featured Contributor Board. Thank you!

POSTED BY: Moderation Team
