How to design a J-shaped bend waveguide?

Kiran Warraich
Posted 1 year ago

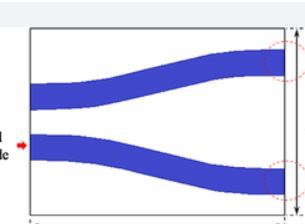

Hi, Can anyone please tell me how to design a bend W.G around 5 degree in Mathematica with a length of 1mm and width of 2 micron. I designed the straight ones but now I am not sure about this particular design. Can anyone please guide me a little. Thank you.

J-shaped bend waveguides
POSTED BY: Kiran Warraich
1 Reply
Sort By:

Welcome to Wolfram Community!
Please make sure you know the rules: https://wolfr.am/READ-1ST
Please include your previous trials in terms of Wolfram Language code, so that it is easier for other members to help you.
Please check the rules page above for appropriate methods to include your code.
POSTED BY: Moderation Team
