Bert Aerts

NSolve gives correct solution after splitting real and imaginary equations

Bert Aerts
Posted 2 months ago
412 Views
|
1 Reply
|
0 Total Likes
|

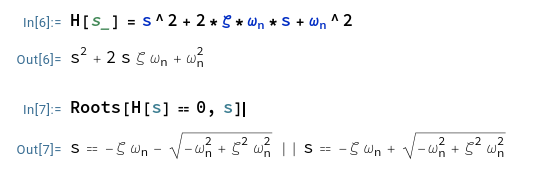

I have a second order continuous time system transfer function denominator with as roots: enter image description here

Now I want to go to a discrete time system with the equation:

enter image description here

In fact I want to solve following complex equation, making z equal to the pole of a discrete time system with sampling time 0.01 sec: enter image description here

But Mathematica 13.2 gives a huge answer depending on a constant c1.

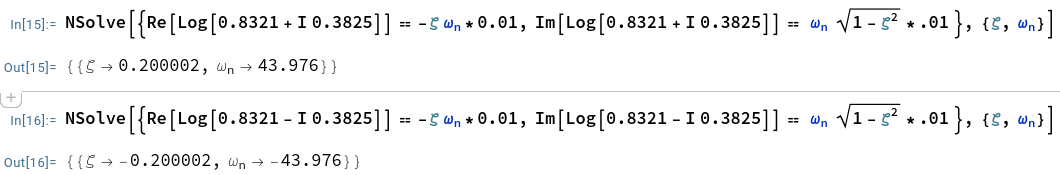

When I help Mathematica as follows, by splitting real and imaginary equations, it does find the correct solution: enter image description here

How can I adapt the first formula?
POSTED BY: Bert Aerts
1 Reply
Sort By:
Bert Aerts
Bert Aerts
Posted 2 months ago

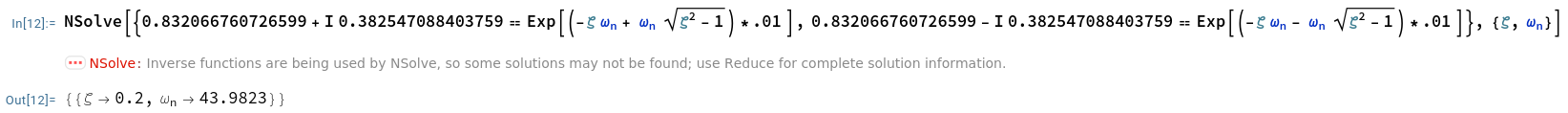

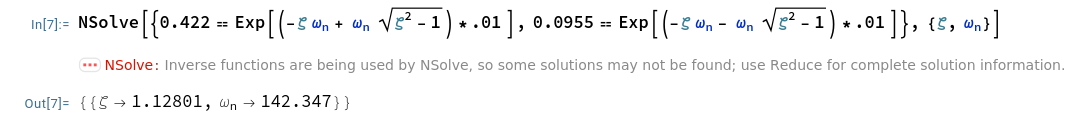

I solved it by giving 2 complex equations for 2 unknowns zeta and omegaN, as there are 2 complex conjugate poles. And now Mathematica immediately finds the solution. enter image description here This method also works for 2 real poles: enter image description here Full Mathematica 13.2 notebook:

POSTED BY: Bert Aerts
