BarSpacing in BoxWhiskerChart broken in version 10

Karsten 7.
Posted 9 years ago
3628 Views
|
0 Replies
|
1 Total Likes
|

In Mma v9 the spacing between the BoxWhisker and the frame can be controlled by BarSpacing. For example:

data = RandomReal[50, 200];
BoxWhiskerChart[data, Frame -> {{False, False}, {True, True}}, BarSpacing -> 0, BarOrigin -> Left, AspectRatio -> 2/3]

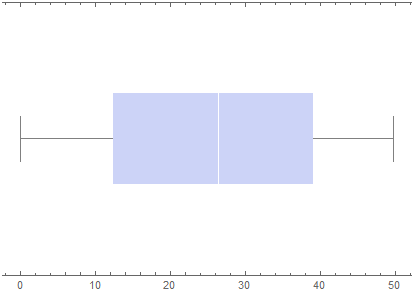

gives the following output in Mma 9:

inMma9

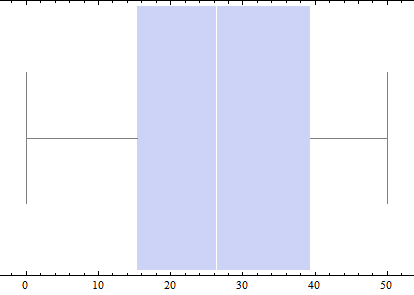

But in Mma 10 (even after adding "PlotTheme -> None") the result is:

enter image description here

Note that this undocumented change in behavior also ruines the aspect ratio.

Is this a bug or a fix in Mma 10 and what other ways are there to alter the distance between the bar and the frame?
POSTED BY: Karsten 7.
